SITRANS Continuous Level Measurement
Radar Level Measurement
Real intelligence built on experience! It’s time to ask: what does a level device’s experience offer your operations? What makes your job easier? Manage materials better? Optimize inventory ordering? And, increase efficiency and save you money? Our radar transmitters bring answers to these challenges, based on signal processing experience gained from over a million level instruments worldwide.
LR100 Series
LR500 Series
Send Enquiry
Technical Comparison
SITRANS LR100 Series | SITRANS LR500 Series | |
---|---|---|
Process Connection Type | Thread | Thread, flange, aimer flange |
Wetted materials | PVDF | Peek, 316L stainless, C22 alloy, PTFE, PP |
Measuring range | 30m | 120m |
Process temperature | -40°C to +80°C | -196°C to 250°C |
Process pressure | vacuum to 3 bar | vacuum to 40 bar |
Second Line of defence | N/A | Available |
Air purge connection | N/A | Available |
Advanced Diagnostics incl logging | N/A | Included |
Back to top
SITRANS LR100 Series
For level measurement of liquids or solids. Featuring Bluetooth wireless technology for hassle-free level measurement. Featuring 80 GHz and range up to 30 m (98 ft).

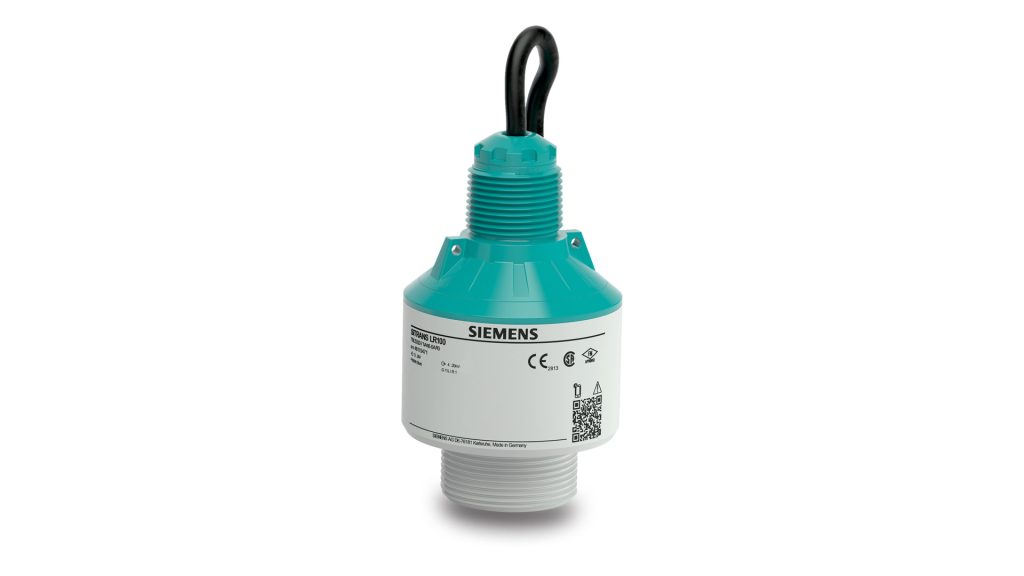

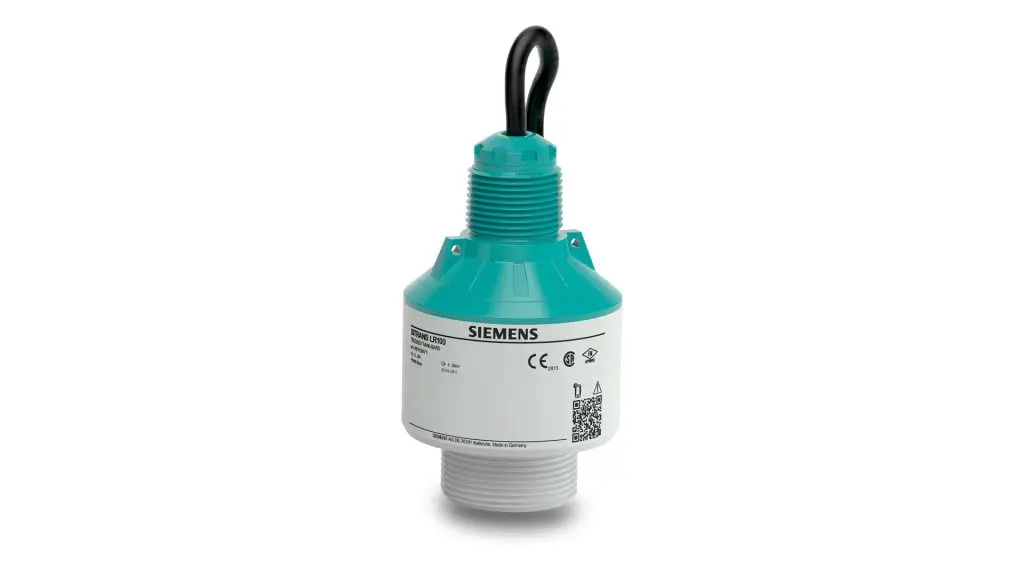

SITRANS LR100
For short distances with cable: basic 4-20 mA measurement to 8 m with cable

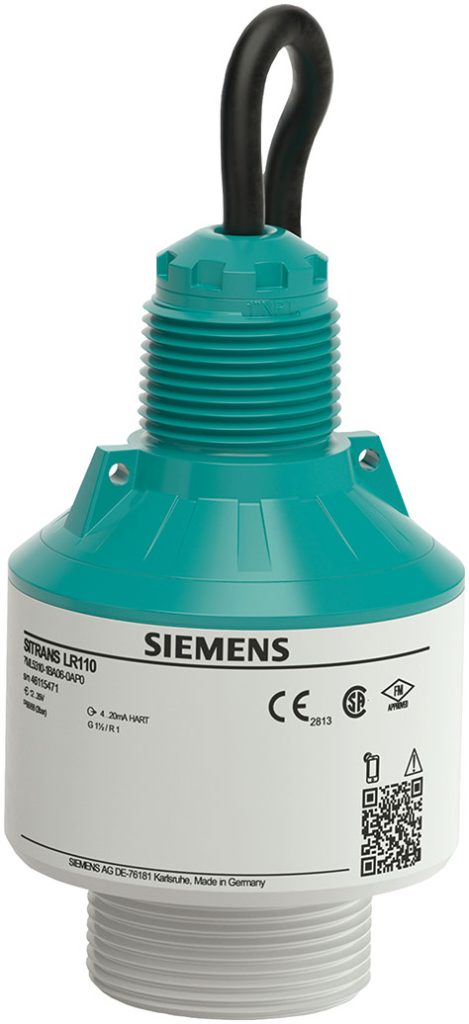

SITRANS LR110
The first choice: with communications, hazardous approvals options, and range to 15m

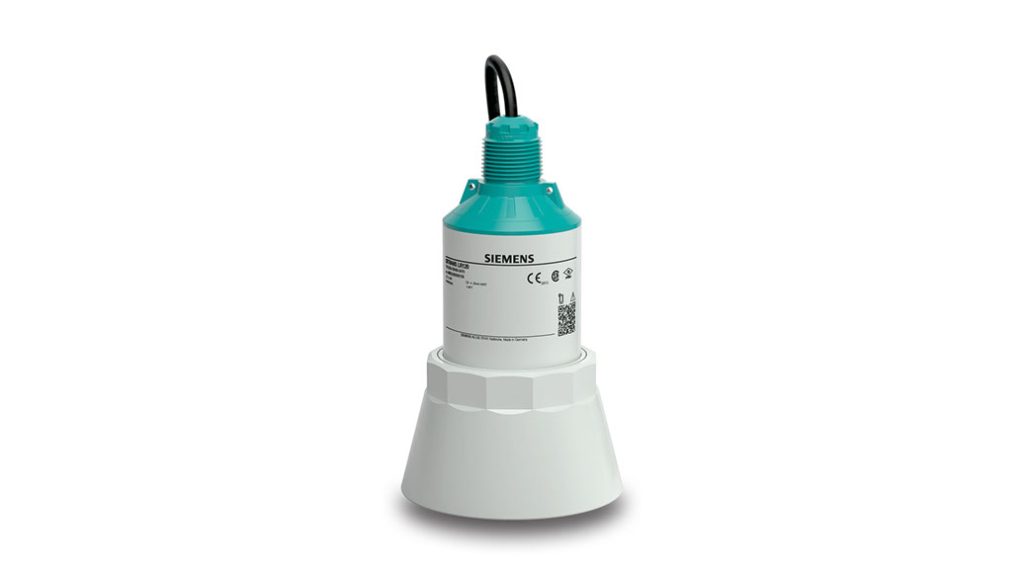

SITRANS LR120
For flooding conditions: with communications, longest range to 30 m, and optional submergence shield for flooding protection
SITRANS LR140
For short distances: basic measurements to 8 m with terminal connection

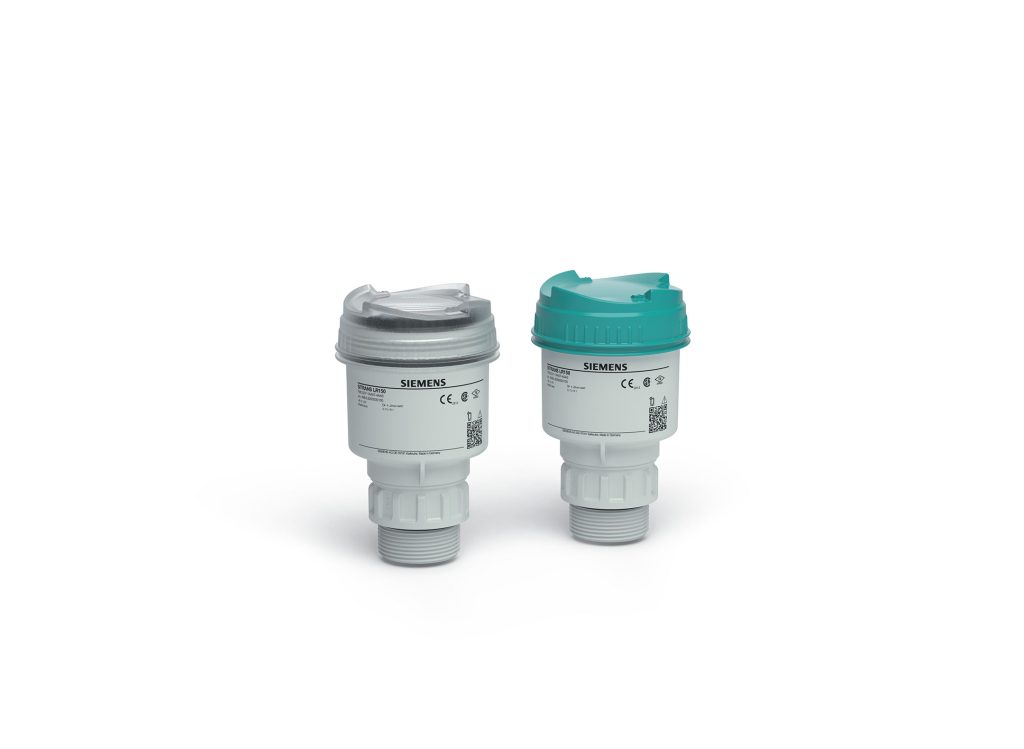

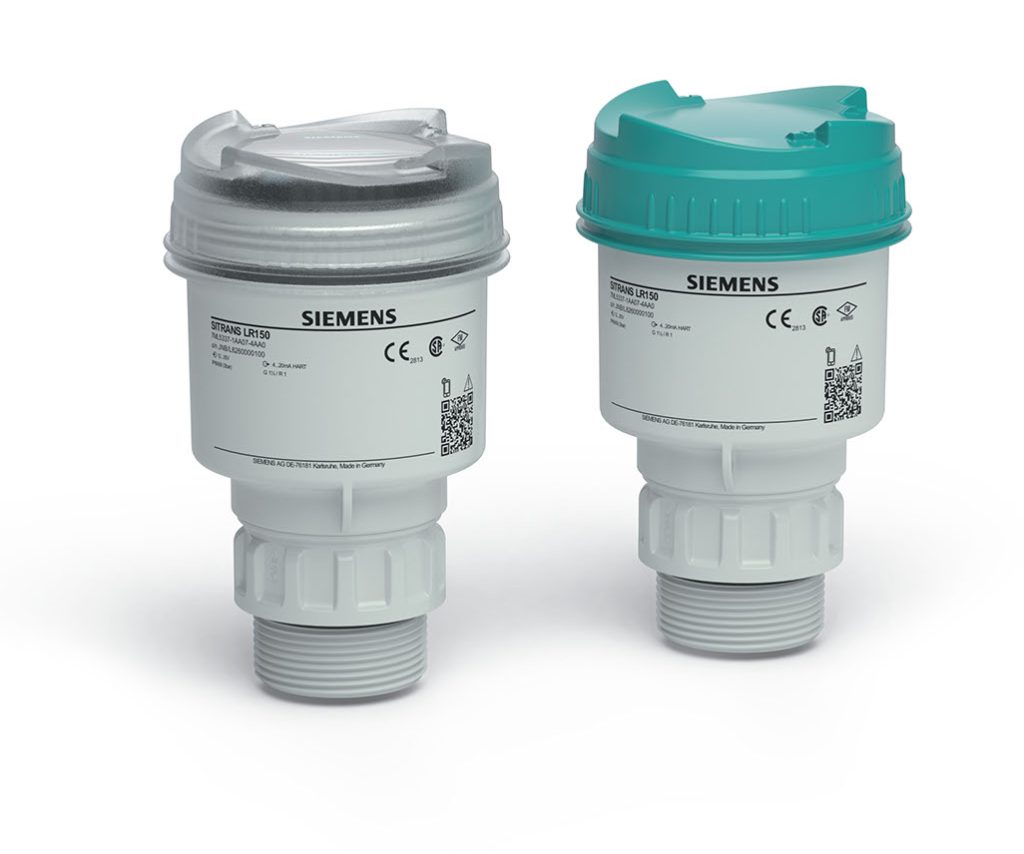

SITRANS LR150
When you need a display: with HART communication, hazardous approvals, local HMI option, and range to 15 m
Key Features
- Easy Bluetooth® wireless technology for easy and quick setup with Siemens SITRANS mobile IQ App
- 80 GHz narrow beam and small size allows for the easiest installation and commissioning
- Custom radar microchip means signal killer conditions like condensation, buildup or fluffy solids are no match for the extreme sensitivity of the microchip, the weakest signals are still detected
- Zero blanking zone allows measurement range right up to the sensor and with an accuracy of 2 mm you can get rid of costly manual measurement methods
- Digitalization and Industry 4.0 ready with HART 7.0 or optional Modbus RTU for intelligent, value adding data locally or to the cloud
Supplementary Components are designed to work with most types of instrumentation to provide enhanced functionality such as remote displays and remote monitoring solutions. Please find more information here.
https://www.youtube.com/watch?v=Qdi1XFsxLwE
The SITRANS LR100 Advantage
Hassle-free
SITRANS mobile IQ app uses Bluetooth wireless technology eliminating the need of special commissioning tools. Compact size and narrow beam makes installation easy for level measurement of liquids, slurries or solids.
Performance when you need it
Signal-killer conditions like condensation, buildup or solids are no match for the extreme sensitivity of this transmitter with its custom-designed radar chip. The weakest signals are still detected.
Maximise inventory assets
Zero blanking distance means the measurement range is right up to the sensor. Combined with an accuracy of 2mm ensures confidence in inventory levels for your operation success.
Optimise process for better business
Ready for Digitalisation and with HART 7.0 or optional Modbus RTU. Integrate intelligent, value-adding data locally or to the cloud.
Trust the proven
Over 170 years of Siemens innovative engineering experience and millions of installed instruments in the field.
https://www.youtube.com/watch?v=0axjpGEPvC8
Introducing SITRANS LR100 series of radar transmitters
Does your application have condensation? No problem.
Setup of the SITRANS LR100 is easy
Ignore obstacles in your application
Technical Comparison
SITRANS LR100 | SITRANS LR110 | SITRANS LR120 | SITRANS LR140 | SITRANS LR150 | |
---|---|---|---|---|---|
7ML530 | 7ML531 | 7ML532 | 7ML533 | 7ML534 | |
Basic 4-20 mA measurement to 8 m with cable |
With communications, hazardous approvals options, and range to 15 m | With communications, longest range to 30 m, and optional submergence shield for flooding protection |
Basic measurement to 8m with terminal connection | With HART communication, hazardous approvals, local HMI option, and range to 15m | |
Measuring pinciple | 78-82 GHz, FMCW | 78-82 GHz, FMCW | 78-82 GHz, FMCW | 78-82 GHz, FMCW | 78-82 GHz, FMCW |
Measuring range | 8 m (26 ft) | 15 m (49 ft) | 30 m (98 ft) | 8 m (26 ft) | 15 m (49 ft) |
Process connections | PVDF Thread 1½” and 1″ | PVDF Thread 1½” and 1″ | PVDF Thread 1″ | PVDF Thread 1½” | PVDF Thread 1½” |
Process pressure | -1 to 3 bar | -1 to 3 bar | -1 to 3 bar | -1 to 3 bar | -1 to 3 bar |
Process temperature | -40 to 60 °C (-40 to 140 °F) | -40 to 80˚C (-40 to 176˚F) | -40 to 80˚C (-40 to 176˚F) | -40 to 60 °C (-40 to 140 °F) | -40 to 80˚C (-40 to 176˚F) |
Accuracy | 5 mm (0.2″) | 2 mm (0.08″) | 2 mm (0.08″) | 5 mm (0.2″) | 2 mm (0.08″) |
Beam Angle | 8° | 8° | 4° | 8° | 8° |
mA/Loop, Communications | 2-wire, 4 to 20 mA | 2-wire, 4 to 20 mA/ HART or 4-wire, Modbus |
2-wire, 4 to 20 mA/ HART or 4-wire, Modbus |
2-wire, 4 to 20 mA | 2-wire, 4 to 20 mA |
Ex approvals | no | Gas and dust | Gas and dust | no | Gas |
Optional HMI | no | no | no | no | Yes, with Quick Start Wizard and diagnostic support |
Bluetooth | yes | yes | yes | yes | yes |
Back to top
SITRANS LR500 Series
SITRANS LR500 series are 80 GHz radar level transmitters for continuous monitoring of liquids, slurries, and solids in storage and process vessels.

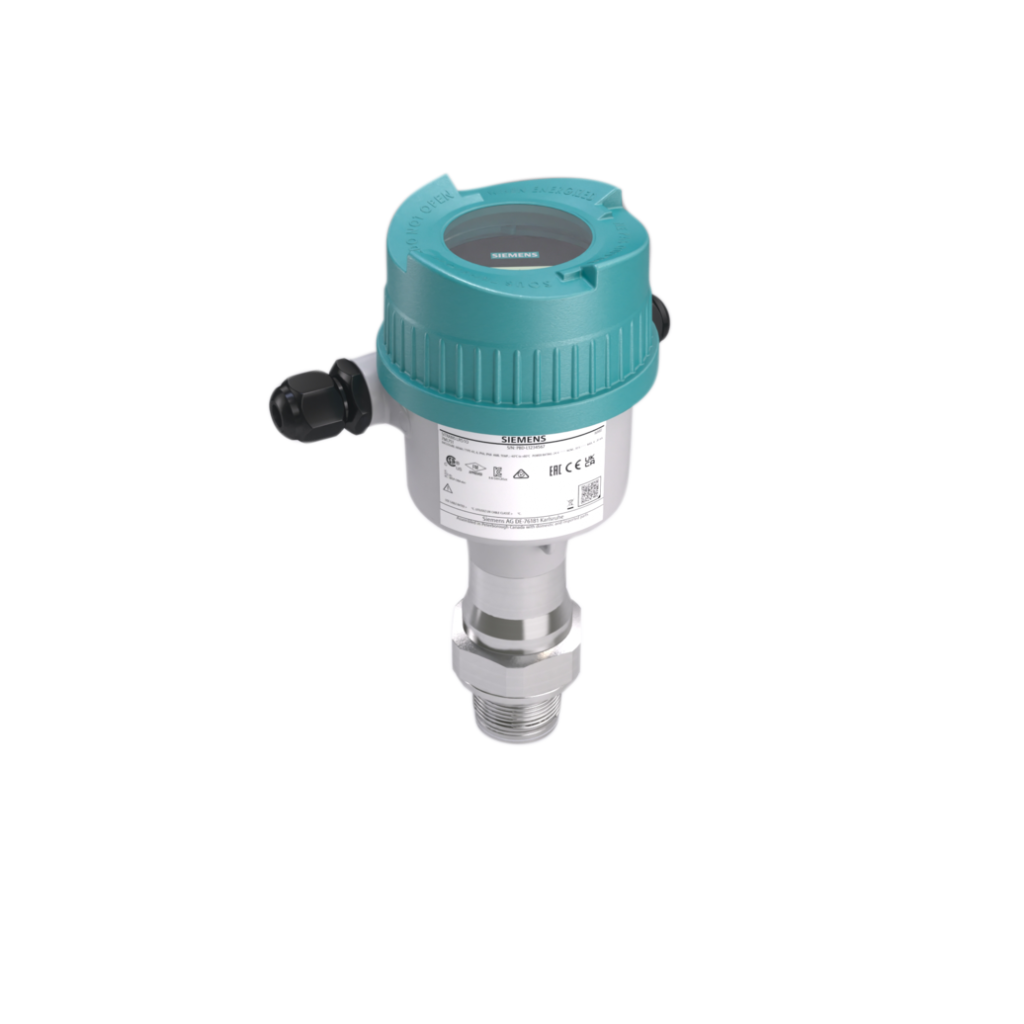

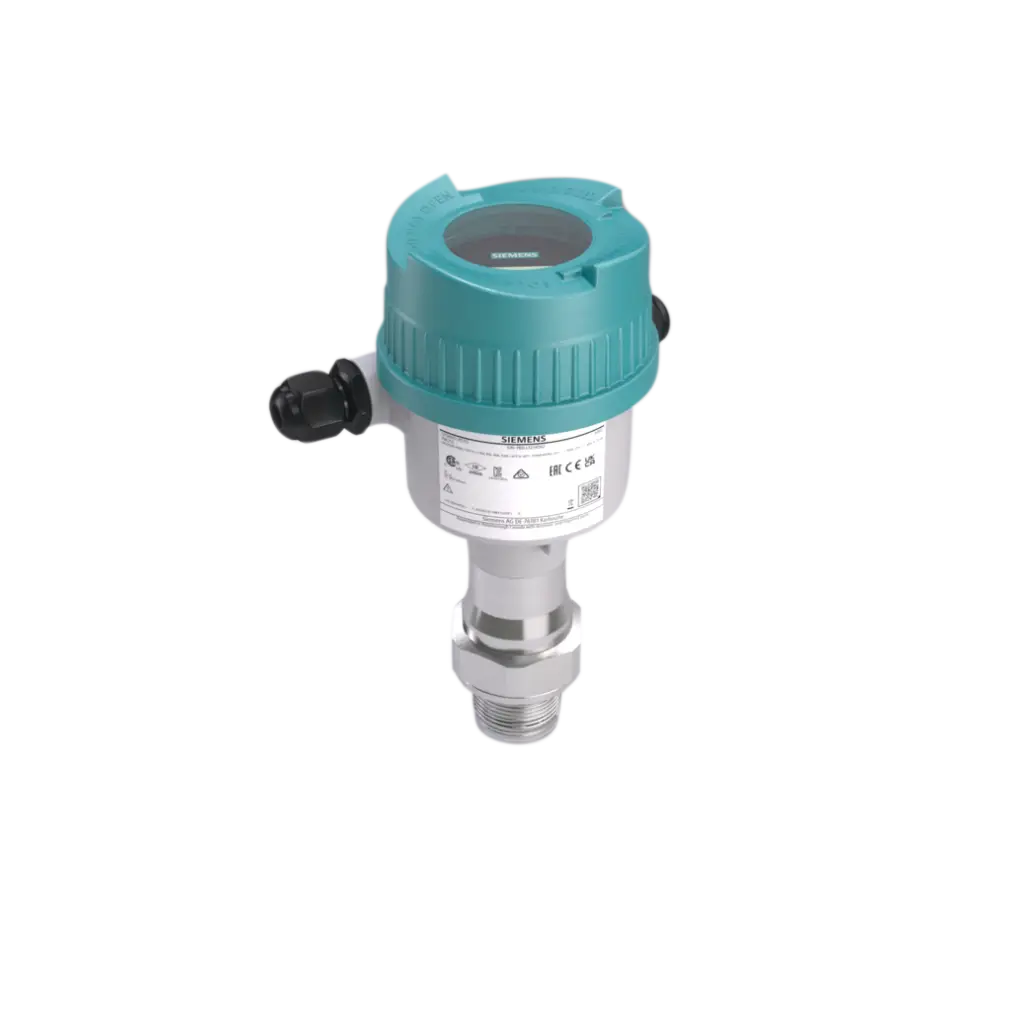

SITRANS LR510
Threaded lens antenna for liquids

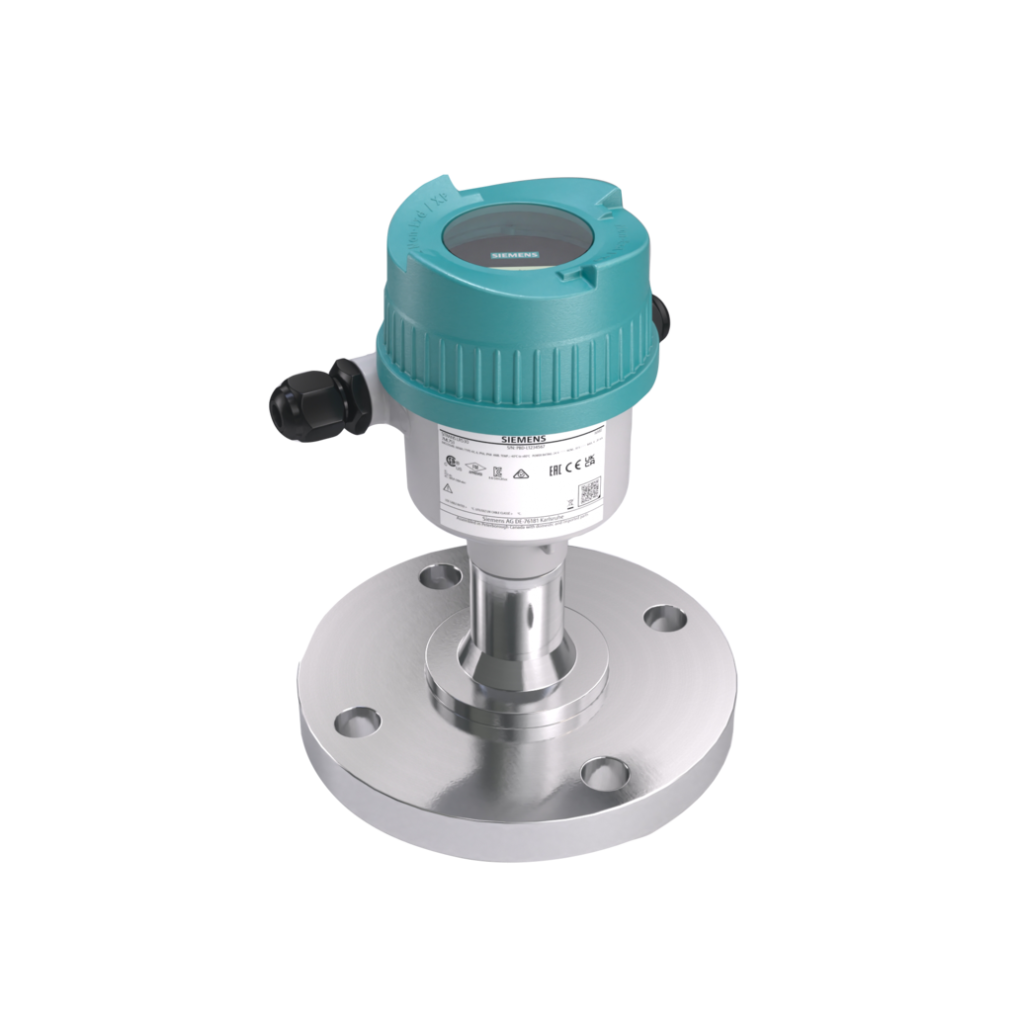

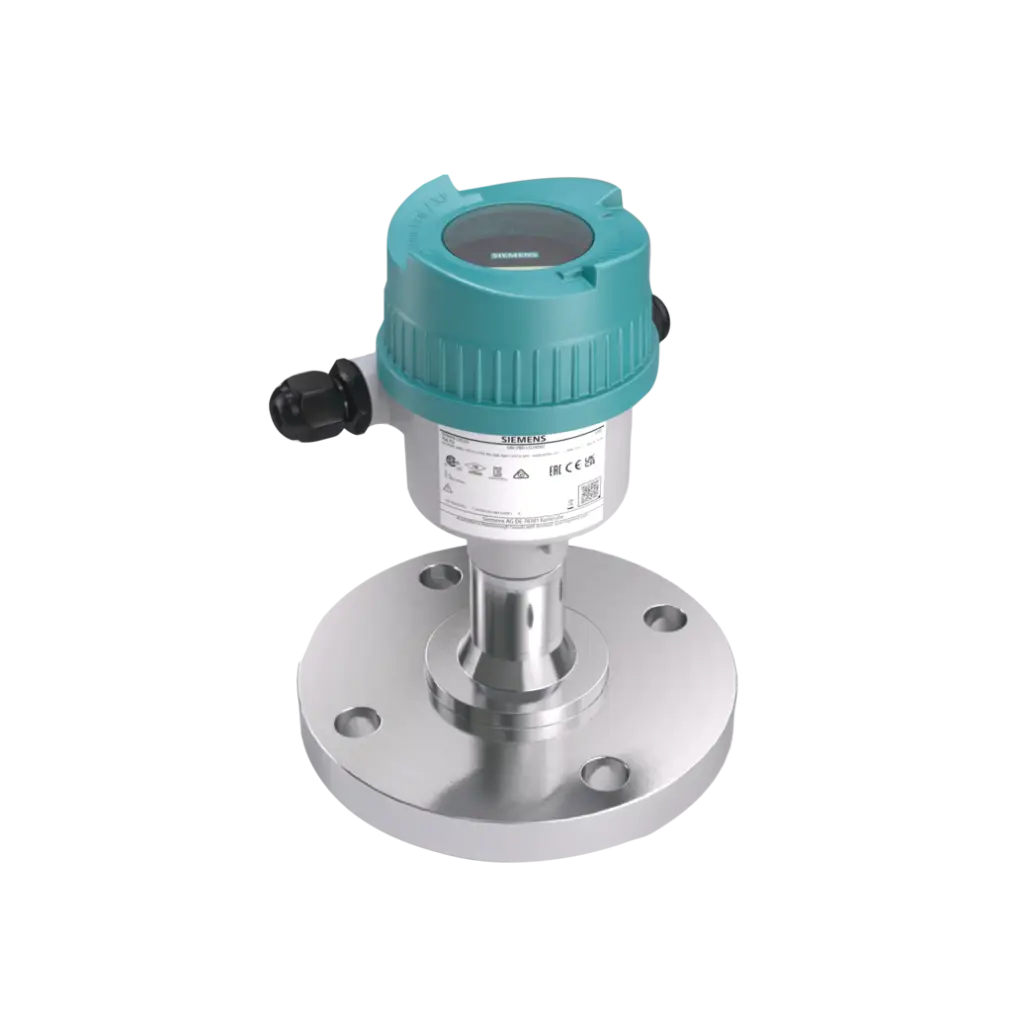

SITRANS LR530
Flanged encapsulated antenna for extreme conditions
Buy now

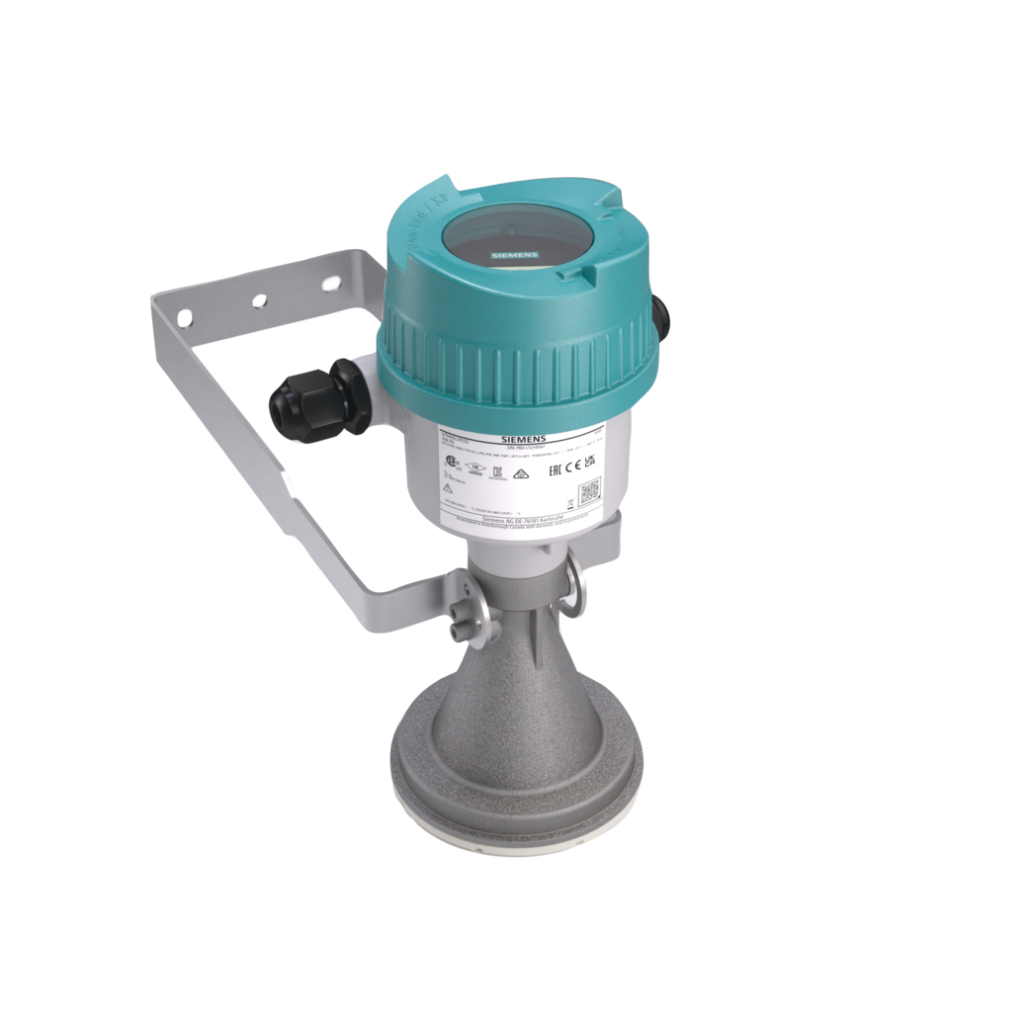

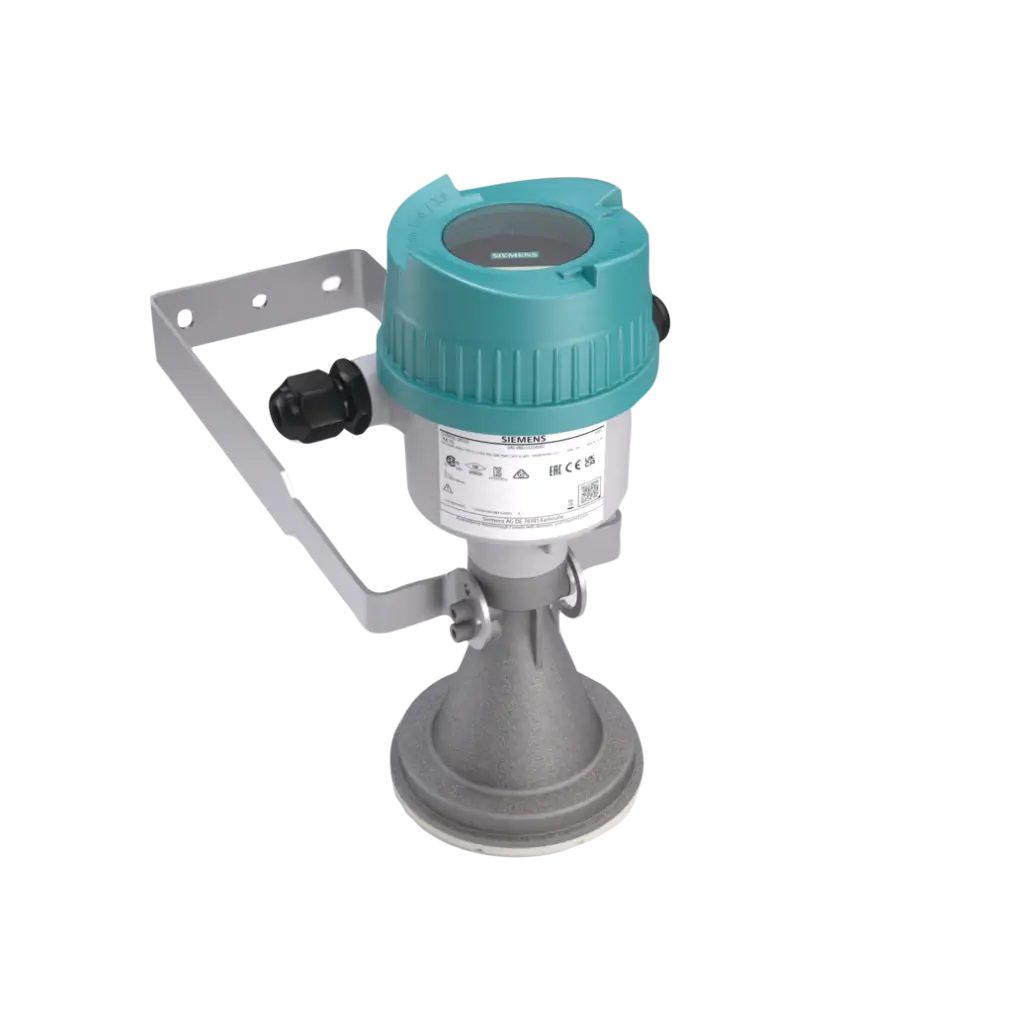

SITRANS LR550
Polymeric horn antenna for solids and liquids
Buy now

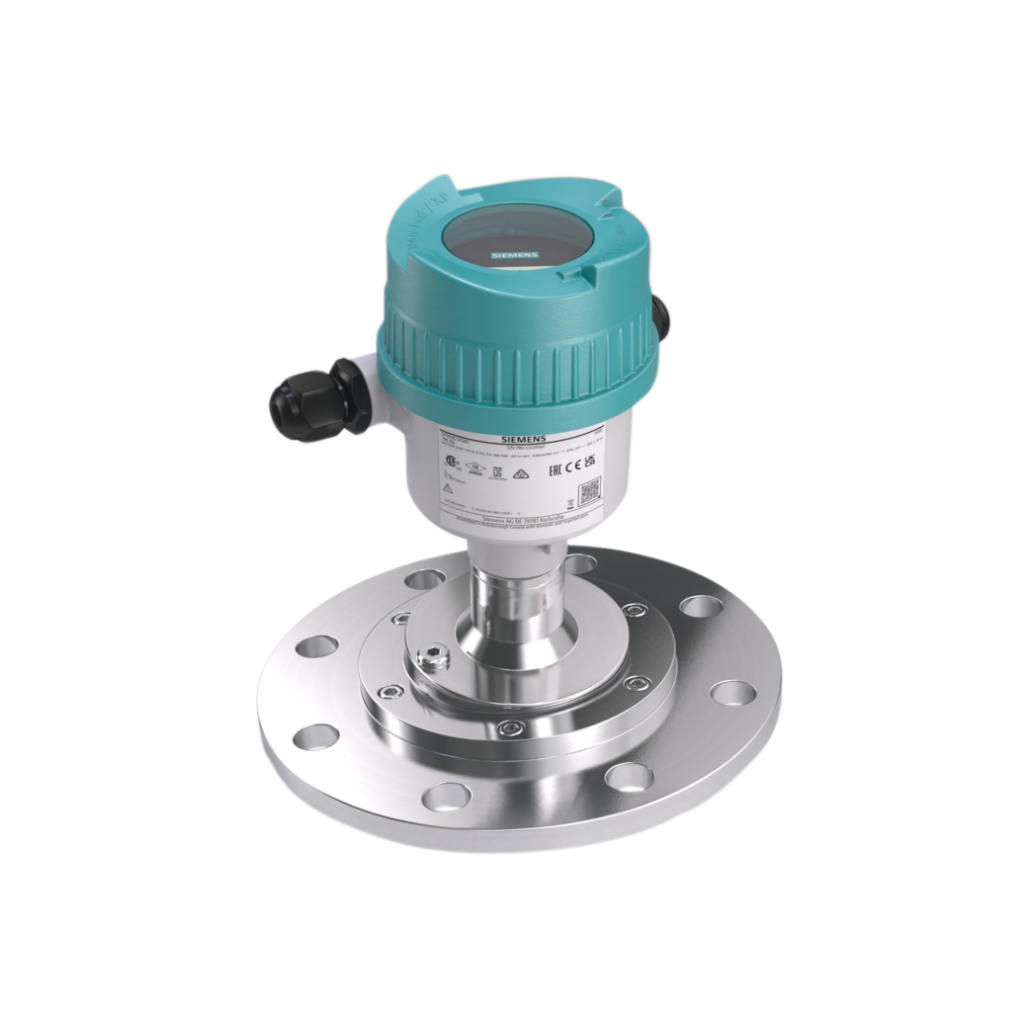

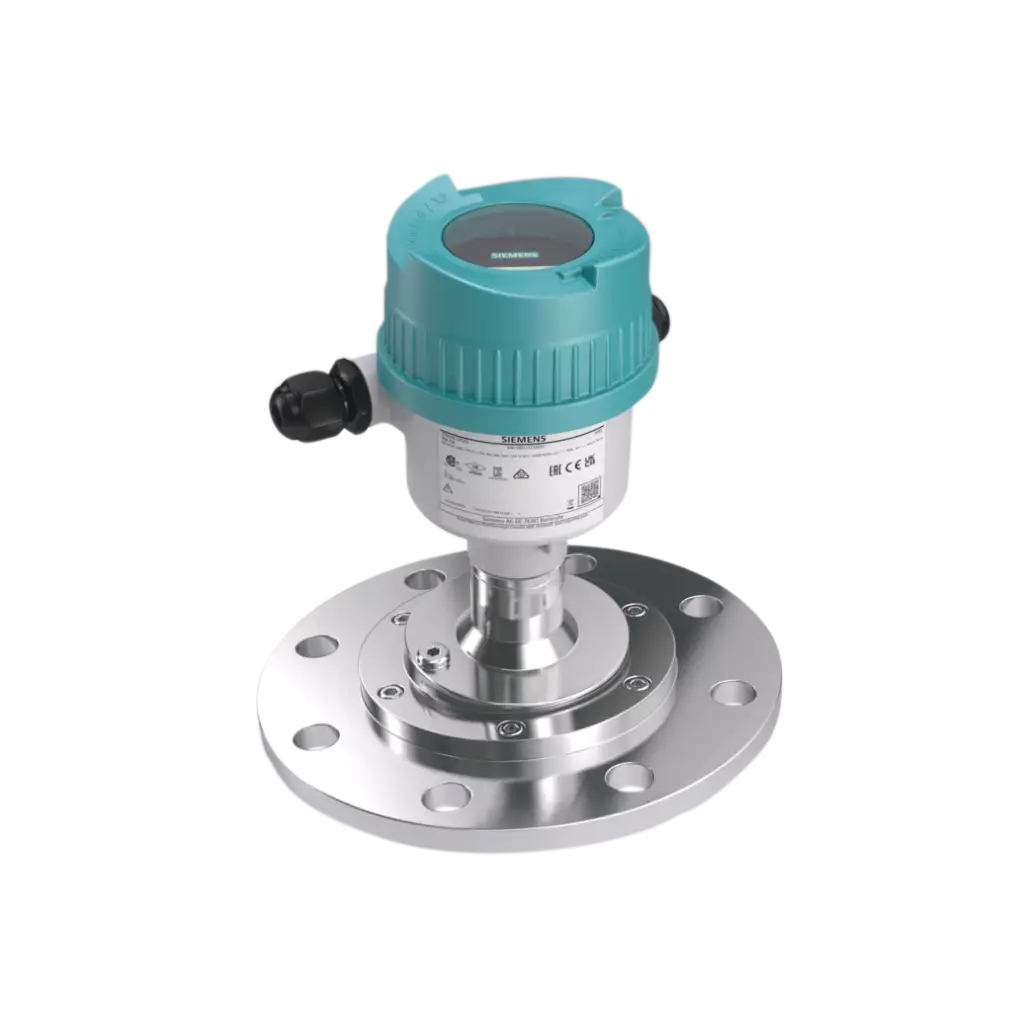

SITRANS LR580
Lens antenna with integrated aiming flange for solids
Buy now
Introducing SITRANS LR500 series radar level measurement for liquids, slurries, and solids
SITRANS LR500 product line overview
The Siemens difference – Process Intelligence
Near range suppression feature
Behind the scenes look into SITRANS LR500 research and development
