LCS and CLS Series
Accurate, reliable, and repeatable. The capacitive point level switches, SITRANS LCS and Pointek CLS series, ensure excellent measurement performance, even under harsh and difficult conditions such as interface, high-pressure and high-temperature applications.
Application highlights

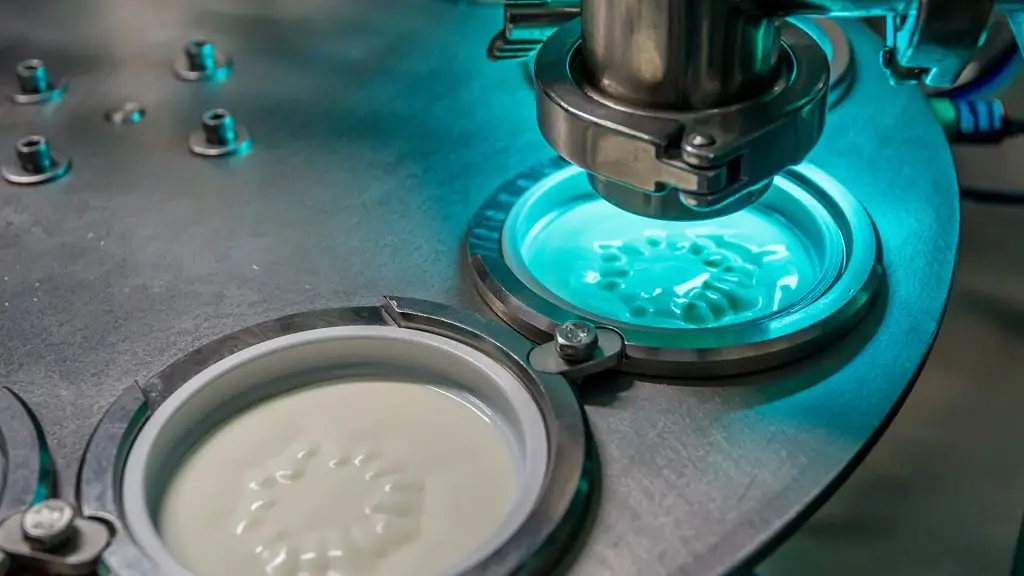

Remote Monitoring
- SITRANS LCS050
- Remote setup via IO-Link
- Monitoring frequency changes to detect changing material types or build-up
- Easy integration into automation system

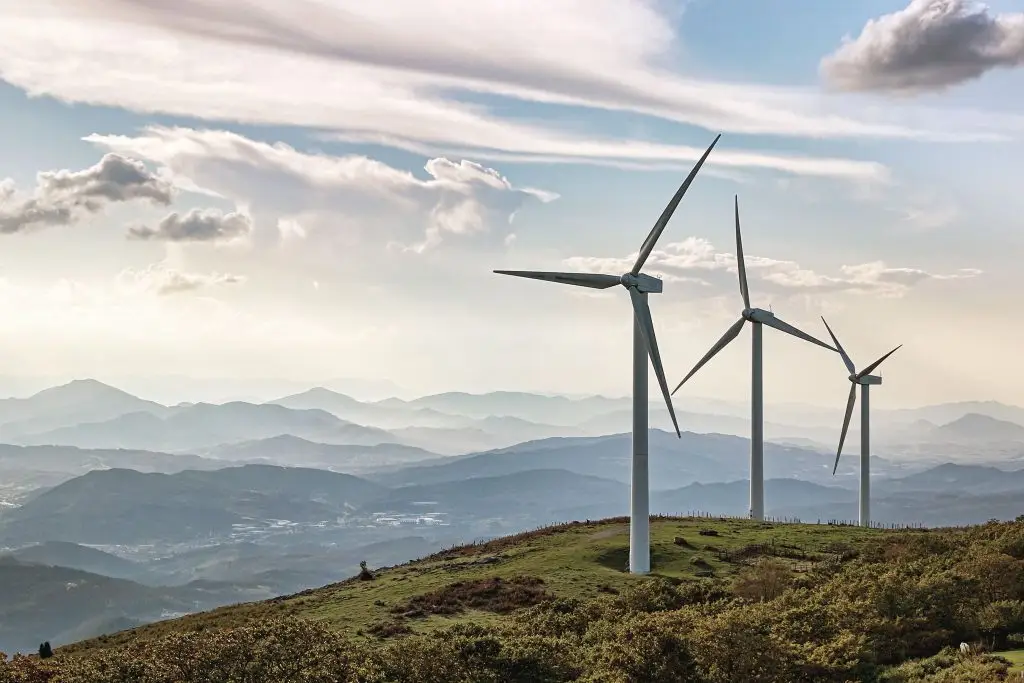

Low level oil detection on windmill
- SITRANS LCS100 versatile compact point level switch
- Compact version for tight spaces
- Quick setup with one time potentiometer adjustment
- Flexible output options including IO-Link
Control foam and initiate defoaming
- Pointek CLS200 digital
- Initiate a de-foaming chemical into the process at exactly the right time thereby reducing foam and overspills
- Reduced frequency of visual inspection
- Increase in productivity
Control foam and initiate defoaming
- Pointek CLS200 digital
- Initiate a de-foaming chemical into the process at exactly the right time thereby reducing foam and overspills
- Reduced frequency of visual inspection
- Increase in productivity
The SITRANS LCS & Pointek CLS Range
Liquids and solids point level or interface detection with digital display and PROFIBUS
Liquids and solids point level or interface detection in harsh demanding applications
SITRANS LCS and CLS Technical Comparison
SITRANS LCS050 | SITRANS LCS100 | Pointek CLS200 | Pointek CLS300 | |
|---|---|---|---|---|
Range | 15 mm (0.59 inch) | 92 mm (3.6 inch)
to 20 000 mm (787 inch) | Rod: 5.5 m (18 ft) Cable: up to 30 m (98 ft) | 250 mm (9.8 inch) to
25 000 mm (984 inch)
|
Process Temperature | -20 … +100 °C (-4 … +212 °F) up to 1h, +135 °C (+275 °F) | -40 … +125 °C (-40 … +257 °F) | -40 to 125 °C (-40 to 257 °F) | -40 … +400 °C (-40 … +752 °F) |
Process Pressure | -1 … 25 bar/-100 … 2 500 kPa (-14.5 … 363 psig) | 25 bar (363 psi) | Rod: up to 25 bar g (365 psi g) Cable: up to 10 bar g (145 psi g) | -1 … +35 bar g (-14.6 … +511 psi g) |
Versions Available | Compact | Compact, rod and cable | Compact, rod, cable | Rod, Cable, High temperature |
Outputs | Transistor (PNP/NPN), IO-Link acc. to IEC 61131-9 | 8/16 mA or 4 … 20 mA 2-wire loop IO-Link, PNP, NPN, relay | Profibus PA (Digital version), solids state, relay | Profibus PA (Digital version), solids state, relay |
Options | – | SensGuard probe cover Probe materials: PPS, PVDF, PEEK | Functional Safety (SIL 2). Device suitable for use in accordance with IEC 61508 and IEC 61511 PROFIBUS PA LCD display SensGuard probe cover Probe materials: PPS, PVDF | Cable, Rod, High temperature,
Profibus, PFA coating |
– Key Applications | Water-based liquids with > 10 % water (alcohols, acids, cleaning agents), slurries, foam and interface for point level, overfill and dry run protection including small pipes due to its compact design | Liquids, slurries, foam, solids and interface in various industries including: oil and gas, chemicals, food and general industries including hazardous areas | Liquids, slurries, foam, solids, and interface in various industries including: oil and gas, chemicals, food and general industries including hazardous areas | Liquids, slurries, foam, solids and Interface in various industries including: oil and gas, Mining, Cement, chemicals, food and general industries including hazardous areas |
