Providing reliable solutions for continuous monitoring of wet wells, flumes, and weirs.
Open channel flow with SITRANS L

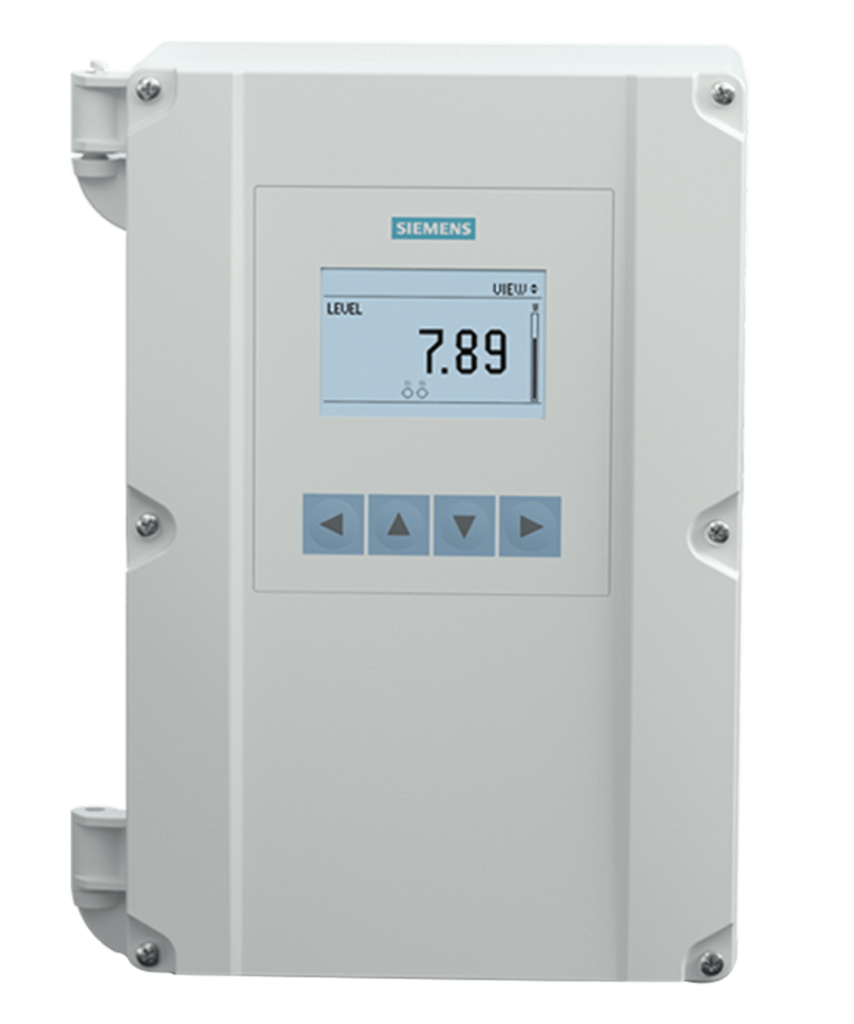

SITRANS LT500
The next evolution of level, flow, and pump controllers for radar and ultrasonic transmitters and transducers - or any other 2-wire 4-20 mA device.
Environmental compliance
Controlling your application keeps you operating within local legislation. From basic level monitoring to complex pumping routines, protect the environment while keeping accurate records of your process.
- Onboard datalogging ensures reliable data backup.
- Hight-accuracyflow measurements meet ISO standards and MCERTS approved.
- Adherence to strict regional regulatory compliance.
- Easy retrofit of older equipment to provide a new choice of inputs.
Reduced carbon footprint
Control over your systems brings savings.
- Avoid peak energy hours: schedule your pumps before high-demand periods and save money.
- Connectivity and reliable level measurement reduces site visits and CO2 emissions.
- Programmable features – grease ring reduction, pump runtime and alternating pumps – reduces maintenance.
Safety first
Installation of a controller protects your most valuable assets.
- Reduce personnel access to vessel tops or confined spaces.
- High-level alarms and backup level override help prevent overflow of hazardous materials.
- Simple push-button configuration from the safety of the controller.
- User-configurable passwords protect access.
- Backup control to the PLC.
- Isolated wiring compartment.
Process optimisation for better business
Digitalisation ready for connection to the cloud, IIoT, or networks using standard industry protocols and onboard datalogging for events, totalizers, pumps, and more. Everything at your fingertips or just a touch away.
Trust the proven
40+ years of controller experience backed by more than 170 years of Siemens’ innovative engineering experience and millions of installed process instruments in the field.
SITRANS LR100 Series Radar
80 GHz radar level transmitters with Bluetooth wireless technology.
Key Features
- Easy Bluetooth® wireless technology for easy and quick setup with Siemens SITRANS mobile IQ App
- 80 GHz narrow beam and small size allows for the easiest installation and commissioning
- Custom radar microchip means signal killer conditions like condensation, buildup or fluffy solids are no match for the extreme sensitivity of the microchip, the weakest signals are still detected
- Zero blanking zone allows measurement range right up to the sensor and with an accuracy of 2 mm you can get rid of costly manual measurement methods
- Digitalization and Industry 4.0 ready with HART 7.0 or optional Modbus RTU for intelligent, value adding data locally or to the cloud
Supplementary Components are designed to work with most types of instrumentation to provide enhanced functionality such as remote displays and remote monitoring solutions. Please find more information here.
Technical Comparison
SITRANS LR100 | SITRANS LR110 | SITRANS LR120 | SITRANS LR140 | SITRANS LR150 | |
|---|---|---|---|---|---|
7ML530 | 7ML531 | 7ML532 | 7ML533 | 7ML534 | |
Basic 4-20 mA measurement
to 8 m with cable | With communications, hazardous approvals options, and range to 15 m | With communications, longest range to 30 m,
and optional submergence shield for flooding protection | Basic measurement to 8m with terminal connection | With HART communication, hazardous approvals, local HMI option, and range to 15m | |
Measuring pinciple | 78-82 GHz, FMCW | 78-82 GHz, FMCW | 78-82 GHz, FMCW | 78-82 GHz, FMCW | 78-82 GHz, FMCW |
Measuring range | 8 m (26 ft) | 15 m (49 ft) | 30 m (98 ft) | 8 m (26 ft) | 15 m (49 ft) |
Process connections | PVDF Thread 1½” and 1″ | PVDF Thread 1½” and 1″ | PVDF Thread 1″ | PVDF Thread 1½” | PVDF Thread 1½”
|
Process pressure | -1 to 3 bar | -1 to 3 bar | -1 to 3 bar | -1 to 3 bar | -1 to 3 bar |
Process temperature | -40 to 60 °C (-40 to 140 °F) | -40 to 80˚C (-40 to 176˚F) | -40 to 80˚C (-40 to 176˚F) | -40 to 60 °C (-40 to 140 °F)
| -40 to 80˚C (-40 to 176˚F)
|
Accuracy | 5 mm (0.2″)
| 2 mm (0.08″)
| 2 mm (0.08″)
| 5 mm (0.2″)
| 2 mm (0.08″)
|
Beam Angle | 8° | 8° | 4° | 8° | 8° |
mA/Loop, Communications | 2-wire, 4 to 20 mA
| 2-wire, 4 to 20 mA/ HART or 4-wire, Modbus | 2-wire, 4 to 20 mA/ HART or 4-wire, Modbus | 2-wire, 4 to 20 mA
| 2-wire, 4 to 20 mA
|
Ex approvals | no | Gas and dust | Gas and dust | no | Gas |
Optional HMI | no | no | no | no | Yes, with Quick Start Wizard
and diagnostic support |
Bluetooth | yes | yes | yes | yes | yes |
SITRANS LR100
For short distances with a cable
Basic 4-20mA measurement to 8 m with cable
SITRANS LR110
The first choice
With communications, hazardous approvals options, and range to 15 m
SITRANS LR120
For flooding conditions
With communications, longest range to 30 m, and optional submergence shield for flooding protection
SITRANS LR140
For short distances
Basic measurements to 8 m with terminal connection
SITRANS LR150
When you need a display
With HART communication, hazardous approvals, local HMI option, and range to 15 m
The SITRANS LR100 Advantage
Hassle-free
SITRANS mobile IQ app uses Bluetooth wireless technology eliminating the need of special commissioning tools. Compact size and narrow beam makes installation easy for level measurement of liquids, slurries or solids.
Performance when you need it
Signal-killer conditions like condensation, buildup or solids are no match for the extreme sensitivity of this transmitter with its custom-designed radar chip. The weakest signals are still detected.
Maximise inventory assets
Zero blanking distance means the measurement range is right up to the sensor. Combined with an accuracy of 2mm ensures confidence in inventory levels for your operation success.
Optimise process for better business
Ready for Digitalisation and with HART 7.0 or optional Modbus RTU. Integrate intelligent, value-adding data locally or to the cloud.
Trust the proven
Over 170 years of Siemens innovative engineering experience and millions of installed instruments in the field.
SITRANS Probe LU240 and Ultrasonic Transducers
Cost-effective, compact, intelligent ultrasonic level option.
Field-proven in more than a million applications worldwide – Siemens ultrasonic level devices can be found in nearly every market. And there’s a reason why they continue to be the industry standard for so many applications. Accuracy. Price point. Durability. Ease of use.
The Siemens Ultrasonic Advantage
Ultrasonic and blanking distance
Ultrasonic OCM and accuracy
Ultrasonic Self-cleaning
Ultrasonic Integration
