SIWAREX load cells

The correct load cell for every nominal load! The SIWAREX range from Siemens offers a wide selection of different designs: from platform load cells to bending and shear beam, s-type and compression cells. The different load cell series cover nominal loads from 0.3kg to 500t. Our range is rounded off by mounting units which supports a optimum alignment of the load cell, protect the load cell against overloads or transverse loads and which greatly simplify assembly. This is essential for the load cells to perform their best in terms of accuracy.

Load cell accessories

Junction Box SIWAREX DB / JB

In case of connecting up more than one load cell, we are offering junction boxes in stainless steel or aluminium. A digital junction box for enhanced diagnosis and control possibilities or standard junction and distributor boxes serve to connect several load cells to one SIWAREX weighing system. A maximum of 4 load cells can be connected in parallel in one junction box.

You can lengthen connection cables by using a SIWAREX EB extension box.

Junction Box SIWAREX DB / JB

In case of connecting up more than one load cell, we are offering junction boxes in stainless steel or aluminium. A digital junction box for enhanced diagnosis and control possibilities or standard junction and distributor boxes serve to connect several load cells to one SIWAREX weighing system. A maximum of 4 load cells can be connected in parallel in one junction box.

You can lengthen connection cables by using a SIWAREX EB extension box.

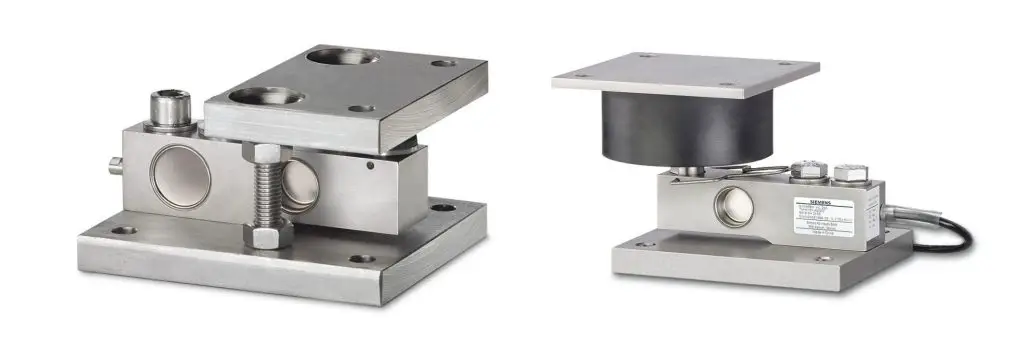

The self-aligning mounting units for load cells are suitable for the use in bin, platform and roller table scales. The combination of the base plate and the elastomer bearing builds together with the load cell is a self-aligning bearing unit. The elastomer bearing has a special buildup: a lateral force causes a much higher deflection as the same force in measuring direction. Therefore, it is possible to prevent high tensions on the loadcell body in case of lateral forces.



If you need more information in choosing the right weighing equipment for your application, send an email to our Process Instrumentation team or call us on 01914780404 to discuss applications. Alternatively, fill the form below.
