Siemens Automation and Application Bundles
Optimise your industrial automation projects with Siemens Application Bundles.
As Siemens' Approved Partner and Value Added Reseller, we can also assist you in developing your systems through our own team of experts.

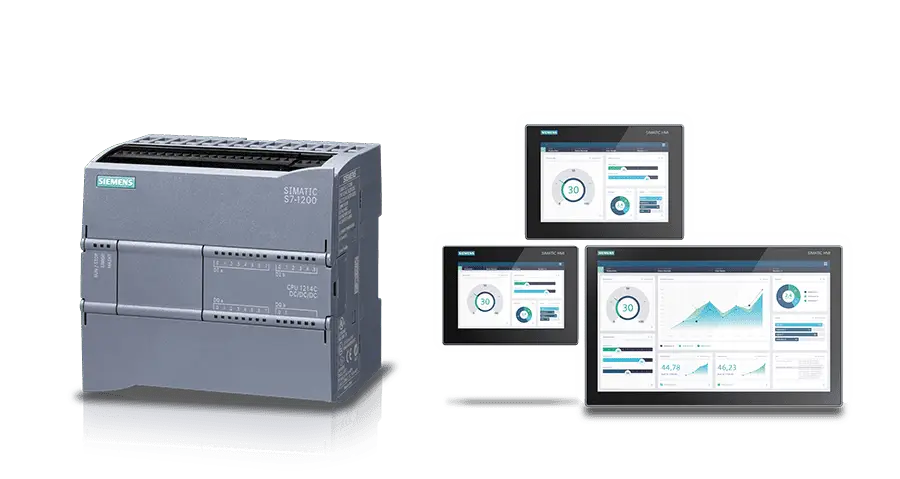

Basic Automation Bundle
Compact yet versatile and scalable solution to optimise your performance for simple applications.
- Integrated system diagnostics can be visualised on HMI to allow usability and transparency of machine operability to support efficient troubleshooting
- Data protection based on web standards with use of https, SSL and user authentication
- Uniform software for hardware, HMI and network configuration through a uniform user concept, common data storage and centralised services.
- Create a modular electrical machine design that can be flexibly adapted to changing requirements
Build your bundle and send us your specifications, we will do the rest.
*Subject to Terms & Conditions
Basic Automation Bundle Components
Mandatory Items
S7-1200 (F)
S7-1200 Basic Controllers
Unified Basic Panels
Unified Basic Panels
Optional Extras
ET200
Siemens Distributed I/O Systems for the Control Cabinet
Field PG
SIMATIC Field PG
TIA Portal
TIA Portal PLC Programming
G120C / Modular / G220
SINAMICS G120C Compact
SINAMICS G120 Modular (3ph)
SINAMICS G220
PSU 6200
PSU6200 - Additional Diagnostics & Condition Monitoring
Experience the start of a new chapter in the world of standard power supplies with the SITOP PSU6200 all-around power supply. Whether you’re a builder or operator of control panels, machines, or plants, all users benefit from the ingenious functions and features of the new SITOP PSU6200 product line – throughout the entire lifecycle, from planning and engineering to installation and operation.
- Focused diagnostics. Top integration.
- Fast installation. Top efficiency.
- Dependable operation. Top reliability.
Selectivity
Current and Selectivity Monitoring
The SITOP selectivity and diagnostics modules are the optimal extension for all 24-V DC power supplies. They distribute and monitor the load current over several current circuits. Overloads and short circuits on a circuit are reliably recognized and the faulty 24-V DC load circuit reliably disconnected, while the other loads continue with absolutely no interruption; this prevents the complete failure of the plant.
- Reliable tripping, regardless of the cable lengths or cable cross-sections
- 4 or 8 24-V DC load feeders per module
- Alternative switch-off characteristics:
X 200 Switch
Managed Switches Layer 2

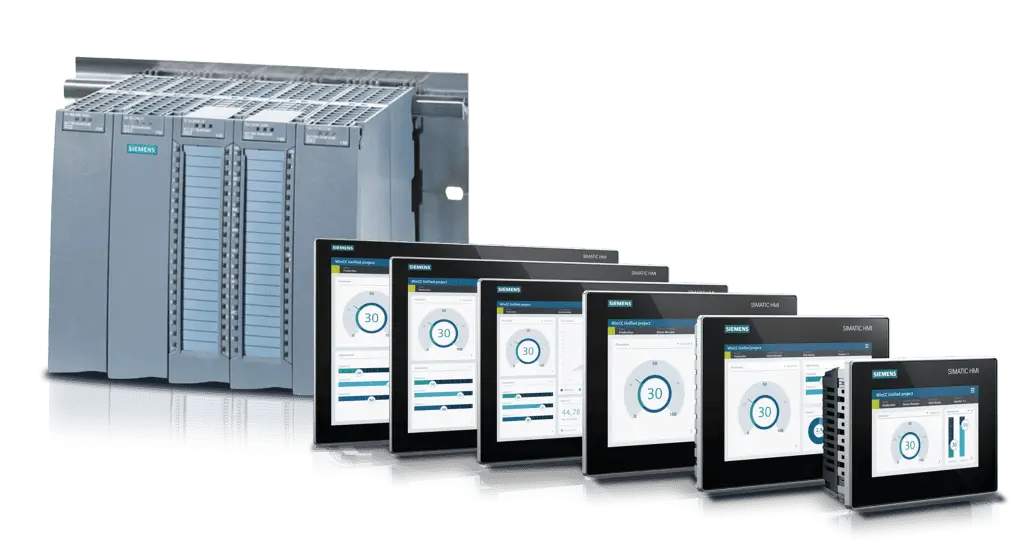

Advanced Automation Bundle
Seamless control and monitoring solution for more advanced automation tasks.
- The maintenance-free web client provides flexible remote access to the visualisation, independent from the on-site operation at the device. It can be accessed via web browser without additional software.
- High-performance components- with an extended scope of motion control functionality
- Kinematic configurator and trace with path recording and kinematic control panel
*Subject to Terms & Conditions
Advanced Automation Bundle Components
Mandatory Items
S7-1500(F) (T)
S7-1500 Advanced Controllers
Unified Comfort Panels
Unified Comfort Panels
Optional Extras
ET200
Siemens Distributed I/O Systems for the Control Cabinet
Field PG
SIMATIC Field PG
TIA Portal
TIA Portal PLC Programming
G120C / Modular / G220
SINAMICS G120C Compact
SINAMICS G120 Modular (3ph)
SINAMICS G220
RF1000
RFID System
PSU 6200 / 8600
SITOP PSU6200 - Additional Diagnostics & Condition Monitoring
Experience the start of a new chapter in the world of standard power supplies with the SITOP PSU6200 all-around power supply. Whether you’re a builder or operator of control panels, machines, or plants, all users benefit from the ingenious functions and features of the new SITOP PSU6200 product line – throughout the entire lifecycle, from planning and engineering to installation and operation.
- Focused diagnostics. Top integration.
- Fast installation. Top efficiency.
- Dependable operation. Top reliability.
SITOP PSU 8600
Selectivity
Current and Selectivity Monitoring
The SITOP selectivity and diagnostics modules are the optimal extension for all 24-V DC power supplies. They distribute and monitor the load current over several current circuits. Overloads and short circuits on a circuit are reliably recognized and the faulty 24-V DC load circuit reliably disconnected, while the other loads continue with absolutely no interruption; this prevents the complete failure of the plant.
- Reliable tripping, regardless of the cable lengths or cable cross-sections
- 4 or 8 24-V DC load feeders per module
- Alternative switch-off characteristics:
X 200 Switch
Managed Switches Layer 2

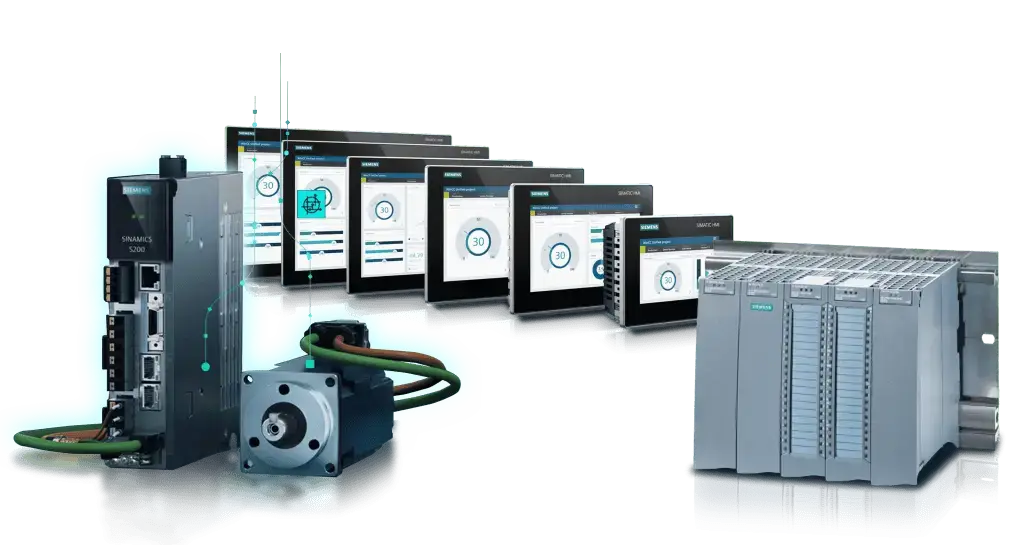

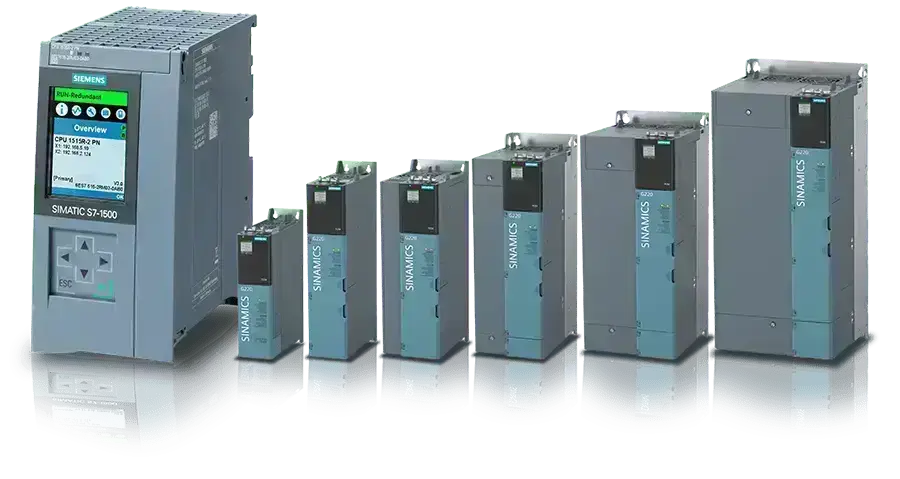

Efficient Motion Application Bundle
Combining the powerful S7-1500T controller with S210/S200 Servo drives to deliver efficient motion control and dynamic performance.
- Engineering and integration- Uniform engineering system for implement all aspects in a single framework, with easy to use editors and standard programming languages and fully integrated safety solutions that provide all required safety functions with TIA Portal
- Commissioning and testing- comprehensive diagnostic functions for early detection of errors and verification of complete machine atomisation
- Flexible HW configuration including optional safety functionality
- Easy control and integration of single axis up to kinematics applications
*Subject to Terms & Conditions
Efficient Motion Application Bundle Components
Mandatory Items
S7-1500(F) (T)
S7-1500 Advanced Controllers
Unified Comfort Panels
Unified Comfort Panels
S200 / S210
SINAMICS S200
Let’s enjoy a system solution both optimized and efficient! The system comprises a SINAMICS S200 servo drive, a SIMOTICS S-1FL2 servo motor and Motion Connect cables. With a power range extending from 0.1kW up to 7kW and various communication options such as PROFINET IRT and pulse train, the system has been specifically designed to address a wide range of standard applications.
SINAMICS S210
The SINAMICS S210 system comprises a servo converter and a servomotor and mainly addresses solutions demanding high dynamic performance in the power range from 50 W to 7 kW. Machine safety functions are integrated. The connection to a higher controller is established via PROFINET IRT communication, fast commissioning via the TIA Portal or the integrated web server, and One Button Tuning.
Optional Extras
ET200 Tech
SIMATIC ET200SP
Field PG
SIMATIC Field PG
TIA Portal
TIA Portal PLC Programming
RF1000
RFID System
PSU 6200 / 8600
PSU6200 - Additional Diagnostics & Condition Monitoring
Experience the start of a new chapter in the world of standard power supplies with the SITOP PSU6200 all-around power supply. Whether you’re a builder or operator of control panels, machines, or plants, all users benefit from the ingenious functions and features of the new SITOP PSU6200 product line – throughout the entire lifecycle, from planning and engineering to installation and operation.
- Focused diagnostics. Top integration.
- Fast installation. Top efficiency.
- Dependable operation. Top reliability.
SITOP PSU 8600
Selectivity
Current and Selectivity Monitoring
The SITOP selectivity and diagnostics modules are the optimal extension for all 24-V DC power supplies. They distribute and monitor the load current over several current circuits. Overloads and short circuits on a circuit are reliably recognized and the faulty 24-V DC load circuit reliably disconnected, while the other loads continue with absolutely no interruption; this prevents the complete failure of the plant.
- Reliable tripping, regardless of the cable lengths or cable cross-sections
- 4 or 8 24-V DC load feeders per module
- Alternative switch-off characteristics:
X 200 Switch
Managed Switches Layer 2
IoT / Edge Application Bundle
Integrates advanced hardware for real-time data processing and analysis. From manufacturing to energy management, this scalable solution ensures optimised performance and enhanced reliability across diverse IoT deployments.
- Energy management to efficient energy use, meet climate change and regulatory requirements e.g. ISO 50001 certification are enabled by OT/IT integration
- Increase equipment availability through identification of improvements and anomalies for reliable production
- Scalable solutions – all apps and devices can be centrally managed to achieve scaling effects while rolling out applications
- Ready-to-use, industrial-grade applications, tested and supported accordingly
*Subject to Terms & Conditions
IoT / Edge Application Bundle Components
Mandatory Items

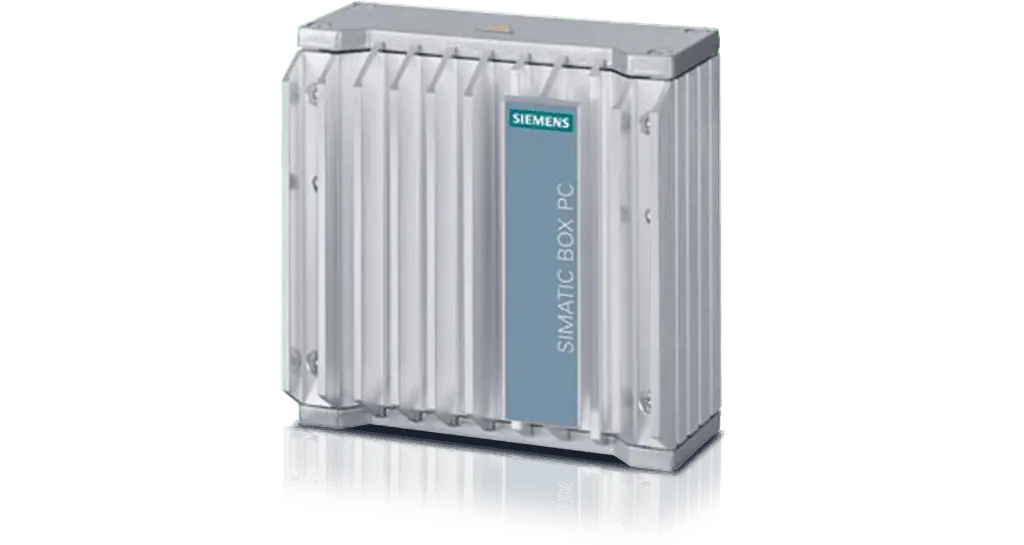

SIMATIC Edge Device
SIMATIC Industrial Edge Devices
Industrial Edge Management
SIMATIC Industrial Edge Management
Industrial Edge Management is the central infrastructure with which all connected Edge devices and their software can efficiently be operated and managed over the complete lifecycle within a factory or worldwide.
Optional Extras
PSU (NEC Class II)
PSU6200 - Additional Diagnostics & Condition Monitoring
Experience the start of a new chapter in the world of standard power supplies with the SITOP PSU6200 all-around power supply. Whether you’re a builder or operator of control panels, machines, or plants, all users benefit from the ingenious functions and features of the new SITOP PSU6200 product line – throughout the entire lifecycle, from planning and engineering to installation and operation.
- Focused diagnostics. Top integration.
- Fast installation. Top efficiency.
- Dependable operation. Top reliability.
XC 200 Switch
Managed Switches Layer 2
UPS
UPS 500 - Capacitor Range
In many PC-based automation solutions, serious damage from a power failure can be prevented by bringing the plant to a defined state. It generally takes about one minute to back up the operating data necessary for this purpose and the subsequent controlled shutdown of the PC. The SITOP UPS500’s double-layer capacitors provide sufficient power for this to be accomplished.
Battery
UPS 500 - Battery Range
UPS 1600 Advanced Battery Range
X 200 Switch
Managed Switches Layer 2
Layer 2 Industrial Ethernet switches feature all functions required to construct a Layer 2 network. A distinction is made between two types unmanaged Layer 2 and managed Layer 2 switches.
Energy Efficiency Application Bundle
For optimised energy consumption and streamlined analysis, allowing you to make informed decisions for further energy optimisation, leading to reduced consumption and cost savings.
- Integrated energy measuring directly in the field with SIMATIC Energy Meter
- Energy data capture and load management is simple and integrated with SIMATIC Energy Manager
- Expandable solution for new tasks and planned optimisations
*Subject to Terms & Conditions
Energy Efficiency Application Bundle Components
Mandatory Items
ET200SP CPU / Energy Meter
SIMATIC ET200SP
Energy Monitoring Devices
Energy Monitoring Devices
7KT PAC1500 measuring devices are used to measure the power consumption in 3-phase systems, e.g. in industrial plants, offices and apartments in apartment houses.
Unified Comfort Panels
Unified Comfort Panels
SIMATIC Energy Suite
PAC Energy Meters
Optional Extras
Field PG
SIMATIC Field PG
TIA Portal
TIA Portal PLC Programming
Drive / G220 (CP) / PM250
Drives
With SINAMICS variable frequency drives, you can address every application and operate synchronous or induction motors. Our drives with integrated safety can be centrally installed in control cabinets, mounted on walls or decentrally. They operate with energy-saving performance, whether for pumping, ventilating, moving, positioning, processing or machining.
SINAMICS G220 (CP)
PM250
RF1000
RFID System
PSU 8600
SITOP PSU 8600
X 200 Switch
Managed Switches Layer 2
Layer 2 Industrial Ethernet switches feature all functions required to construct a Layer 2 network. A distinction is made between two types: unmanaged Layer 2 and managed Layer 2 switches.

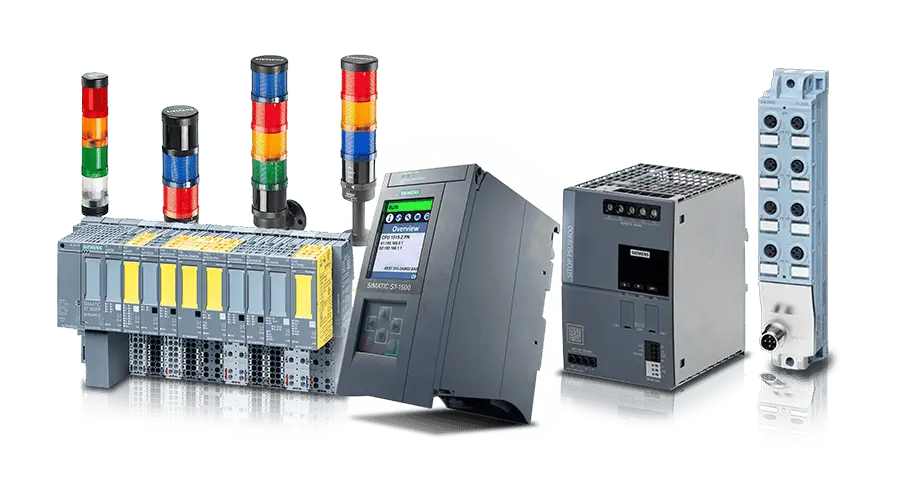

IO-Link Application Bundle
Integrate the growing intelligence of sensors and actuators in an automation system.
- All-in-one engineering software and library concepts simplify machine configuration and programming
- Reduce the amount of wiring for central cabinet and make better use of available footprint
- Create modular electrical machine design that can be flexibly adapted to changing requirements
*Subject to Terms & Conditions
IO-Link Application Bundle Components
Mandatory Items
S7-1200 / ET200SP CPU
S7-1200 Basic Controllers
SIMATIC ET200SP CPU
IO Link Master
IO-Link
Optional Extras

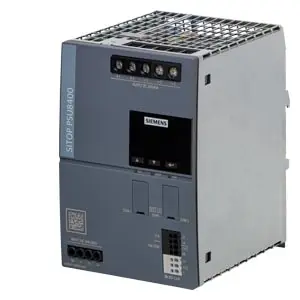

PSU 8400
SITOP PSU8400
The SITOP PSU8400 3AC, 24 V/40 A three-phase power supply unit has an IO-Link interface and a display on the front of the device. The display enables easy and comfortable setting and diagnostics on site. Through the IO-Link interface the user is offered comprehensive parameterisation possibilities as well as diagnostics information for further processing in higher-level automation systems.
RF200 IO-Link
RFID System - IO-Link Master Module
EP Light Stack
Signalling Columns - 70mm diameter
Signaling columns at machines or in automated processes are important optical devices to monitor complex sequences. They are used as visual or acoustic alarm devices when emergencies situations occur.
Selectivity
Current and Selectivity Monitoring
The SITOP selectivity and diagnostics modules are the optimal extension for all 24-V DC power supplies. They distribute and monitor the load current over several current circuits. Overloads and short circuits on a circuit are reliably recognized and the faulty 24-V DC load circuit reliably disconnected, while the other loads continue with absolutely no interruption; this prevents the complete failure of the plant.
- Reliable tripping, regardless of the cable lengths or cable cross-sections
- 4 or 8 24-V DC load feeders per module
- Alternative switch-off characteristics:
X 200 Switch
Managed Switches Layer 2
Layer 2 Industrial Ethernet switches feature all functions required to construct a Layer 2 network. A distinction is made between two types unmanaged Layer 2 and managed Layer 2 switches.

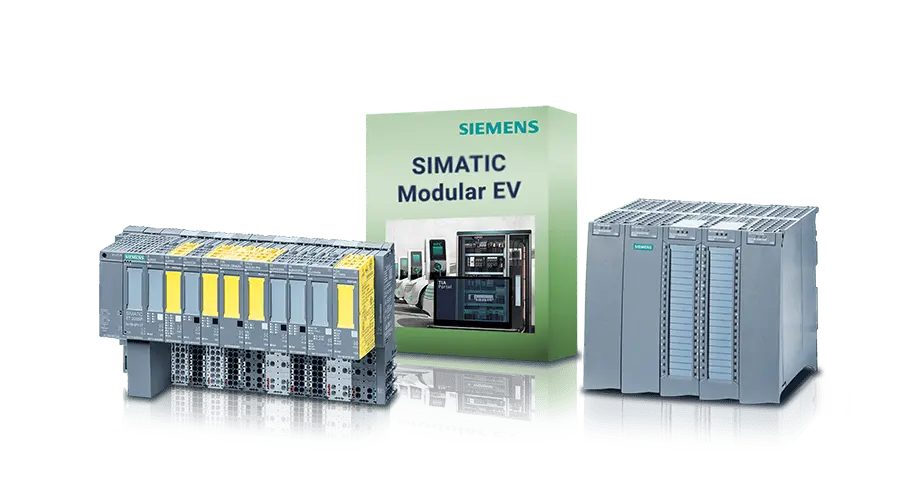

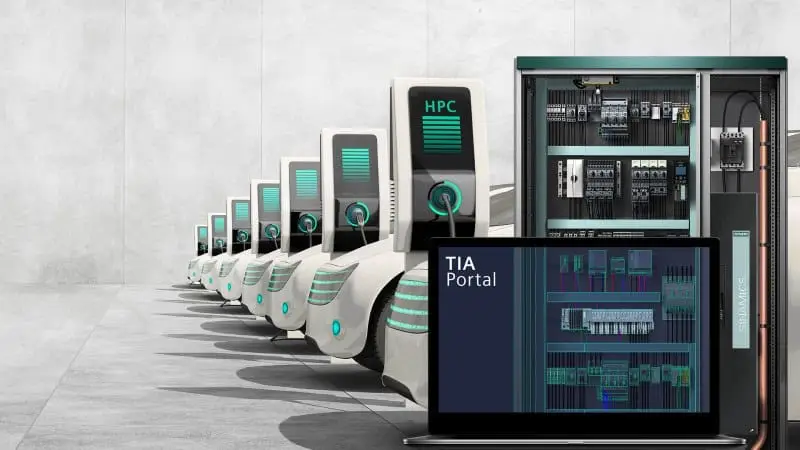

EV Charging Application Bundle
Combine essential components for a robust and dependable SIMATIC system for EV chargers, with the ECC Module that controls the IEC 61851 compliant conductive charging of electric vehicles.
- Applications based on SIMATIC ET200 SP Open Controller with an integrated windows platform and a pre-configured S7-1500 Software Controller with highest security standards
- Enables a direct backend connection using OCPP via 3G, USB connections for RFID readers or Profinet for connecting HMI’s.
- All automation task run on one single and performant device which eliminates redundant and risky interfaces
- Safe and robust components ensure protection of user and vehicle
*Subject to Terms & Conditions
EV Charging Application Bundle Components
Mandatory Items
S7-1500 CPU /ET200 SP
S7-1500 Advanced Controllers
SIMATIC ET200SP
ECC Module
SIMATIC Modular EV
PAC Energy Meters
X 200 Switch
Managed Switches Layer 2
Layer 2 Industrial Ethernet switches feature all functions required to construct a Layer 2 network. A distinction is made between two types: unmanaged Layer 2 and managed Layer 2 switches.
Cybersecurity Application Bundle
Develop a robust defence against cyber threats, using built in TIA Portal and SIMATIC security functions along with a SCALANCE S Firewall, with optional RFID components that enable seamless access control and asset tracking, enhancing security.
- Security configurations set using security wizard, for confidential configuration data, secure PG/HMI communication and plc access protection
- Perimeter based security using industrial firewalls with centralised management
- Explicit identification of operating staff at machines and plants, including access control and audit trail
*Subject to Terms & Conditions
Cybersecurity Application Bundle Components
Mandatory Items
S7 CPU
S7-1500 Advanced Controllers
Unified Comfort Panels
Unified Comfort Panels
RF1000
RFID System
Scalance S Firewall
SCALANCE S Firewall
Spurred on by the rapid advance of digitalisation, trends and changes, far-reaching implications are emerging in industrial communication. Open communication and the ever-stronger networking of production systems not only offer huge opportunities, but also a major risk of being hit by a cyber attack.Security Integrated network components from Siemens, such as SCALANCE S Industrial Security can be added for protected and simultaneously practical remote access to widespread machinery and plants.
Optional Extras
ID Key Switch
Plastic Pushbutton Units - ID Key-operated Switch
SIRIUS ACT is a modular system of command and signaling devices for front panel mounting and rear-mounted electrical modules. Complete units made up of an actuator or indicator and contact modules and/or LED modules are offered for the most frequent application cases.
PSU 6200 / 8600
SITOP PSU6200 - Additional Diagnostics & Condition Monitoring
Experience the start of a new chapter in the world of standard power supplies with the SITOP PSU6200 all-around power supply. Whether you’re a builder or operator of control panels, machines, or plants, all users benefit from the ingenious functions and features of the new SITOP PSU6200 product line – throughout the entire lifecycle, from planning and engineering to installation and operation.
- Focused diagnostics. Top integration.
- Fast installation. Top efficiency.
- Dependable operation. Top reliability.
SITOP PSU 8600
Selectivity
Current and Selectivity Monitoring
The SITOP selectivity and diagnostics modules are the optimal extension for all 24-V DC power supplies. They distribute and monitor the load current over several current circuits. Overloads and short circuits on a circuit are reliably recognized and the faulty 24-V DC load circuit reliably disconnected, while the other loads continue with absolutely no interruption; this prevents the complete failure of the plant.
- Reliable tripping, regardless of the cable lengths or cable cross-sections
- 4 or 8 24-V DC load feeders per module
- Alternative switch-off characteristics:
X 200 Switch
Managed Switches Layer 2

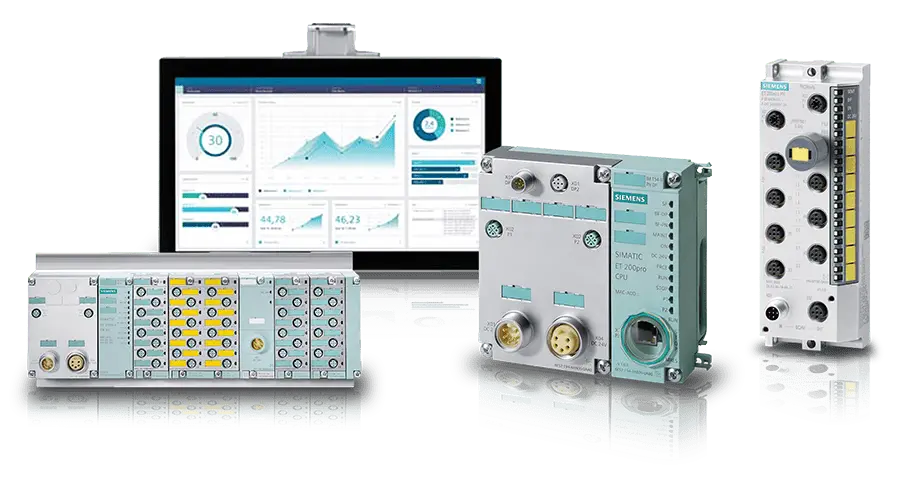

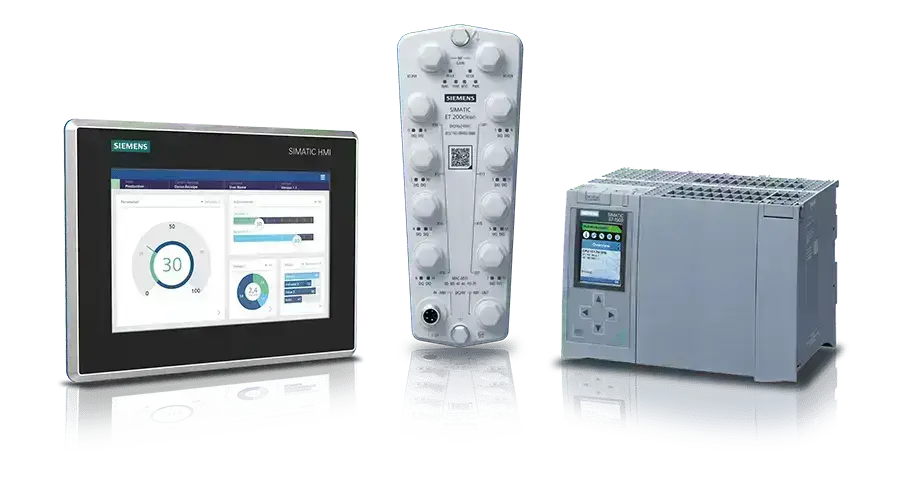

Out of Panel Application Bundle
Out of Panel bundle for applications requiring a high degree of protection (IP 65/67) and can be implemented in harsh environments directly at the machine.
*Subject to Terms & Conditions
Out of Panel Application Bundle Components
Mandatory Items
ET200 Pro CPU
S7-1500 Advanced Controllers

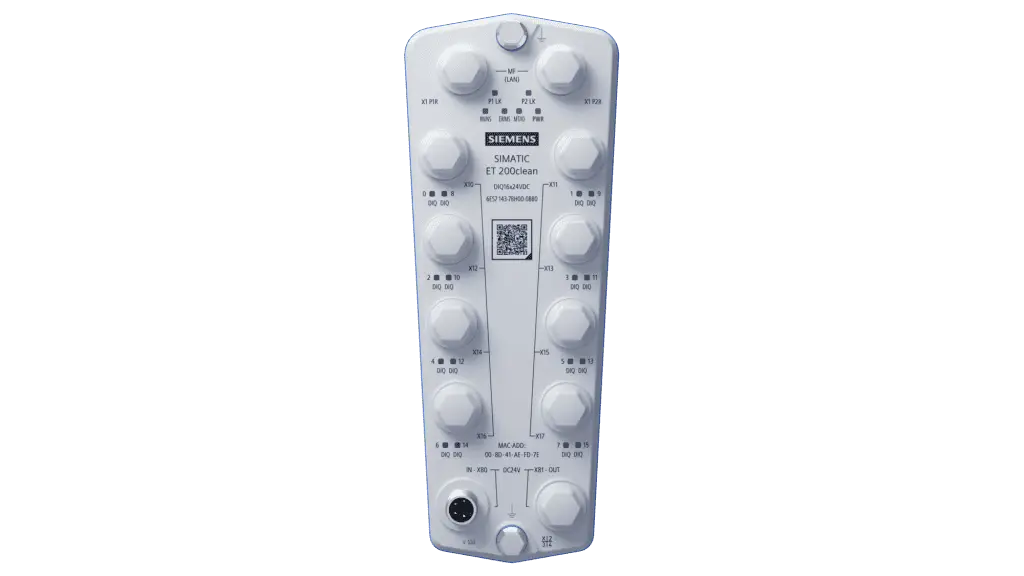

ET200 Pro / Eco IO
Unified Comfort Panels
Optional Extras
Unified Comfort Panel Pro
Unified Comfort Panel Pro
SIMATIC HMI Unified Comfort Panels with their capacitive multitouch displays (in sizes 7 to 21.5 inches) offer you all the freedom and possibilities you need to implement your innovative operating concepts. The panels are particularly powerful, allow the installation of apps and simplify scaling thanks to vector-based visualisation.
Selectivity
Current and Selectivity Monitoring
The SITOP selectivity and diagnostics modules are the optimal extension for all 24-V DC power supplies. They distribute and monitor the load current over several current circuits. Overloads and short circuits on a circuit are reliably recognized and the faulty 24-V DC load circuit reliably disconnected, while the other loads continue with absolutely no interruption; this prevents the complete failure of the plant.
- Reliable tripping, regardless of the cable lengths or cable cross-sections
- 4 or 8 24-V DC load feeders per module
- Alternative switch-off characteristics:
Pushbuttons / Selector Switches
Plastic / Metal Pushbutton Units and Indicator Lights
The range of SIRIUS 3SE5 position switches encompasses both complete units and modular designs with which special versions can be assembled simply and quickly.
- Reliable tripping, regardless of the cable lengths or cable cross-sections
- 4 or 8 24-V DC load feeders per module
- Alternative switch-off characteristics:
G115D
SINAMICS G115D
The new SINAMICS G115D is a powerful drive system specifically designed to address current and future challenges involving horizontal conveyor applications.
RF1000
RFID System
As the world’s leading supplier of identification systems, with SIMATIC Ident Siemens offers a unique integrated and scalable range of RFID and optical identification systems for flexible and cost-effective identification solutions.
PSU 6200
SITOP PSU6200 - Additional Diagnostics & Condition Monitoring
Experience the start of a new chapter in the world of standard power supplies with the SITOP PSU6200 all-around power supply. Whether you’re a builder or operator of control panels, machines, or plants, all users benefit from the ingenious functions and features of the new SITOP PSU6200 product line – throughout the entire lifecycle, from planning and engineering to installation and operation.
- Focused diagnostics. Top integration.
- Fast installation. Top efficiency.
- Dependable operation. Top reliability.
X 200 Switch
Managed Switches Layer 2
Hygiene Application Bundle
Suitable for applications in the Food and Beverage or Pharmaceutical industries, where there are strict hygiene and sterile requirements.
- Glass front panels with capacitive multi-touch technology including shatter protection foil (impact resistance IK10 and protection class IP69)
- Resistance against cleaning agents tested and certified by ECOLAB
- Portfolio meets all requirements in demanding production areas
- IO System protection class IP69K
Build your bundle and send us your specifications, we will do the rest.
*Subject to Terms & Conditions
Hygiene Application Bundle Components
Mandatory Items
S7 CPU
S7-1500 Advanced Controllers
SIMATIC S7-1500 controllers are the ideal choice when it comes to flexibly and efficiently performing automation tasks in the lower to medium performance range. They feature a comprehensive range of technological functions and integrated communication as well as especially compact and space-saving design.
Unified Comfort Hygiene
Unified Comfort Panels - IP69 Design
SIMATIC HMI Unified Comfort Panels with their capacitive multitouch displays (in sizes 7 to 21.5 inches) offer you all the freedom and possibilities you need to implement your innovative operating concepts. The panels are particularly powerful, allow the installation of apps and simplify scaling thanks to vector-based visualisation.
ET200 Clean
SIMATIC ET200 Clean (Available Soon)
For more details about SIMATIC ET200 Clean, please speak with our team.
Optional Extras
PSU 6200
PSU6200 - Additional Diagnostics & Condition Monitoring
Experience the start of a new chapter in the world of standard power supplies with the SITOP PSU6200 all-around power supply. Whether you’re a builder or operator of control panels, machines, or plants, all users benefit from the ingenious functions and features of the new SITOP PSU6200 product line – throughout the entire lifecycle, from planning and engineering to installation and operation.
- Focused diagnostics. Top integration.
- Fast installation. Top efficiency.
- Dependable operation. Top reliability.
Selectivity
Current and Selectivity Monitoring
The SITOP selectivity and diagnostics modules are the optimal extension for all 24-V DC power supplies. They distribute and monitor the load current over several current circuits. Overloads and short circuits on a circuit are reliably recognized and the faulty 24-V DC load circuit reliably disconnected, while the other loads continue with absolutely no interruption; this prevents the complete failure of the plant.
- Reliable tripping, regardless of the cable lengths or cable cross-sections
- 4 or 8 24-V DC load feeders per module
- Alternative switch-off characteristics:
RF1000
RFID System
As the world’s leading supplier of identification systems, with SIMATIC Ident Siemens offers a unique integrated and scalable range of RFID and optical identification systems for flexible and cost-effective identification solutions.
Pushbuttons / Selector Switches
Plastic / Metal Pushbutton Units and Indicator Lights
The range of SIRIUS 3SE5 position switches encompasses both complete units and modular designs with which special versions can be assembled simply and quickly.
EP Light Stack
Signalling Columns - 70mm diameter
SIMATIC HMI Unified Comfort Panels with their capacitive multitouch displays (in sizes 7 to 21.5 inches) offer you all the freedom and possibilities you need to implement your innovative operating concepts. The panels are particularly powerful, allow the installation of apps and simplify scaling thanks to vector-based visualisation.
S1FS2 Motor
SINAMICS S210
The SINAMICS S210 system comprises a servo converter and a servomotor and mainly addresses solutions demanding high dynamic performance in the power range from 50 W to 7 kW. Machine safety functions are integrated. The connection to a higher controller is established via PROFINET IRT communication, fast commissioning via the TIA Portal or the integrated web server, and One Button Tuning.
X 200 Switch
Managed Switches Layer 2
Redundancy Application Bundle
Enhances system reliability with an aim to reduce downtime, reduces the impact of hardware failures, protecting against unexpected disruptions. An investment in system reliability and long-term stability.
- Maximise system availability with redundancy controller without increasing complexity
- Bump less switchover from active to backup CPU implemented with no data loss
- Automatic synchronisation through PROFINET or fiber optic cable
- Automatic redundancy management for smooth production
- SINAMICS G220 is operated as a PROFINET device on a fault-tolerant system without the use of additional hardware.
Build your bundle and send us your specifications, we will do the rest.
*Subject to Terms & Conditions
Mandatory Items
S7-1500 R/H HQ Bundle
S7-1500 Advanced Controllers (Redundant PLCs)
Optional Extra
G220 w. S2
SINAMICS G220
XC 200 Switch
Managed Switches Layer 2
For your specific requirements, talk to us.
To see how we can help with your systems or if you have any enquiry, please get in touch – we’ll be pleased to help. Send us an email at support@parmley-graham.co.uk or fill the form below.
Build innovative machines faster without costly prototyping with Efficient Motion Control.
With Effective Motion Control, machine builders can easily overcome major challenges and enable faster time-to-market, increased functionality, resolve complex system requirements, and demands for safety and sustainability.
We are Siemens trusted and approved distribution partner.
As a Value Added Reseller in Siemens’ Approved Partner network, Parmley Graham is a proven supplier of a wide range of quality products in the UK and globally.
Find out more how this will benefit you or check Siemens Configurator.
