Siemens Industrial Panel PC

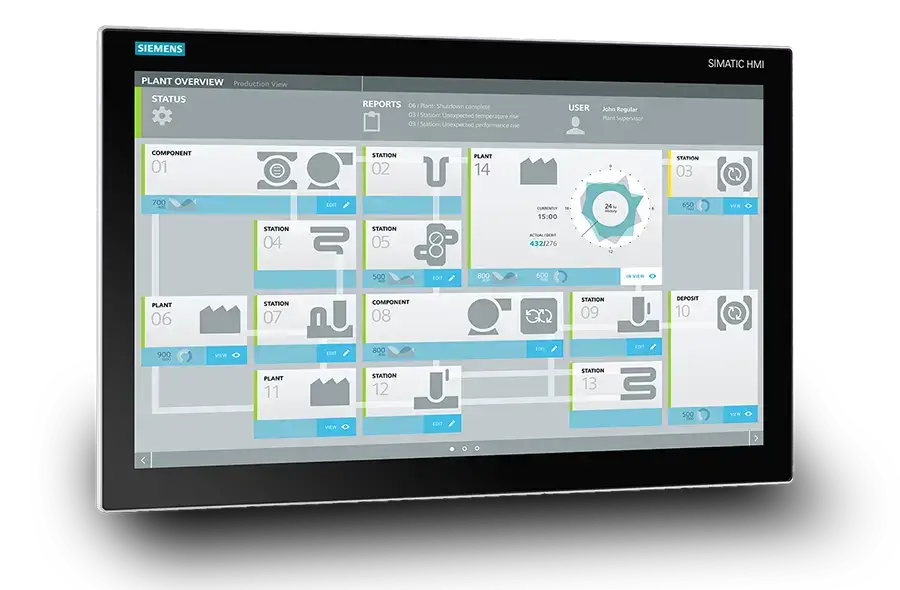

SIMATIC IPC677E
High-performance panel PC with single or multi-touch.
With its robust industrial design, the SIMATIC IPC677E panel PC has been designed for use directly on the machine. Thanks to its scalable performance and wide range of device variants, the IPC677E is suitable for all tasks in the field of PC-based automation, even with increased requirements regarding the availability of the entire system.
The high-end Panel PC with maximum performance, functional scope and expansion capability.
Industrial PC platform with extremely high industrial compatibility for demanding tasks in the field of PC-based automation.
Rugged construction: The IPC is resistant to even the harshest mechanical stress and extremely reliable in operation.
- Compact design
- High degree of investment security
- High degree of expandability
The following widescreen front variants are available:
- 19″, 22″ or 24″ capacitive multi-touch color display
Key Features
Robust widescreen fronts:
- Brilliant, robust Full HD multi-touch displays in 19″, 22″ or 24″ variants with glass front as well as single-touch variants.
High performance and fast response times:
- Processors up to Core™ i7 and powerful CPU-integrated HD onboard graphics.
Extremely high system availability and data security:
- RAID 1 system with RAID onboard controller.
Design
Basic design
- Rugged metal installation housing, chromated, resistant to vibration and shock, with high electromagnetic compatibility
- Card retainer for PC modules for reliable operation in the event of vibrations and shocks
- Vibration and shock-absorbing internal hard disk holder
- Intel UHD Graphics onboard
- Interfaces (accessible from one side):
- 3x Gigabit Ethernet interfaces (RJ45)
- 2x DisplayPort, 1x DVI-D graphics interface
- 4 x USB 3.1 Gen. 2
- 2 x USB 3.1 type C
- 1 x USB 3.1 Gen 2 type A internal, e.g. for software dongle
- 1x serial (COM1)
- 4 status LEDs (1x power, 3x user)
Design versions (configurable):
Front:
- 19″ multi-touch, capacitive, 1 920 x 1 080 (Full HD)
- 22″ multi-touch, capacitive, 1 920 x 1 080 (Full HD)
- 24″ multi-touch, capacitive, 1 920 x 1 080 (Full HD)
Processor:
- Core i7-8700, 6 cores, 12 threads, 3.2 (4.6) GHz, VT-d, AMT, 12 MB cache
- Intel Core i3-8100, 4 cores, 4 threads, 3.6 GHz, VT-d, 6 MB cache
- Intel Celeron G4900 2 cores, 2 threads, 3.1 GHz, VT-d, 2 MB cache
Main memory:
- 4 GB up to 64 GB, DDR4-2666
Drives:
- M.2 solid-state drive (SSD) NVMe (4x PCIe 3.0) 512 GB
- Solid-state drive (SSD) SATA 480 GB
- RAID1 2x SSD SATA 480/960 GB in removable drive bay
- SATA hard disks: 320 GB, 2.5″
Free slots for expansions:
- 2x PCI (185/185 mm) or
- 2x PCIe x16, x4 (185/185 mm) or
- 1x PCIe x16 and 1x PCI (185/185 mm)
Power supply:
- 100-240 V AC (wide range), 50/60 Hz
- 24 V DC industrial power supply
Pre-installed and activated operating systems:
- Windows 10 Enterprise 2016 LTSB, Multi-language
- Windows 10 IoT Enterprise 2019 LTSC, Multi-language
- Windows 10 IoT Enterprise 2021 LTSC, multi-language
Further options:
- 2x USB 2.0 (occupies one slot)
- SIMATIC PC DiagMonitor software
- SIMATIC PC Image&Partition Creator software
- TPM module V2.0 – onboard security hardware (Trusted Platform Module)
- NVRAM 512 KB, non-volatile memory
- Option “without CMOS battery” (for shipping without hazardous goods)
Application
The SIMATIC IPC677E provides mechanical engineers, plant engineers, and control cabinet builders with an extremely high-performance PC platform for applications at the machine in industrial environments:
- Measuring, open-loop and closed-loop control of process and machine data
- Operation/visualization tasks with detached display/monitor solution
- Data acquisition and data processing
- Motion control
The SIMATIC IPC677E can be ordered in conjunction with SIMATIC HMI packages with a price advantage.
The SIMATIC IPC677E Advantage
Maximum system performance for complex measuring, control and visualization tasks
- 8th generation Intel processors: Core i7, Core i3 or Celeron with up to 6 cores and 12 threads
- Intel UHD Graphics 630/610 for high graphics performance (Core i / Celeron)
- DDR4-2666 memory technology up to 64 GB RAM
- USB 3.1 Gen2 SuperSpeedPlus (10 Gbps)
- USB type C (10 Gbps)
- PCI Express 3.0 for effective PCIe card support
- M.2 SSD NVMe for faster data processing
Industry-standard fronts
- Modern industrial design with a smooth front, resistant to dirt, oil and grease
- 19″, 22″ and 24″ multi-touch fronts in widescreen format
- All fronts uniformly in Full HD (1920×1080)
- Operation in multi-touch or single-touch mode
- Dimmable LED backlighting
High degree of industrial functionality and flexibility
- Up to 45 °C ambient temperature during operation
- High shock/vibration resistance
- High EMC for safe operation
- Free expansion slots: 2x PCI or 2x PCIe or 1x PCIe and 1x PCI
- Solid State Drives (SSD) in M.2 NVMe and SATA technology for high reliability and speed
- RAID1 functionality onboard in the Platform Controller Hub (no PC slot occupied)
- 3x Gigabit Ethernet (IE/PN, RJ45) terminals (teaming-capable)
- 6x USB 3.1 (SuperSpeedPlus) – 2 of which type C
- 2x DisplayPorts and 1x DVI-D interface
- Strain relief for all connecting cables/connectors
High system availability, fast startup, maintenance and servicing
- High degree of data security due to RAID1 mirror disk systems and SSD media (optional)
- 512 KB NVRAM for retentive data
- AMT (Intel Active Management Technology) functionality for remote access to IPC (remote maintenance)
- CMOS buffer battery accessible from outside, replaceable during operation. Status can be polled by software
- 4 status LEDs (1x power, 3x user)
- Operating system is preinstalled, ready-to-use, and already activated
- Fast restoration of delivery state using restore USB flash drive
- Worldwide service and support
Minimisation of costs due to high security of investment
- Platform with long-term stability and embedded Intel components
- Available for at least 4 years, then assured spare parts availability for further 5 years
- Part of the scalable Box PC range with identical performance features and footprint
- System-tested with SIMATIC components
- Certified for worldwide marketing (e.g.: cULus)
- Installation-compatible across device generations, software compatible with predecessor model
- PC development and production (incl. motherboard and BIOS) in Germany by Siemens
