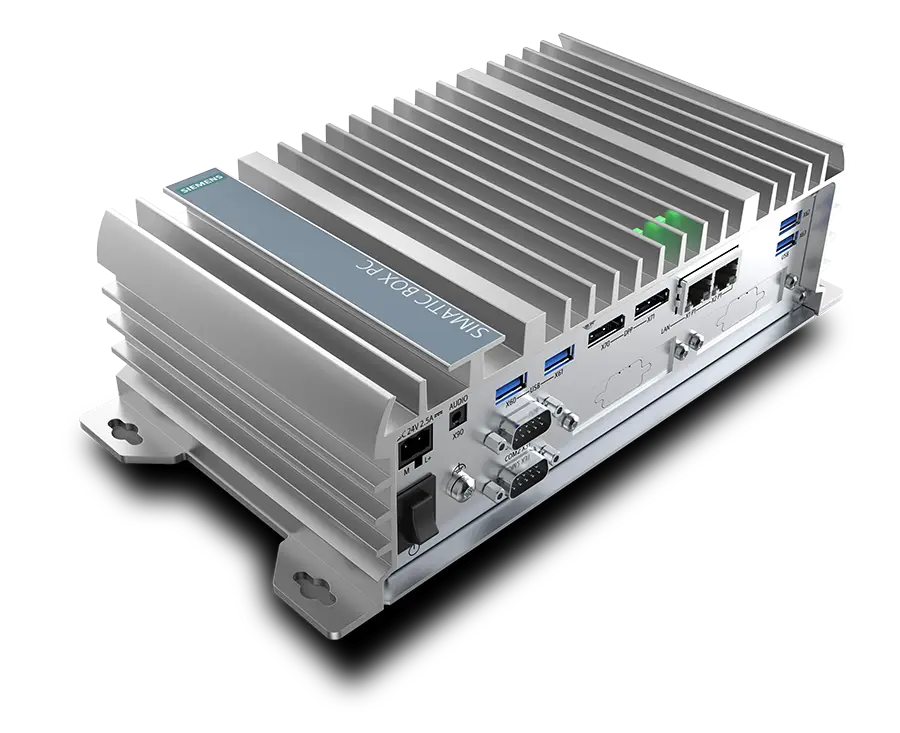

Siemens Industrial Box PC
SIMATIC IPC327G
The new SIMATIC IPC327G is a cost-optimised platform with the most up-to-date Intel® Atom processor technology. The design with multiple interfaces can be used for different applications, for example, logistics, electronics, etc.
It is characterised in particular by a large number of interfaces for easy connection to existing and new systems, fast availability from stock, as well as a fanless industrial design.
For simple entry into the world of SIMATIC Industrial PCs .
Implement diverse industrial applications economically.
The SIMATIC IPC327G Box PC provides a preconfigured, turnkey and complete solution for all industrial applications. Effective immediately, different variants (without operating system / with preinstalled operating system) are available from stock and will enable fast and simple introduction into the world of SIMATIC Industrial PCs – also into existing machines and plant concepts. It is especially well suited for acquisition and networking of production and energy data in the production environment as well as in industry-related environments, such as assembly workstations, warehouses and logistics systems, or for standard applications in the image processing field.
Key Features
Powerful and future-proof thanks to latest PC technology
- Latest Intel® Atom® Quad-Core Prozessor (X6413E, 1.5 GHz)
- Expandable up to 16 GB RAM
- 2 x Gigabit-Ethernet
- USB 3.0
- 2 x M.2 slots with up to 512 GB Solid-State-Drive (SSD)
- Device design without fan
Standards for easy integration into existing systems
- 2 x DisplayPort
- 2 x Serial Ports (expandable up to 4)
- 4 x USB 3.0, 1 x USB 2.0 (internal)
Industry-standard mounting options
- Tool-free mounting on standard rail, wall mounting with ports at top or bottom, portrait mounting with extremely small footprint
Reliable in industrial environments thanks to SIMATIC quality
- Designed for 24/7 operation
- Run in Test
- Certificates for worldwide use
Available from stock
- Availability up to 3 years
- Another 3 years of repair and spare parts service
Design
Basic design
- All-metal enclosure with IP40 degree of protection
- Integrated 24 V DC power supply
- Processor: Intel Atom x6413E, 1.5 GHz – burst frequency 3.0 GHz, Quad Core
- Interfaces:
- 2 x Gbit Ethernet (RJ45)
- 4 x USB 3.1 (up to 10 Gbps); 3 x USB 2.0
- 4 x COM, of which 2 x in BIOS selectable between RS 232 / RS 485 / RS 422
- Audio in/out
- Video interfaces:
- 2 x DisplayPort
- Expansion options
- 2 x M.2 module
Equipment variants
Main memory configuration
- 4 GB, 8 GB, or 16 GB RAM
Mass storage
- Without mass storage
- 256 GB SSD
- 512 GB SSD
Preinstalled operating systems:
- Without operating system
- Windows 10 IoT Enterprise 2019 LTSC, 64-bit, MUI
Application
SIMATIC IPC327G is versatile and can be used in factory automation, warehousing and logistics as well as in assembly workstations, for example.
Areas that can be covered by the applications include the following:
- HMI applications
- Easy image processing
- Simple control tasks
- Intelligent industrial operator stations
- Cost-optimized operation
- Distributed data collection
The SIMATIC IPC327G Advantage
Future-proof thanks to the latest PC technology
- Intel Atom X6413E (4-core) – with maximum performance
- DDR4 up to 16 GB RAM work memory
- 2x M.2 for flexible expansions
- Windows 10 IoT Enterprise 2019 LTSC
Easy connection using a variety of interfaces
- 2 x RS232/RS485/RS422 (optional); 2x RS232 (optional)
- 7 x USB – 4 x USB 3.0, 1x USB 2.0(internal), 2x USB 2.0 pin header
- 2 x Gbit LAN
- 2 x DisplayPort
Proven reliability due to "Made for Industry" & SIMATIC quality
- Fanless, closed industrial design (IP40)
- Run-in tested for fast and trouble-free commissioning
- Certificates for worldwide use
- Up to 55 °C ambient temperature in operation
- Up to 1 g vibration / 15 g shock during operation
- Flexible mounting options without accessories (DIN rail, wall and desktop mounting)
Economic solutions and fast availability
- Ideal platform for cost-optimized PC and HMI applications in the industrial environment
- Attractive packages with SIMATIC HMI software
- Configurations available directly ex stock
