Siemens Industrial Panel PC

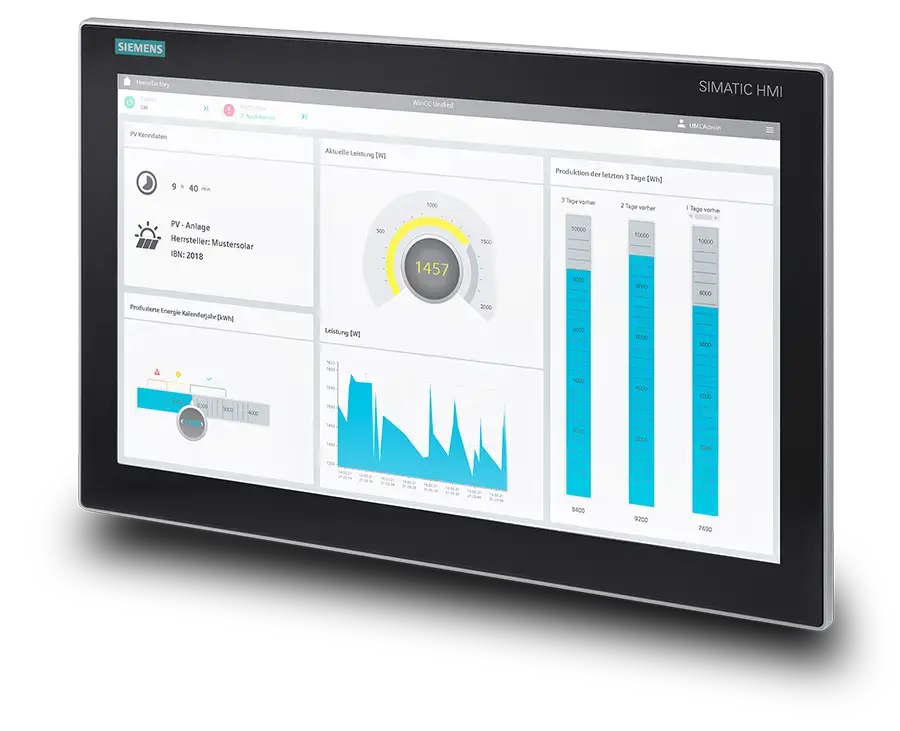

SIMATIC IPC PX-39A Micropanel PC
The powerful Panel IPC – maintenance-free with versatile configuration.
Ready-to-run, complete solution:
- Ultra-compact
- Maintenance-free
- Intel CPU technology of the 11th generation.
SIMATIC IPC PX-39A: The powerful embedded panel
The SIMATIC IPC PX-39A is a high-performance panel PC for demanding visualization and control tasks with a multi-touch display. It offers machine, plant and control cabinet manufacturers a powerful, compact PC platform for machine- and process-related use or use in an industrial environment with high system availability thanks to RAID1. The range of applications is from the fully integrated automation computer with e.g. Software Controller CPU1500S (in preparation), to the C/C++-based automation solution with e.g. VxWorks, to “standalone” applications in general IT use.
Key Features
Robust widescreen fronts:
- Brilliant, robust multi-touch displays in 12″, 15″, 19″, 22″ or 24″ variants.
High data processing speed for high productivity:
- Processors up to Intel® Xeon® with up to 32 GB of RAM.
High expandability:
- Diverse interfaces and configuration options (4x USB 3.2 Gen2, 4x Ethernet interface (RJ45), 10/100/1000 Mbit/s of which (1x Ethernet 1 Intel® Jacksonville i219-LM AMT-capable; 1x Ethernet 2 Intel® Springville i210-AT; 2x Ethernet 3&4 Intel® EC 1000S), 2x DisplayPort (DP1.4-capable, 1.3 validated up to 4kp60), 1x/2x (optional) COM interfaces (RS232 / RS485 / RS422 switchable in BIOS)) as well as easy expansion with two M.2 slots and one PCIe slot.
Design
Basic design
- All-metal enclosure, resistant to vibrations and shocks, also with high electromagnetic compatibility
- Graphics onboard, 2 x DisplayPort
- Optical drives can be connected externally via USB interface, not included in scope of supply
- Interfaces (accessible from one side):
- 4 x LAN 10/100/1000 Mbps Ethernet interface (RJ45)
- 4 x high-speed USB3.2 Gen2
- Up to 2 x COM (RS232/RS485)
- Vacant slots (when using versions with one or two expansion slots):
- Up to 1 x PCIe card
- 2 x M.2 cards
- Isolated power supply: 24 V DC (19.2 to 28.8 V)
Equipment variants
- Processor:
- Intel® Celeron® 6600HLE 2 cores/2 threads, 2.1 GHz, 8 MB cache, TCC
- Intel® Xeon® W-11155MLE 4 cores/8 threads, 1.8 (3.1) GHz, 8 MB cache, ECC, TCC
- Intel® Xeon® W-11555MLE 6 cores/12 threads, 1.9 (4.4) GHz, 12 MB cache, vPro, ECC, TCC
- Intel® Xeon® W-11865MLE 8 cores/16 threads, 1.5 (4.5) GHz, 24 MB cache, vPro, ECC, TCC
- Main memory capacity 4 GB (8/16/32 GB optional), DDR4 SDRAM
- Fieldbus
- PROFINET onboard, 4 x RJ45
- Hardware expansion:
- Up to 2 x onboard RS232/RS485 interfaces (COM)
- Drives:
- 256 GB or 512 GB solid-state drive, rugged alternative to hard disk
- Preinstalled operating systems:
- Windows 10 IoT Enterprise 2021 LTSC, 64-bit
Application
SIMATIC IPC PX-39A provides machine, plant and control cabinet builders with a high-performance, compact PC platform for use at machine or process level, or in the industrial environment for:
- Measuring and checking, open-loop and closed-loop control of process and machine data
- Acquisition, further processing and visualization of data
- All applications at the machine level, created in C/C++ or with Software Controller/WinCC RT Advanced, which require rugged, ultra-compact IPCs with high computing power
- Additional new applications such as shipbuilding, building automation, water treatment
The application spectrum ranges from automation computers fully integrated in TIA with CPU1500S Software Controllers (available soon), for example, to C/C++-based automation solutions with VxWorks, for example, all the way to “standalone” applications for general IT applications.
SIMATIC IPC PX-39A has the CE marking for use in industrial applications as well as in domestic, business and commercial environments. It can therefore also be used in building automation systems or in public facilities.
Due to the fan-free design and use of SSDs, there are no rotating parts, which increases system availability.
SIMATIC PCs can be ordered in conjunction with WinCC SCADA or WinCC (Advanced, Professional) as SIMATIC HMI packages with a price advantage.
The SIMATIC IPC PX-39A Advantage
High data processing speed for high productivity:
- Up to Intel® Xeon®, fan-free
- DDR4 memory technology up to 32 GB
Maximum compactness and ruggedness for use directly on the machine:
- Low mounting depth, ambient temperature up to 50 °C
- Front portrait mounting as second standard mounting position
- 256 GB or 512 GB solid-state drive (SSD)
High degree of industrial functionality and flexibility for implementing embedded solutions:
- Industrial Multi Touch fronts with 15″, 19″, 22″ and 24″ diagonals (1920 x 1080)
- Flexible memory concepts (e.g. 2 mass storage units possible)
- 4 x LAN 10/100/1000 Mbps connections; teaming-capable; iAMT-capable
- PROFINET interface onboard
- 4 x high-speed USB3.2 Gen2 ports; 2 serial interfaces (optional)
- Simple expansion capability (up to 1 x PCIe slot, up to 2 x M.2 slots)
- On-off switch
High system availability in order to reduce the risk of potential failures and maintenance costs:
- Maintenance-free since no rotating parts (fans, hard disks) and operation without battery possible
- 512 KB NVRAM can be written by Software Controller
- System-tested SIMATIC Software
High investment security in order to reduce engineering costs:
- Long-term availability: Service and support period of 8 to 10 years after market launch
- Compatible with existing installations (same front)
