Siemens Industrial Box PC

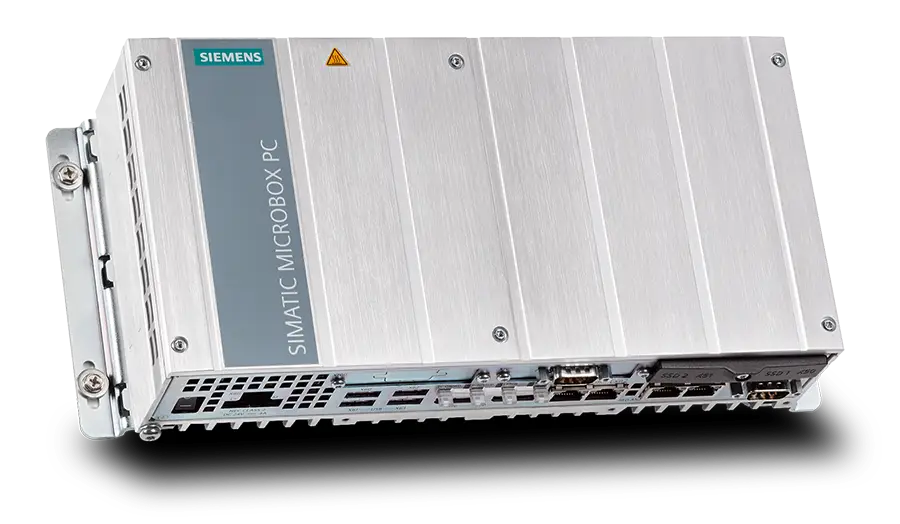

SIMATIC IPC BX-39A Microbox PC
The powerful embedded IPC – maintenance-free with versatile configuration
The overall turnkey solution:
- Ultra-compact
- Maintenance-free
- Intel CPU technology of the 11th generation
Highest performance for complex and demanding control, data collection or communication tasks.
The Simatic IPC BX-39A offers machine, plant and control cabinet manufacturers a compact PC platform for machine- and process-related use. The range of applications ranges from complex control tasks (also in high-level languages) and visualization solutions to production-related data acquisition and analysis.
Key Features
High data processing speed
- Scalable with 4 different 11th generation Intel® processors and DDR4 memory technology up to 32 GB for AI applications with Google Coral accelerator.
Flexibility to implement the embedded solution
- Many interfaces available, flexible mounting and installation options as well as easy expandability.
High system and data security
- Robust housing for use at ambient temperatures up to 55 °C and RAID configuration for maximum data availability.
Design
Basic design
- All-metal enclosure, resistant to vibrations and shocks, also with high electromagnetic compatibility
- Graphics onboard, 2 x DisplayPort
- Optical drives can be connected externally via USB interface, not included in scope of supply
- Interfaces (accessible from one side):
- 4 x LAN 10/100/1000 Mbps Ethernet interface (RJ45)
- 4 x high-speed USB V3.2 Gen2
- Up to 2 x COM (RS232/RS485)
- Vacant slots (when using versions with one or two expansion slots):
- Up to 2 x PCIe cards
- 2 x M.2 cards (internal)
- Isolated power supply: 24 V DC (19.2 to 28.8 V)
Equipment variants
- Processor:
- Intel® Celeron® 6600HLE 2 cores/2 threads, 2.1 GHz, 8 MB cache, TCC
- Intel® Xeon® W-11155MLE 4 cores/8 threads, 1.8 (3.1) GHz, 8 MB cache, ECC, TCC
- Intel® Xeon® W-11555MLE 6 cores/12 threads, 1.9 (4.4) GHz, 12 MB cache, vPro, ECC, TCC
- Intel® Xeon® W-11865MLE 8 cores/16 threads, 1.5 (4.5) GHz, 24 MB cache, vPro, ECC, TCC
- Main memory capacity 4 GB (8/16/32 GB optional), DDR4 SDRAM
- Fieldbus
- PROFINET onboard, 4 x RJ45
- Hardware expansion:
- Up to 2 x onboard RS232/RS485/R5422 interfaces (COM)
- Drives:
- 256 GB or 512 GB solid-state drive, rugged alternative to hard disk
- Preinstalled operating systems:
- Windows 10 IoT Enterprise 2021 LTSC, 64-bit
Application
SIMATIC IPC BX-39A provides machine, plant and control cabinet builders with a high-performance, compact PC platform for use at machine or process level, or in the industrial environment for:
- Measuring and checking, open-loop and closed-loop control of process and machine data
- Acquisition, further processing and visualization of data
- All applications at the machine level, created in C/C++ or with Software Controller/WinCC RT Advanced, which require rugged, ultra-compact IPCs with high computing power
- Additional new applications such as shipbuilding, building automation, water treatment
The application spectrum ranges from automation computers fully integrated in TIA with CPU1500S Software Controllers (available soon), for example, to C/C++-based automation solutions with VxWorks, for example, and “standalone” applications for general IT applications.
SIMATIC IPC BX-39A has the CE marking for use in industrial applications as well as in domestic, business and commercial environments. It can therefore also be used in building automation systems or in public facilities.
Due to the fan-free design and use of SSDs, there are no rotating parts, which increases system availability.
SIMATIC PCs can be ordered in conjunction with WinCC SCADA or WinCC (Advanced, Professional) as SIMATIC HMI packages with a price advantage.
The SIMATIC IPC BX-39A Advantage
High data processing speed for high productivity:
- Up to Intel® Xeon®, fan-free
- DDR4 memory technology up to 32 GB
Maximum compactness and ruggedness for use directly on the machine:
- Low mounting depth, ambient temperature up to 55 °C
- Front portrait mounting as second standard mounting position
- 256 GB or 512 GB solid-state drive (SSD)
High degree of industrial functionality and flexibility for implementing embedded solutions:
- Flexible memory concepts (e.g. 2 mass storage units possible)
- 4 x LAN 10/100/1000 Mbps connections; teaming-capable; iAMT-capable
- PROFINET interface onboard
- 4 x high-speed USB 3.2 Gen2 ports; 2 serial interfaces (optional)
- Flexible installation and mounting options (top hat DIN rail, wall, portrait mounting)
- Simple expansion capability (up to 2 x PCIe slots, up to 2 x M.2 slots)
- On-off switch
High system availability in order to reduce the risk of potential failures and maintenance costs:
- Maintenance-free since no rotating parts (fans, hard disks) and operation without battery possible
- 512 KB NVRAM can be written by Software Controller
- Front LED for efficient self-diagnostics; optimised for headless operation through special BIOS properties
- System-tested SIMATIC Software
High investment security in order to reduce engineering costs:
- Long-term availability: Service and support period of 8 to 10 years after market launch
- Compatible with existing installations (same footprint)
