Siemens Industrial Box PC

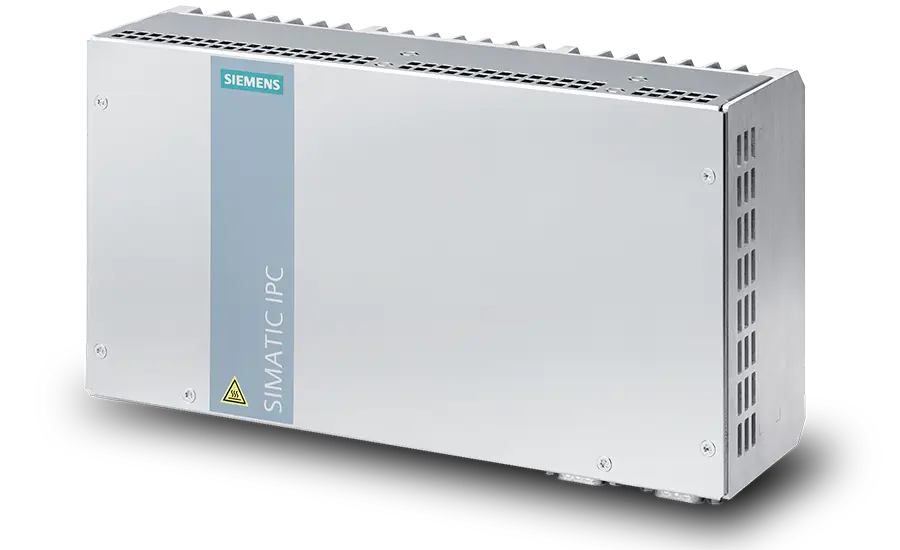

SIMATIC IPC BX-32A
SIMATIC IPC BX-32A: The cost and function-optimized alternative to SIMATIC IPC BX-39A
Compact PC platform for machine and process-related use.
The range of applications for the cost- and function-optimized alternative to the SIMATIC IPC BX-39A ranges from the automation computer fully integrated in TIA to the C/C++-based automation solution and “standalone” applications in general IT use.
Turnkey overall solution:
- Ultra-compact
- Maintenance-free
- Intel CPU technology of the 11th generation
Key Features
High data processing speed
- With 4 different Intel® processors of the 11th generation and DDR4 memory technology up to 32 GB.
Flexibility to implement the embedded solution
- Many interfaces available, flexible mounting and installation options as well as easy expandability.
Highest compactness and robustness
- Low installation depth and a robust housing for use in ambient temperatures up to 50 °C.
Design
Basic design
- All-metal enclosure, resistant to vibrations and shocks, also with high electromagnetic compatibility
- Graphics onboard, 2 x DisplayPort
- Optical drives can be connected externally via USB interface, not included in scope of supply
- Interfaces (accessible from one side):
- 2 x LAN 10/100/1000 Mbps Ethernet interface (RJ45)
- 4 x high-speed USB 3.2 Gen2
- Up to 4 x COM (RS232/RS485/RS422)
- Vacant slots (when using the variant with one expansion slot):
- Up to 1 x PCIe card
- 1 x M.2 card (internal)
- Wide-range power supply: 9 to 36 V DC
Equipment variants
- Processor:
- Intel® Celeron® 6600HLE 2 cores/2 threads, 2.1 GHz, 8 MB cache, TCC
- Intel® Xeon® W-11155MLE 4 cores/8 threads, 1.8 (3.1) GHz, 8 MB cache, ECC, TCC
- Main memory capacity 4 GB (8/16/32 GB optional), DDR4 SDRAM
- Fieldbus
- PROFINET onboard, 2 x RJ45
- Hardware expansion:
- Up to 4 x onboard RS232/RS485/R5422 interfaces (COM)
- Drives:
- 256 GB or 512 GB solid-state drive, rugged alternative to hard disk
- Preinstalled operating systems:
- Windows 10 IoT Enterprise 2021 LTSC, 64-bit
Application
SIMATIC IPC BX-32A provides machine, plant and control cabinet builders with a high-performance, compact PC platform for use at machine or process level, or in the industrial environment for:
- Measuring and checking, open-loop and closed-loop control of process and machine data
- Acquisition, further processing and visualization of data
- All applications at the machine level, created in C/C++ or with Software Controller/WinCC RT Advanced, which require rugged, ultra-compact IPCs with high computing power
- Additional new applications such as shipbuilding, building automation, water treatment
The application spectrum ranges from automation computers fully integrated in TIA to C/C++-based automation solutions and all the way to “standalone” applications for general IT applications.
SIMATIC IPC BX-32A has the CE marking for use in industrial applications as well as in domestic, business and commercial environments. It can therefore also be used in building automation systems or in public facilities.
Due to the fanless design and use of an SSD, there are no rotating parts, which increases system availability.
The SIMATIC IPC BX-32A Advantage
High data processing speed for high productivity:
- Up to Intel® Xeon®, fanless
- DDR4 memory technology up to 32 GB
Maximum compactness and ruggedness for use directly on the machine:
- Low mounting depth, ambient temperature up to 50 °C
- Front portrait mounting as second standard mounting position
- 256 GB or 512 GB solid-state drive (SSD)
High degree of industrial functionality and flexibility for implementing the embedded solution
- 2 x LAN 10/100/1000 Mbps connections
- PROFINET interface onboard
- 4 x high-speed USB 3.2 Gen2 ports; up to 4 serial interfaces (optional)
- Flexible installation and mounting options (DIN rail, wall, portrait mounting)
- Easy expandability (1 x PCIe slot, 1 x M.2 slot)
- On-off switch
High system availability in order to reduce the risk of potential failures and maintenance costs:
- Maintenance-free since no rotating parts (fans, hard disks) and operation without battery possible
- System-tested SIMATIC Software
High investment security in order to reduce engineering costs:
- Long-term availability: Service and support period of 8 to 10 years after market launch
