Siemens Industrial Panel PC - Devices for Special Requirements

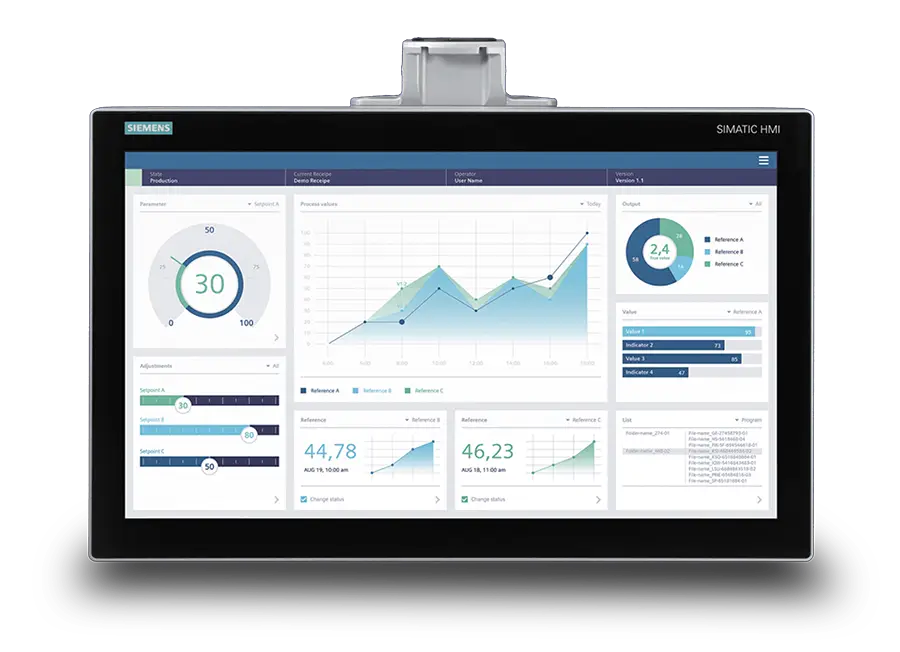

SIMATIC Industrial Flat Panel PRO
The industrial multi-touch widescreen monitors can be installed directly on the machine. The devices are connected to PCs, especially SIMATIC IPCs, via the DisplayPort interface or for longer distances, via HDBaseT and USB. The monitor’s rugged aluminum housing ensures durability even in harsh and extreme environments.
SIMATIC IFP PRO and SIMATIC IFP PRO ETH:
The new Industrial Flat Panels with fully-enclosed IP65 protection – the industrial widescreen monitors for harsh ambient conditions that can be installed directly on the machine.
SIMATIC IFP1200 PRO
The SIMATIC IFP1200 PRO supplements the current product range of the new Industrial Flat Panels. Equipped with innovative, projected capacitive touchscreen technology for the detection of multi-touch gestures with up to ten fingers and with a brilliant widescreen display and glass front.
The devices are connected to PCs, especially SIMATIC IPCs, via the DisplayPort interface or, over greater distances, via HDBaseT and USB.
The rugged aluminum housing of the monitor enables it to be used directly at the machine and ensures durability, even in harsh and extreme operating environments.
- IP65 degree of protection – fully-enclosed
- Can be located up to 100 m from the computer unit (IFP Extended version)
- Rugged, industrial 12″, 15″, 19″, 22″ and 24″ widescreen displays (multi-touch)
- Slim, modern design
- Can be adapted to support arm system of various manufacturers
- Fast integration capability
- Low energy requirement
- Small footprint and low weight
- Low wiring overhead and short maintenance times thanks to use of standard connecting cables
- Integration of operator controls in the new Extension Units
- Also available in neutral design
SIMATIC IFP PRO ETH
IFP1500 PRO ETH, IFP1900 PRO ETH and IFP2200 PRO ETH supplement the current product range of new Industrial Flat Panels with their full HD resolution (1 920 x 1 080 pixels) and neutral design fronts. Equipped with innovative, projected capacitive touchscreen technology for the detection of multi-touch gestures with up to ten fingers and with a brilliant widescreen display and glass front. The devices are connected by means of a DisplayPort or Ethernet and USB to PCs, in particular SIMATIC IPCs. The rugged aluminum housing of the monitor enables it to be used directly at the machine and ensures durability, even in harsh and extreme operating environments.
Key Features
- Robust and suitable for industrial use widescreen fronts:
– 12″, 15″, 19″, 22″ and 24″ variants with multi-touch - Detachable Monitor:
– Monitor can be moved up to 100 m from the PC unit - Upgrading the machine:
– Thanks to the modern and slim design
Design
Rugged aluminum housing with IP65/NEMA 4x degree of protection, resistant to vibration and shock, with high electromagnetic compatibility
- Scratch-resistant, anti-glare mineral glass screen, provides high mechanical protection against pressure and scratching
- 16 million colors
- Wide reading angle of up to 170° horizontally and vertically
- Video ports: DisplayPort
- Interfaces: 2 x USB (internal), 1x ExtLink
- Power supply: 24 V DC
- Ambient temperature during operation: 0°C … 45°C
The operator control units are available in the following versions:
- IFP1200 V2 PRO (1 280 x 800):
- Prepared for support arm without extension components (flange on top)
- Prepared for pedestal/extension components (flange below)
- Prepared for support arm and extension components (round tube connection)
- IFP1500 V2 PRO (1 920 x 1 080):
- Prepared for support arm without extension components (flange on top)
- Prepared for pedestal/extension components (flange below)
- Prepared for support arm and extension components (round tube connection)
- IFP1900 V2 PRO (1 920 x 1 080):
- Prepared for support arm without extension components (flange on top)
- Prepared for pedestal/extension components (flange below)
- Prepared for support arm and extension components (round tube connection)
- IFP2200 V2 PRO (1 920 x 1 080):
- Prepared for support arm without extension components (flange on top)
- Prepared for pedestal/extension components (flange below)
- Prepared for support arm and extension components (round tube connection)
- IFP2400 V2 PRO (1 920 x 1 080):
- Prepared for support arm without extension components (flange on top)
- Prepared for pedestal/extension components (flange below)
- Prepared for support arm and extension components (round tube connection)
- Prepared for portrait mounting
Application
SIMATIC IFP PRO and SIMATIC IFP PRO ETH are designed for use directly on the machine in tough environmental conditions where the combination of ruggedness and maximum reliability is a major priority.
The Industrial Flat Panels are used wherever the computing unit (IPC) and the operator/display unit must be installed remotely from one another for technical or application-related reasons. The compact and versatile SIMATIC IFP PRO/ETH operator panels can be integrated perfectly into many machines and production and automation systems.
Thanks to the low-profile design, it can also be used in confined spaces.
The monitor is used in both factory and process automation, as support-arm or pedestal-mounted versions.
The SIMATIC Industrial Flat Panel PRO Advantage
- Direct mounting on the machine – without control cabinet
- Enhancement of the machine by the modern, slim design
- Compact design ideal for applications with little space available
- Can be positioned up to 100 m away via HDBaseT
- High shock and vibration resistance as well as extremely high electromagnetic compatibility ensure failure safety and a long service life
- Intuitive operation and more space for visualization due to widescreen format, and greater resistance to corrosive cleaning agents and scratches thanks to capacitive multitouch glass front
- Greater flexibility in the design of distributed operating concepts due to the Extended versions of the IFPs
- The various mounting options offer complete flexibility when choosing support arm model and manufacturer
- Standard connecting cables can be used for easier commissioning and maintenance
- Savings in time and costs due to service-friendly equipment construction
