SITRANS Magnetic Flow Meter (FM) Transmitters
Siemens’ range of SITRANS MAG Transmitters (Magnetic Flow Meter transmitters) are designed to tackle a range of environments – be sure to see the subcategories at the bottom of the page for specific applications.

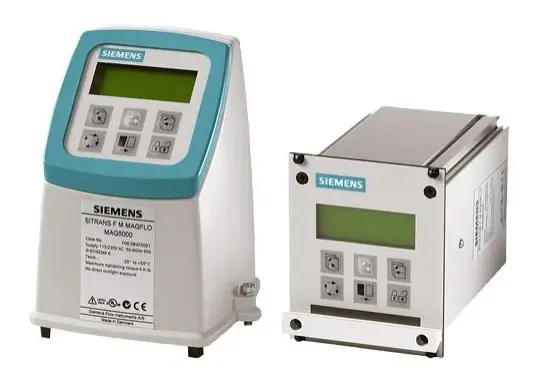

At the front of the selection, the MAG 5000 and MAG 6000 transmitters are engineered for high performance, easy installation, commissioning and maintenance.
The transmitters evaluate the signals from the SITRANS Magnetic Flow sensors, with PROFIBUS PA/DP, DeviceNet, FOUNDATION Fieldbus, HART, and Modbus RTU communication available. The MAG 5000 and MAG 6000 primarily differ in measuring error range:
Transmitter types
- MAG 5000: Max. measuring error ± 0.4 % ± 1 mm/s (incl. sensor)
- MAG 6000: Max. measuring error ± 0.2 % ± 1 mm/s (incl. sensor)
There are multiple functional outputs for process control, minimum configuration with analogue, pulse/frequency and relay output (status, flow direction, limits).
The SITRANS F M MAG 6000 I / MAG 6000 I Ex transmitter is designed for the demands in the process industry. The robust die-cast aluminium housing provides superb protection, even in the most harsh industrial environments. Full input and output functionality is given even in the Ex version.
Applications
The SITRANS F M flowmeters are suitable for measuring the flow of almost all electrically conductive liquids, pastes and slurries.
The MAG5000 and MAG6000 transmitters are only compatible with the following flow sensors, which is required for flow measurement.
- SITRANS FM MAG 1100: Small sizes and wafer design
- SITRANS FM MAG 1100 F: Food and pharma applications
- SITRANS FM MAG 5100 W: Water applications
- SITRANS FM MAG 3100: Chemical and process applications
- SITRANS FM MAG 3100 P: Comprehensive product program
Benefits
Superior signal resolution for optimum turn down ratio
- Digital signal processing with many possibilities
- Unique SensorProm technology – stores critical, flow sensor specific data
- Automatic reading of SENSORPROM data for easy commissioning
- User configurable operation menu with password protection
- Totalizer for forward, reverse and net flow
- Batch control (MAG 6000 only)
- Full range of Ex-rated flowmeters with intrinsically safe rated input and outputs
