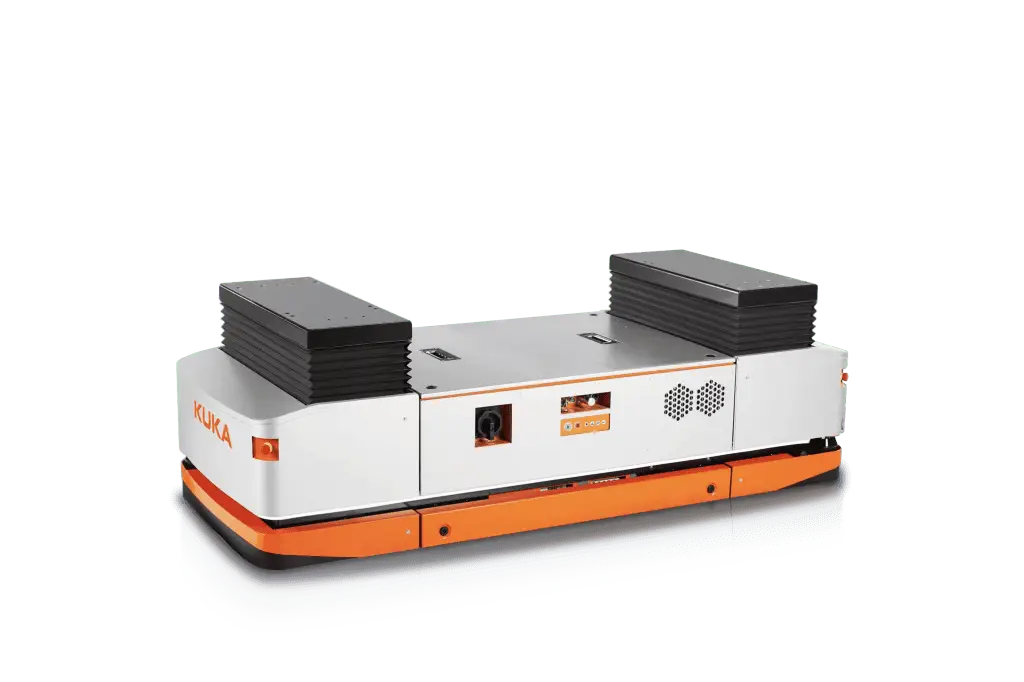

KUKA KMP 1500 omni
KUKA KMP 1500omni is an autonomous, omnidirectional and flexible AMR with 1500kg load capacity, and a precise lifting mechanism that makes production mobile and fit for Industry 4.0.
To purchase the KMP 1500 omni or to discuss your specific requirements, please speak with our team.
Overview
The solution for a flexible production process.
The KUKA KMP 1500 is the answer to the increasing demand of production departments for shorter response times and greater flexibility in their manufacturing concepts. Predefined routes and rigid processes are a thing of the past in the factory of the future. This is why KUKA develops intelligent, autonomous vehicles that supply materials to robots and machines with perfect timing. The KMP 1500 makes flexible production possible to an extent that has been unimaginable before.
The KMP 1500 is an autonomously controlled platform that integrates seamlessly into the production process. The vehicle is also excellently suited to the matrix body shop. The KMP 1500 independently and autonomously handles the transport of the products through all process steps.
This production concept from KUKA enables you to optimise your logistics management. The KMP 1500 provides cost-effective support for your warehouse organisation or between manufacturing processes – and is used only as needed.
Purchase the KMP 1500P diffDrive now. Please speak with our team.
Benefits
KUKA Mobile Platform 1500: your advantages
The KMP 1500 is an omnidirectional, mobile platform that is perfectly suited to the automation processes of Industrie 4.0.
Unrestricted and precise maneuvering
The KUKA omniMove drive technology allows the KMP 1500 to move in any direction from a standing position. The sophisticated wheel technology allows for precise positioning with an accuracy of +/- 5 mm even in tight spaces. This results in space-saving and highly precise automation solutions for logistics.
Autonomous, flexible warehouse management
The KMP 1500 autonomously fetches the required components or returns them to the warehouse after processing. Thanks to the KUKA Navigation Solution, it can move about freely and without conventional guidance or navigation elements.
This makes integration into modified environments much easier and increases efficiency in logistics management.
Strong, safe and reliable
Features
KMP 1500: the next level of automation in production facilities
Safety features
- Four emergency stops
- Blinker to indicate the direction of travel
- LED signaling lamp and two laser scanners with safety and warning sensors for 360-degree monitoring
Energy and power supply
- Rechargeable Li-ion battery pack with 54 Ah capacity and a minimum operating time of three hours
- Can be charged via direct cable or floor contact plate
Wireless interfaces
- Configuration and programming possible without cables
- Remote control
Hardware components
- Bodyshell
- KUKA motor
- Rigid axle
- Swing axle
- Gearing for connection of the wheel system
KUKA Navigation Solution - Basic
The sophisticated navigation system enables the mobile platform to navigate autonomously without risk of collision and without artificial markings.
KUKA Sunrise.OS
The integrated KUKA Sunrise.OS controller features all interfaces required for standard robots and is easy to expand.
KUKA Mecanum wheel
KMP1500: Optional components
The KMP 1500 is versatile and modular and can be expanded to include additional functions. The following features are optionally available:
- Electronic lift system
- Floor contact plate for charging
- Charger up to 80A
- Wireless remote control
- Lith-ion expansion to 106 Ah for at least eight hours of operating time
Purchase the KMP 1500 omni now. Please speak with our team.
