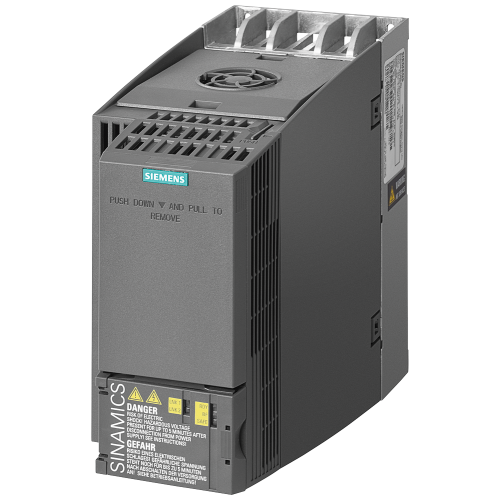

6SL32101KE213AF1

SINAMICS G120C, PROFINET, EtherNet/IP, IP20 / UL open type, FSB,A, 380-480 V, 3AC, 5,50 kW

Manufacturer's No: 6SL3210-1KE21-3AF1     Manufacturer: Siemens
SINAMICS G120C, PROFINET, EtherNet/IP, IP20 / UL open type, FSB,A, 380-480 V, 3AC, 5,50 kW

Availability In Stock

£1,039.52
  • Rated power: 3-phase AC 380-480V +/-10% 47-63Hz
  • Low overload capacity: 5.5kW at 150% for 3 seconds, 110% for 57 seconds, 100% for 240 seconds
  • High overload capacity: 4.0kW at 200% for 3 seconds, 150% for 57 seconds, 100% for 240 seconds
  • Integrated filter class A for reduced electromagnetic interference
  • External 24V I/O interface: 6 digital inputs, 2 digital outputs, 1 analog input, 1 analog output, 1 motor temperature sensor
  • Safe Torque Off feature for enhanced safety
  • Integrated Fieldbus communication: PROFINET-PN
  • Protection rating: IP20/UL OPEN TYPE
  • Compact size: FSB 196 x 100 x 203 mm (H x W x D)

Accessories

Product video
Product video
Instructional video
Instructional video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video
Instructional video
Instructional video


Product

Manufacturer Material ID -
6SL3210-1KE21-3AF1
Net Weight -
3.06kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
GB
Export Control Regulations -
AL: 9I999 / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704

Technical Specification

-
Siemens
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
2
Degree of protection (IP rating) -
IP20
Mains frequency -
50/60 Hz
Application in domestic- and commercial area permitted -
Application in industrial area permitted -
Depth -
203 Millimetre
Height -
196 Millimetre
Integrated breaking resistance -
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
4 Kilowatt
Max. output at quadratic load at rated output voltage -
5.5 Kilowatt
Max. output frequency -
550 Hertz
Max. output voltage -
480 Volt
Nominal output current I2N -
13 Ampere
Number of analogue inputs -
1
Number of analogue outputs -
1
Number of digital inputs -
6
Number of digital outputs -
2
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
6
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
1
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
1
Number of HW-interfaces USB -
1
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
-20 Percentage
Supporting protocol for EtherNet/IP -
Supporting protocol for other bus systems -
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Type of converter -
U converter
Width -
100 Millimetre
With PC connection -
