6SL32250BE322AA0

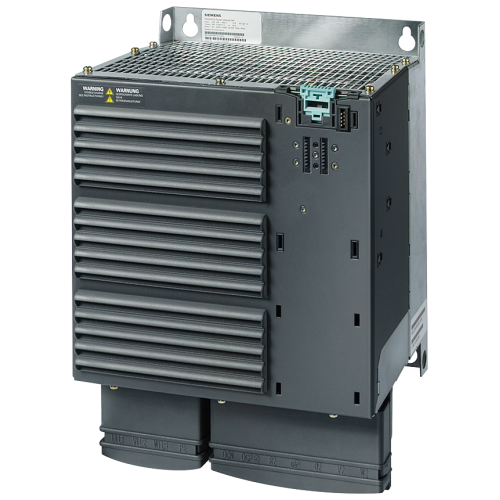

SINAMICS PM250, IP20 / UL open type, FSD, A, 380-480 V 3 AC, 30,00 kW

Manufacturer's No: 6SL3225-0BE32-2AA0     Manufacturer: Siemens
SINAMICS PM250, IP20 / UL open type, FSD, A, 380-480 V 3 AC, 30,00 kW

Availability Back Order

£4,538.77
  • Power Module: SINAMICS G120 PM250
  • Input: 3AC 380-480V +/-10%, 47-63Hz
  • Output High Overload: 22kW for 200% 3s, 150% 57s, 100% 240s
  • Output Light Overload: 30kW for 150% 3s, 110% 57s, 100% 240s
  • Ambient Temperature: 0 to +50°C (High Overload), 0 to +40°C (Light Overload)
  • Dimensions: 512 x 275 x 204 mm (HxWxD)
  • FSD Protection: IP20
  • Features: Built-in CL. A filter, Regeneration capability
  • Excludes: Control unit and BOP

Selectable mandatory product

Accessories

Product video
Instructional video
Instructional video
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Product video
Instructional video
Instructional video


Product

Manufacturer Material ID -
6SL3225-0BE32-2AA0
Net Weight -
16.32kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704

Technical Specification

-
Siemens
Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Number of interfaces PROFINET -
-
Max. output voltage -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Mains frequency -
50/60 Hz
4-quadrant operation possible -
Application in industrial area permitted -
Depth -
204 Millimetre
Height -
512 Millimetre
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
22 Kilowatt
Max. output at quadratic load at rated output voltage -
30 Kilowatt
Max. output frequency -
550 Hertz
Nominal output current I2N -
60 Ampere
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
-10 Percentage
Type of converter -
U converter
Width -
275 Millimetre

Availability Back Order

£4,538.77
Sign in or Register for customer prices.
