6SL32101PE143UL1

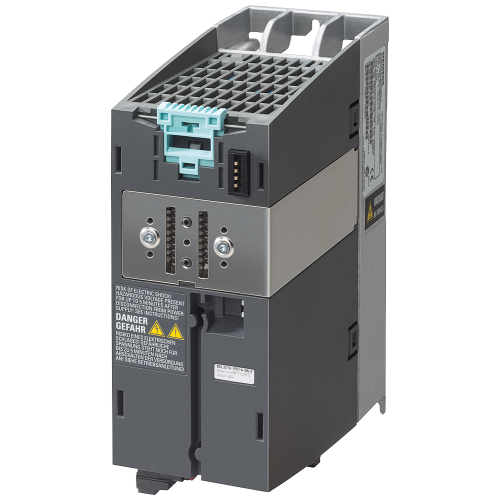

SINAMICS PM240-2, IP20 / UL open type, FSA, 380-480 V 3 AC, 1,50 kW

Manufacturer's No: 6SL3210-1PE14-3UL1     Manufacturer: Siemens
SINAMICS PM240-2, IP20 / UL open type, FSA, 380-480 V 3 AC, 1,50 kW

Availability In Stock

£364.23
  • SINAMICS Power Module PM240-2 unfiltered
  • Integrated braking chopper
  • Input: 380-480 V 3 AC +/-10% 47-63 Hz
  • Power high overload: 1.1 kW at 200% for 3s, 150% for 57s, 100% for 240s
  • Power low overload: 1.5 kW at 150% for 3s, 110% for 57s, 100% for 240s
  • Ambient temperature: -10 to +50 °C
  • Size: 196 x 73 x 165 mm (HxWxD)
  • Degree of protection: IP20
  • Does not include Control Unit and operating unit
  • Compatible with CU firmware version V4.6

Selectable mandatory product

Accessories

Product video
Instructional video
Instructional video
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Product video
Instructional video
Instructional video


Product

Manufacturer Material ID -
6SL3210-1PE14-3UL1
Net Weight -
1.70kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
GB
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704

Technical Specification

-
Siemens
Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Number of interfaces PROFINET -
-
Max. output voltage -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Mains frequency -
50/60 Hz
Depth -
165 Millimetre
Height -
196 Millimetre
Integrated breaking resistance -
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
1.1 Kilowatt
Max. output at quadratic load at rated output voltage -
1.5 Kilowatt
Max. output frequency -
550 Hertz
Nominal output current I2N -
4.1 Ampere
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
-10 Percentage
Type of converter -
U converter
Width -
73 Millimetre

Availability In Stock

£364.23
