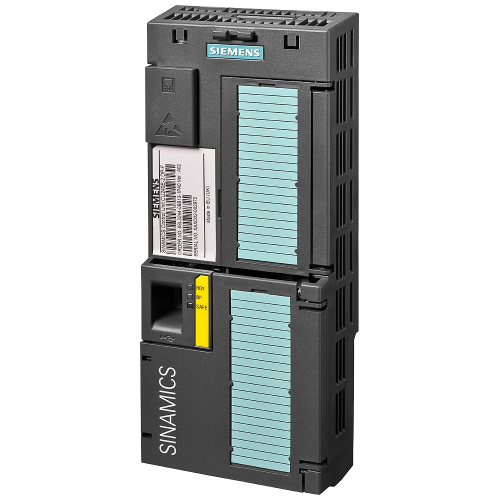

CU240E-2 DP F - Profibus DP with STO, SS1, SLS

6SL32440BB131PA1

CU240E-2 DP F - Profibus DP with STO, SS1, SLS

Produced by Siemens

Availability Back Order

Price - £453.87
SINAMICS G120 CU240E-2 DP-F Control Unit E-type Safety Integrated STO F-type SS1, SLS, SSM, SDI PROFIBUS DP 6 DI, 3 DQ, 2 AI, 2 AQ, max. 3 F-DI PTC/KTY interface USB and SD/MMC interface Degree of protection IP20 Ambient temperature 0 to +50 °C without Power Module
No alternatives available for this product.
Product
Manufacturer Material ID -
6SL3244-0BB13-1PA1
Net Weight -
0.50kg
Additional Product Information
Commodity Code -
85049099
Country of Origin -
GB
Export Control Regulations -
AL: 9I999 / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704
Technical Specification
Width -
73 Millimetre
Height -
199 Millimetre
Depth -
46 Millimetre
Number of digital inputs -
6
Number of digital outputs -
3
Number of analogue inputs -
2
Number of analogue outputs -
2
Number of HW-interfaces RS-232 -
1
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
4
Number of HW-interfaces USB -
1
Degree of protection (NEMA) -
1
