6SL32430BB301FA0

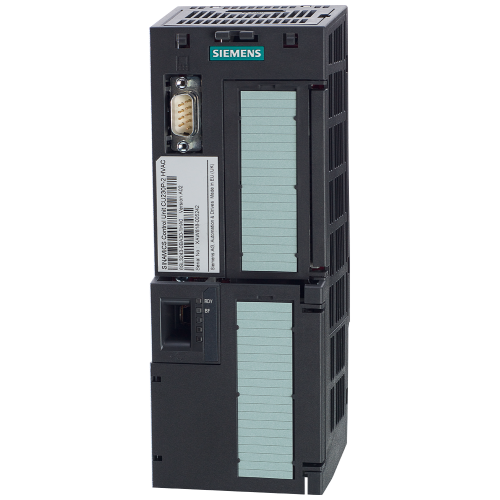

SINAMICS CU230P-2 PN

Manufacturer's No: 6SL3243-0BB30-1FA0     Manufacturer: Siemens
SINAMICS CU230P-2 PN

Availability In Stock

£420.38
  • SINAMICS G120 Control Unit CU230P-2 PN
  • PROFINET integration
  • 6 DI, 3 DO, 4 AI, 2 AO
  • 1 motor temperature sensor input
  • 2 PSU-out (10 V DC, 24 V DC)
  • 1 PSU-in (24 V DC)
  • USB and MMC interface
  • Degree of protection: IP20

Mandatory additional product

Accessories

Product video
Instructional video
Instructional video
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Product video
Instructional video
Instructional video


Product

Manufacturer Material ID -
6SL3243-0BB30-1FA0
Net Weight -
0.62kg

Additional Product Information

Commodity Code -
85049099
Country of Origin -
GB
Export Control Regulations -
ECCN : EAR99 / AL : 9I999
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704

Technical Specification

-
Siemens
Number of HW-interfaces other -
-
Degree of protection (IP) -
UN
Mains voltage -
- Volt
Mains frequency -
UN
Type of converter -
UN
Number of phases output -
UN
Max. output frequency -
- Hertz
Max. output at linear load at rated output voltage -
- Kilowatt
Max. output at quadratic load at rated output voltage -
- Kilowatt
Relative symmetric net voltage tolerance -
- Percentage
Relative symmetric net frequency tolerance -
- Percentage
Max. output voltage -
- Volt
Nominal output current I2N -
- Ampere
Number of interfaces PROFINET -
2
Number of phases input -
Other
Degree of protection (NEMA) -
1
Depth -
65.5 Millimetre
Height -
199 Millimetre
Number of analogue inputs -
2
Number of analogue outputs -
2
Number of digital inputs -
6
Number of digital outputs -
3
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
1
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
5
Number of HW-interfaces USB -
1
Supporting protocol for EtherNet/IP -
Supporting protocol for PROFIsafe -
Supporting protocol for TCP/IP -
Width -
73 Millimetre
With PC connection -

Availability In Stock

£420.38
