770-703

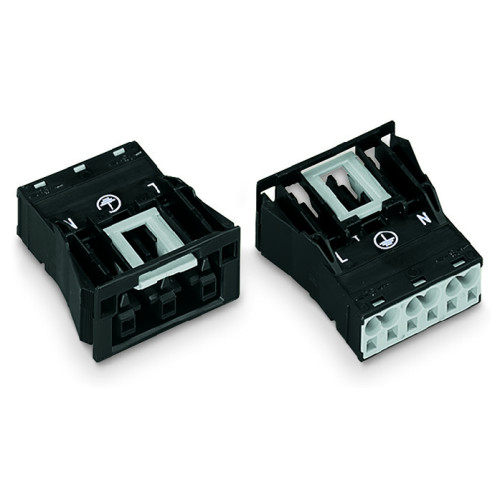

Snap-in socket, 3-pole, Cod. A, 4, 00 mm, black

Manufacturer's No: 770-703     Manufacturer: WAGO
Snap-in socket, 3-pole, Cod. A, 4, 00 mm, black

Availability In Stock

Once added to the cart, you can split this pack for a charge of £16.00

£1.84
  • Snap-in socket
  • 3-pole
  • Cod. A
  • Wire size: 4.00 mm²
  • Color: Black

Accessories

Lockout cap, 3-pole, for cutouts, Plastic, black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-643
Price £0.70
Back Order

Lockout cap, 3-pole, for cutouts, Plastic, white

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-693
Price £0.70
Back Order

Lockout cap, 12-pole, separable, for sockets, Plastic, black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-201
Price £0.44
Back Order

Lockout cap, 12-pole, separable, for sockets, Plastic, white

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-221
Price £0.44
Back Order


Product

Manufacturer Material ID -
770-703
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
100
RoHs Compliance -
YES
UNSPSC -
39121402

Technical Specification

-
Wago

Mechanical data

Length soldering pin -
- Millimetre
Wall thickness housing -
- Millimetre
Material housing -
Polyamide (PA)
Connection type -
Spring clamp connection
Contact material -
CuSn
Height -
17.5 Millimetre
Housing material -
Polyamide (PA)
Length -
37.5 Millimetre
Width -
35.5 Millimetre

General data

Colour housing -
Black
Locking mechanism -
Integrated in plug-in connector
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Pole codification -
L, N, PE
Colour coding/contact insert -
Black
Angle of inclination -
0 Degrees
Angle of plug -
Straight
Built-in version -
Snap-in/screw-in device
Colour of the separate adapter piece -
Without adapter piece
Connection cross section (fine-strand) -
0.5 Square millimetre
Connection cross section (solid-core) -
0.5 Square millimetre
Connection size thread -
No thread connection
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.06583 Kilowatthour
Halogen free -
Housing colour -
Black
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Model -
Bus
Number of connections per pole -
2
Number of poles -
3
Pollution degree -
3
Surface finish contacts -
Tinned
Type of locking -
Integrated in plug-in connector

Electrical data

Rated current -
25 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt

Availability In Stock

Once added to the cart, you can split this pack for a charge of £16.00

£1.84
