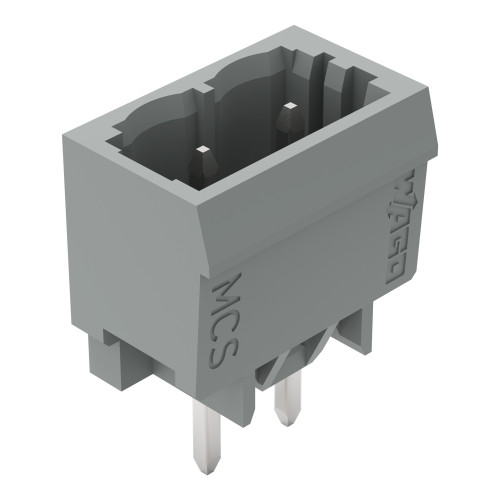

231-132/001-000

THT male header, 1.0 x 1.0 mm solder pin, straight, Pin spacing 5 mm, 2-pole, gray

Manufacturer's No: 231-132/001-000     Manufacturer: WAGO
THT male header, 1.0 x 1.0 mm solder pin, straight, Pin spacing 5 mm, 2-pole, gray

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£0.37
  • THT male header
  • 1.0 x 1.0 mm solder pin, straight
  • Pin spacing: 5 mm
  • 2-pole
  • Color: gray

Accessories

Coding Key, Snap-On Type Light Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 231-129
Price £0.07
Back Order

Spacer, for formation of groups, light gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 231-500
Price £0.03
Back Order


Product

Manufacturer Material ID -
231-132/001-000
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
200
RoHs Compliance -
YES
UNSPSC -
39121402

Technical Specification

-
Wago
Diameter connection pin -
- Millimetre
Colour housing -
Grey
Operation temperature -
-60 Degrees celsius
Angle PCB/contact -
90° (upwards vertical)
Connector model -
Free connector
Contact type -
Pin
Housing colour -
Grey
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
5 Millimetre
Material insulation body -
Thermoplastic
Material of contact surface -
Tin
Modular spacing connections -
5 Millimetre
Modular spacing contacts -
5 Millimetre
Number of plug-in contact rows -
1
Number of poles -
2
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
12 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
320 Volt
Suitable for PCB thickness -
1.5 Millimetre
Type of banding -
None
Type of connection -
Flexible PCB-connector
Type of electric connection -
Soldering connection
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£0.37
