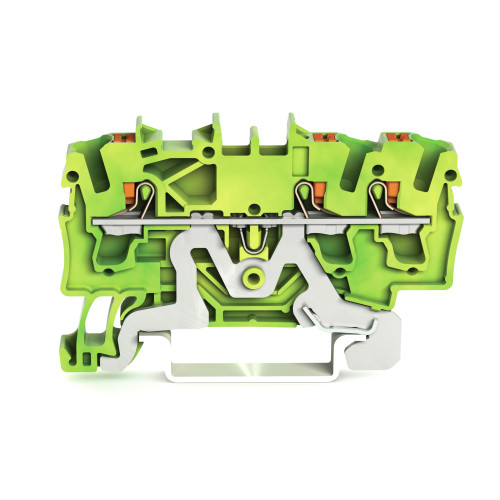

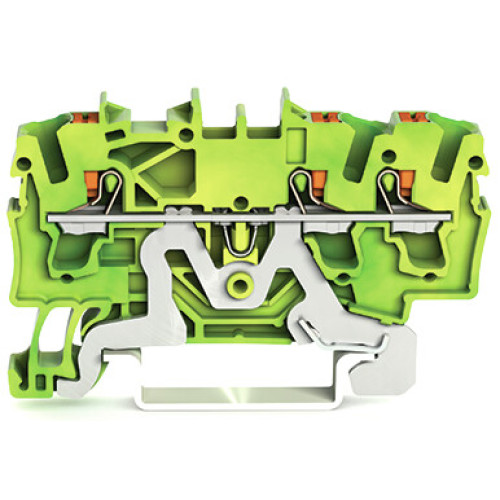

3-conductor ground terminal block with push-button 2.5 mm, green-yellow

2202-1307

3-conductor ground terminal block with push-button 2.5 mm, green-yellow

Produced by WAGO

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

Price - £2.4525
List Price £3.27
3-conductor ground terminal block with push-button 2.5 mm with test port side and center marking for DIN-rail 35 x 15 and 35 x 7.5 Push-in CAGE CLAMP
No alternatives available for this product.
Product
Manufacturer Material ID -
2202-1307
Net Weight -
0.01kg
Additional Product Information
Commodity Code -
85369010
Country of Origin -
DE
UNSPSC -
39121410
Technical Specification
Length -
59.2 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5.2 Millimetre
Height at lowest possible mounting height -
32.9 Millimetre
Operating temperature -
105 Degrees celsius
Number of levels -
1
Number of clamp positions per level -
3
Connectable conductor cross section solid-core -
0.75 Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section multi-wired -
0.25 Square millimetre
