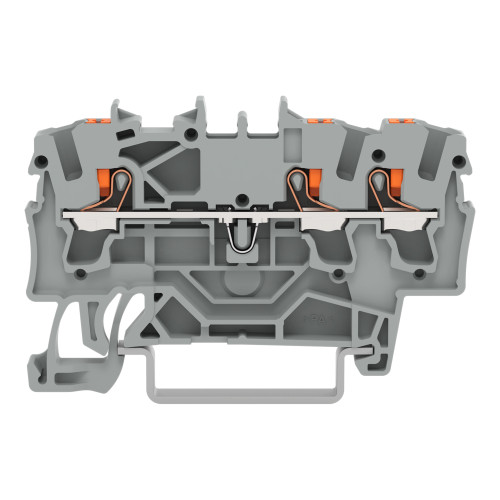

3-conductor through terminal block with push-button 2.5 mm, gray

2202-1301

3-conductor through terminal block with push-button 2.5 mm, gray

Produced by WAGO

Availability In Stock

Price - £0.6675
List Price £0.89
3-conductor through terminal block with push-button 2.5 mm with test port side and center marking for DIN-rail 35 x 15 and 35 x 7.5 Push-in CAGE CLAMP
No alternatives available for this product.
Product
Manufacturer Material ID -
2202-1301
Net Weight -
0.01kg
Additional Product Information
Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
None
UNSPSC -
39121410
Technical Specification
Length -
59.2 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5.2 Millimetre
Height at lowest possible mounting height -
32.9 Millimetre
Rated voltage -
800 Volt
Operating temperature -
105 Degrees celsius
Number of levels -
1
Number of clamp positions per level -
3
Connectable conductor cross section solid-core -
0.75 Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section multi-wired -
0.25 Square millimetre
Rated current In -
24 Ampere
