285-194

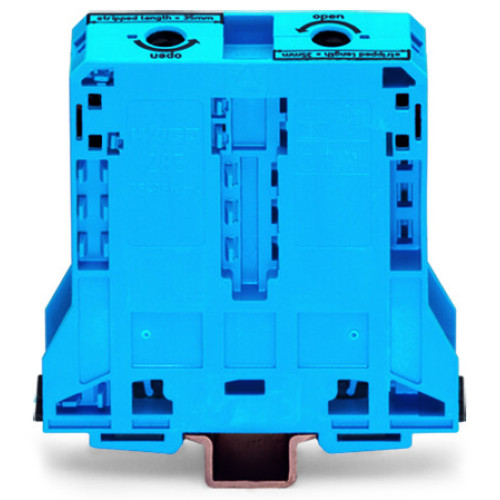

2-Conductor Through Terminal Block, Blue

Manufacturer's No: 285-194     Manufacturer: WAGO
2-Conductor Through Terminal Block, Blue

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£25.53
  • Terminal block for DIN 35 x 15 rail
  • 2-conductor with POWER CAGE CLAMP
  • 95.00 mm² capacity
  • Lateral marker slots
  • Color: Blue

Accessories

Power Tap, For 95 mm High-Current Tbs Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-407
Price £2.71
Back Order

Adjacent Jumper, Insulated Nominal Current 232 A For 1 Jumper Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-495
Price £6.50
In Stock

Protective Warning Marker, With High-Voltage Symbol, Black Yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-170
Price £0.45
Back Order

Screwless End Stop, 14 mm Wide Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 249-197
Price £3.61
Back Order

Pivoting Group Marker Carrier, Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 249-105
Price £0.24
Back Order

Marker Carrier, For Power Cage Clamp 35/50/95 mm Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-442
Price £0.25
Back Order

Fixing element; for 95 mm high-current terminal blocks

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-168
Price £1.47
Back Order

Protective warning marker, yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-175
Price £0.38
Back Order


Product

Manufacturer Material ID -
285-194
Net Weight -
0.26kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Minimum Order Quantity -
5
RoHs Compliance -
YES
UNSPSC -
39121410

Technical Specification

-
Wago
Length -
107 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
25 Millimetre
Height at lowest possible mounting height -
101 Millimetre
Connection position -
Sideways
Colour -
Blue
Connectable conductor cross section fine-strand with cable end sleeve -
25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
25 Square millimetre
Connectable conductor cross section multi-wired -
25 Square millimetre
Connectable conductor cross section solid-core -
25 Square millimetre
Depth -
101 Millimetre
Height -
107 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
232 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
25 Millimetre
