285-1184

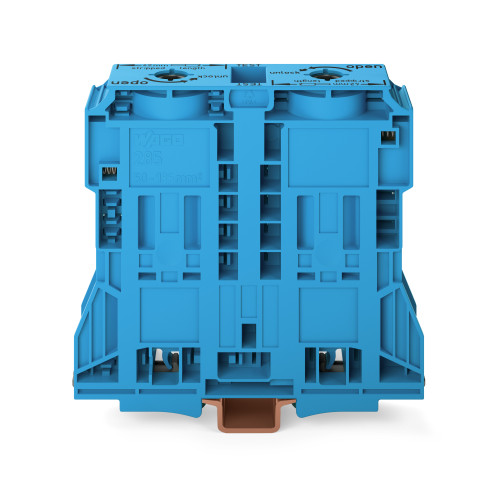

2-Conductor Through Terminal Block, Blue

Manufacturer's No: 285-1184     Manufacturer: WAGO
2-Conductor Through Terminal Block, Blue

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£41.75
  • Terminal block for DIN 35 x 15 rail
  • 2-conductor with POWER CAGE CLAMP
  • Accommodates wires up to 185 mm²
  • Lateral marker slots for easy identification
  • Color: Blue

Accessories

Screwless End Stop, 14 mm Wide Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 249-197
Price £3.61
Back Order

Protective Warning Marker, With High-Voltage Symbol, Black Yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-1177
Price £1.39
Back Order

Adjacent Jumper, Insulated Nominal Current 309 A Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-1171
Price £16.38
Back Order

Power tap; for 185 mm high-current terminal blocks

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-1175
Price £4.08
Back Order

Fixing Element, For 185 mm High-Current Terminal Blocks Orange

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-1179
Price £1.71
Back Order


Product

Manufacturer Material ID -
285-1184
Net Weight -
0.54kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
5
UNSPSC -
39121410

Technical Specification

Length -
130 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
32 Millimetre
Height at lowest possible mounting height -
116 Millimetre
Connection position -
Sideways
Colour -
Blue
Connectable conductor cross section fine-strand with cable end sleeve -
50 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
50 Square millimetre
Connectable conductor cross section multi-wired -
50 Square millimetre
Connectable conductor cross section solid-core -
50 Square millimetre
Depth -
116 Millimetre
Height -
130 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
353 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
32 Millimetre
