3LD25040TK53

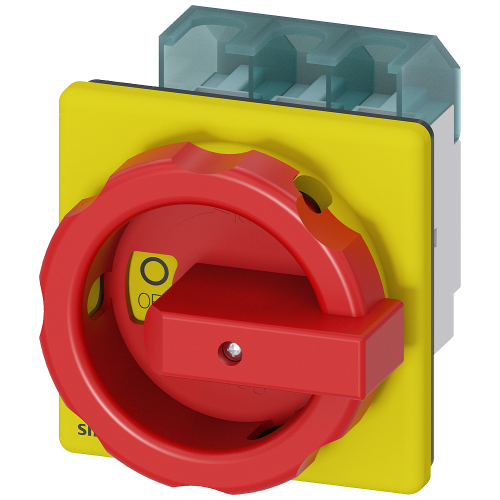

SENTRON, 3LD switch disconnector, EMERGENCY OFF switch, 3-pole, Iu: 63 A

Manufacturer's No: 3LD2504-0TK53     Manufacturer: Siemens
SENTRON, 3LD switch disconnector, EMERGENCY OFF switch, 3-pole, Iu: 63 A

View 3D

Availability In Stock

£54.80
  • Product: SENTRON Switch Disconnector 3LD
  • Type: Emergency switching-off switch
  • Configuration: 3-pole
  • Rated Current: 63 A
  • Operating Power at AC-23 A 400 V: 22 kW
  • Mounting: Front-mounted with rotary operating mechanism
  • Handle Color: Red/Yellow
  • Handle Mounting: 4-hole

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3LD2504-0TK53
Net Weight -
0.41kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

-
Siemens
Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Switching power at 400 V -
- Kilowatt
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Red
Degree of protection (IP), front side -
IP65
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Number of switches -
1
Rated operation power at AC-23, 400 V -
22 Kilowatt
Rated operation power at AC-3, 400 V -
19 Kilowatt
Rated permanent current at AC-21, 400 V -
63 Ampere
Rated permanent current at AC-23, 400 V -
43 Ampere
Rated permanent current Iu -
63 Ampere
Rated short-time withstand current lcw -
1.26 kiloampere
Suitable for front mounting 4-hole -
Type of control element -
Short thumb-grip
Type of electrical connection of main circuit -
Frame clamp
Version as emergency stop installation -
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -
