SENTRON, 3LD switch disconnector, main control switch, 4-pole, Iu: 25 A

3LD21131TL51

SENTRON, 3LD switch disconnector, main control switch, 4-pole, Iu: 25 A

Produced by Siemens

Availability Back Order

Price - £50.71

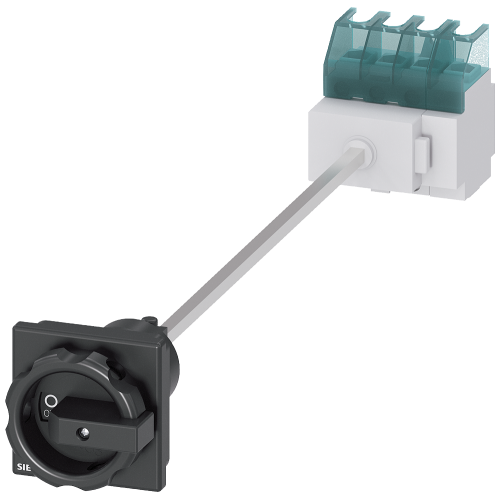

SENTRON, Switch disconnector 3LD, main switch, 4-pole, Iu: 25 A, Operating power / at AC-23 A at 400 V: 9.5 kW, floor mounting with door coupling, rotary operating mechanism, black, 4-hole mounting of the handle
No alternatives available for this product.
Product
Manufacturer Material ID -
3LD2113-1TL51
Net Weight -
0.43kg
Additional Product Information
Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216
Technical Specification
Rated operation power at AC-3, 400 V -
8 Kilowatt
Rated permanent current Iu -
25 Ampere
Number of poles -
4
Number of switches -
1
Rated operation power at AC-23, 400 V -
10 Kilowatt
Rated short-time withstand current lcw -
0.64 kiloampere
Max. rated operation voltage Ue AC -
690 Volt
Rated permanent current at AC-21, 400 V -
25 Ampere
Rated permanent current at AC-23, 400 V -
20 Ampere
