3KF33252LF11

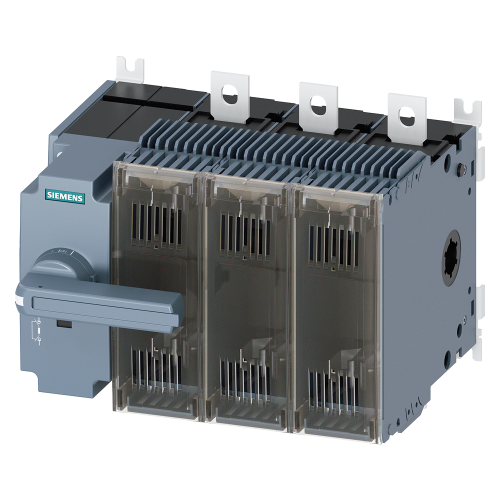

Switch disconnector with fuse 250 A, size 3, 3-pole for LV HRC fuse size 0

Manufacturer's No: 3KF3325-2LF11     Manufacturer: Siemens
Switch disconnector with fuse 250 A, size 3, 3-pole for LV HRC fuse size 0

Availability Back Order

£454.00
  • Switch disconnector with fuse
  • 250A current rating
  • Size 3, 3-pole configuration
  • Suitable for LV HRC fuse Sz. 0 and 1
  • Front operating mechanism on the left
  • Complete unit with direct operating mechanism
  • Gray flat terminal

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3KF3325-2LF11
Net Weight -
5.64kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operating voltage -
- Volt
Number of switches -
-
Rated permanent current at AC-23, 400 V -
- Ampere
Number of auxiliary contacts as normally open contact -
8
Number of auxiliary contacts as normally closed contact -
8
Number of auxiliary contacts as change-over contact -
0
Colour control element -
Grey
Device construction -
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V -
250 Ampere
Switching power at 400 V -
132 Kilowatt
Degree of protection (NEMA) -
Other
Cable entry -
Other
Conditioned rated short-circuit current Iq -
100 kiloampere
Degree of protection (IP), front side -
IP00
Max. rated operation voltage Ue AC -
690 Volt
Number of poles -
3
Position control element -
Front
Rated operation power at AC-23, 400 V -
132 Kilowatt
Rated permanent current Iu -
250 Ampere
Rated short-time withstand current lcw -
8 kiloampere
Suitable for floor mounting -
Suitable for fuses -
NH0, NH1
Type of control element -
Other
Type of electrical connection of main circuit -
Other
Version as main switch -
Version as safety switch -

Availability Back Order

£454.00
