5SY62107

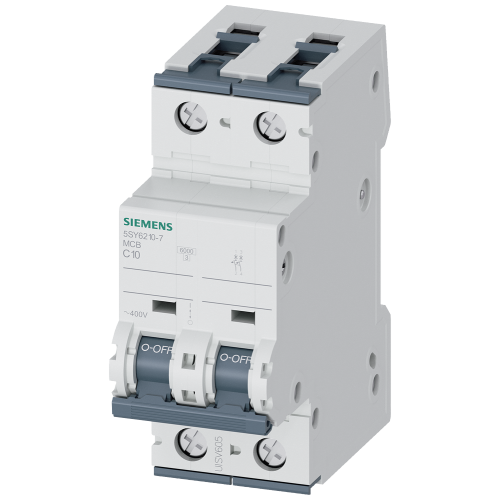

Miniature circuit breaker 400 V 6 kA, 2-pole, C, 10 A, D=70 mm

Manufacturer's No: 5SY6210-7     Manufacturer: Siemens
Miniature circuit breaker 400 V 6 kA, 2-pole, C, 10 A, D=70 mm

View 3D

Availability In Stock

£43.70
  • Miniature circuit breaker
  • Voltage: 400 V
  • Breaking capacity: 6 kA
  • Poles: 2
  • Trip curve: C
  • Current rating: 10 A
  • Dimensions: 70 mm

Selectable mandatory product

Accessories

Spacer 0.5 MW

Product Code - 5TG8240
Price £4.56
Back Order


Product

Manufacturer Material ID -
5SY6210-7
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

-
Siemens

Mechanical data

Built-in depth -
70 Millimetre

General data

Frequency -
50 Hertz
Release characteristic -
C
Degree of protection (IP) -
IP20
Number of protected poles -
2
Additional equipment possible -
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Number of poles (total) -
2
Pollution degree -
3
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
6 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
6 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
15 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
15 kiloampere
Recess depth -
70 Millimetre
Tripping characteristic (type/curve) -
C
Width in number of modular spacings -
2

Electrical data

Over voltage category -
3
Rated impulse withstand voltage Uimp -
4 Kilovolt
Current limiting class -
3
Rated current -
10 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated voltage -
400 Volt
Voltage type -
AC

Ambient conditions

Ambient temperature during operating -
-25 Degrees celsius

Availability In Stock

£43.70
