5SY43258

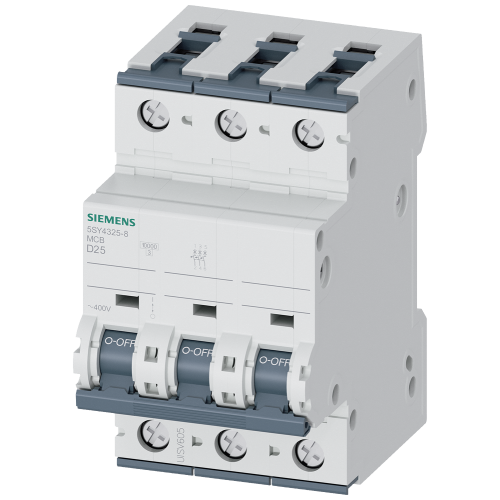

Miniature circuit breaker 400 V 10 kA, 3-pole, D, 25 A, D=70 mm

Manufacturer's No: 5SY4325-8     Manufacturer: Siemens
Miniature circuit breaker 400 V 10 kA, 3-pole, D, 25 A, D=70 mm

View 3D

Availability In Stock

£78.89
  • Miniature circuit breaker
  • Voltage: 400 V
  • Breaking capacity: 10 kA
  • Poles: 3
  • Current rating: 25 A
  • Dimensions: 70 mm

Spacer 0.5 MW

Product Code - 5TG8240
Price £4.56
Back Order


Product

Manufacturer Material ID -
5SY4325-8
Net Weight -
0.46kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

-
Siemens

Electrical data

Current limiting class -
-
Over voltage category -
3
Rated impulse withstand voltage Uimp -
4 Kilovolt
Rated current -
25 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated voltage -
400 Volt
Voltage type -
AC

Mechanical data

Built-in depth -
70 Millimetre

General data

Frequency -
50 Hertz
Release characteristic -
D
Degree of protection (IP) -
IP20
Number of protected poles -
3
Additional equipment possible -
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Number of poles (total) -
3
Pollution degree -
3
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
20 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
20 kiloampere
Recess depth -
70 Millimetre
Tripping characteristic (type/curve) -
D
Width in number of modular spacings -
3

Ambient conditions

Ambient temperature during operating -
-40 Degrees celsius
