5SY41058

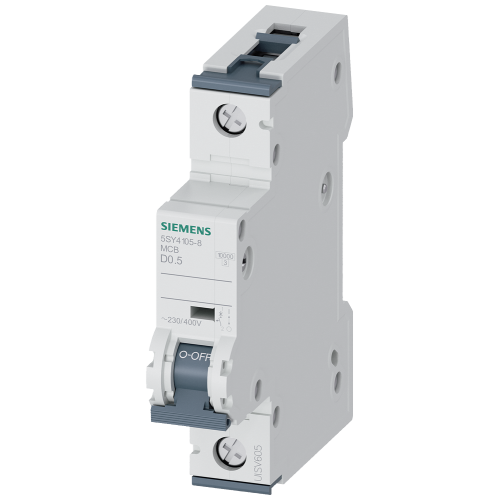

Miniature circuit breaker 230/400 V 10 kA, 1-pole, D, 0.5 A, D=70 mm

Manufacturer's No: 5SY4105-8     Manufacturer: Siemens
Miniature circuit breaker 230/400 V 10 kA, 1-pole, D, 0.5 A, D=70 mm

View 3D

Availability In Stock

£22.24
  • Miniature circuit breaker
  • Voltage: 230/400 V
  • Breaking capacity: 10 kA
  • Number of poles: 1
  • Current rating: 0.5 A
  • Dimensions: 70 mm

Spacer 0.5 MW

Product Code - 5TG8240
Price £4.76
Back Order
Presentation video
Presentation video
Product video


Product

Manufacturer Material ID -
5SY4105-8
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

-
Siemens
Current limiting class -
-
Built-in depth -
70 Millimetre
Release characteristic -
D
Degree of protection (IP) -
IP20
Rated impulse withstand voltage Uimp -
4 Kilovolt
Frequency -
50 Hertz
Over voltage category -
3
Degree of protection (IP rating) -
IP20
Number of protected poles -
1
Additional equipment possible -
Ambient temperature during operating -
-40 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Number of poles (total) -
1
Pollution degree -
3
Rated current -
0.5 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
35 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
35 kiloampere
Rated voltage -
400 Volt
Recess depth -
70 Millimetre
Tripping characteristic (type/curve) -
D
Voltage type -
AC
Width in number of modular spacings -
1

Availability In Stock

£22.24
