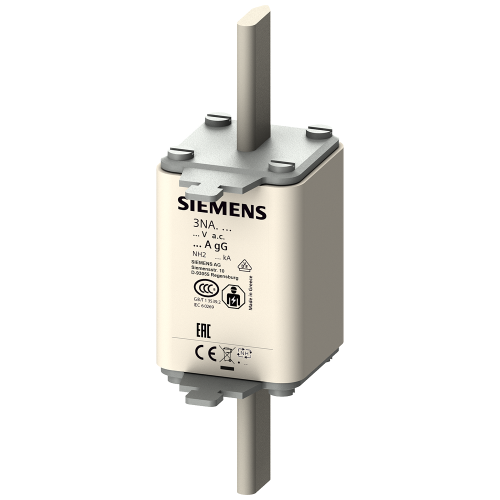

LV HRC fuse link, NH2, In: 250 A, gG, Un AC: 500 V, Un DC: 440 V

3NA3244

LV HRC fuse link, NH2, In: 250 A, gG, Un AC: 500 V, Un DC: 440 V

Produced by Siemens

Availability Back Order

Price - £40.87
LV HRC fuse element, NH2, In: 250 A, gG, Un AC: 500 V, Un DC: 440 V, Front indicator, live grip lugs LV HRC fuse link SENTRON 3NA3 for selective system and line protection. The LV HRC fuse system provides effective personal, equipment and line protection with reliable disconnection in the event of overload and short-circuit. The LV HRC fuse links are available from 2 A to 1250 A in the sizes 000, 00, 0, 1, 2, 3, 4 and 4a. The versions with communication and metering function in size 2 from 80 A to 315 A. SENTRON circuit protection devices - The safe choice. Now made smarter.
No alternatives available for this product.
Product
Manufacturer Material ID -
3NA3244
Net Weight -
0.46kg
Additional Product Information
Commodity Code -
85361090
Country of Origin -
GR
Export Control Regulations -
N / N
Minimum Order Quantity -
3
UNSPSC -
39121627
Technical Specification
Rated voltage -
500 Volt
Rated current -
250 Ampere
Rated switching capacity -
120 kiloampere
Rated voltage AC -
500 Volt
Power loss at rated current -
17 Watt
Rated voltage DC -
440 Volt
product_description -
250A HRC FUSELINK DIN NH2 GG 500V Volt
