2CDS273001R0404

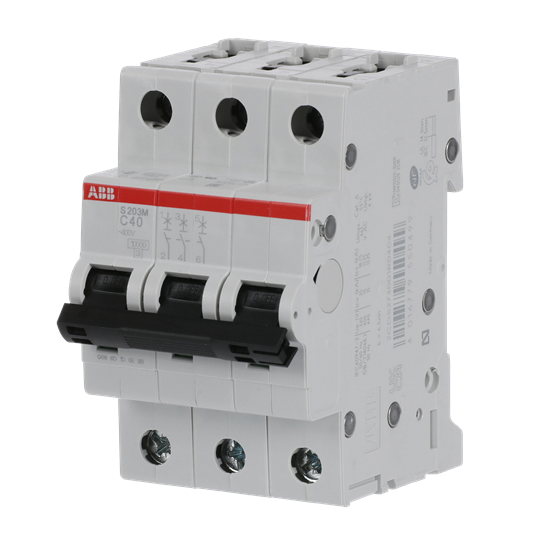

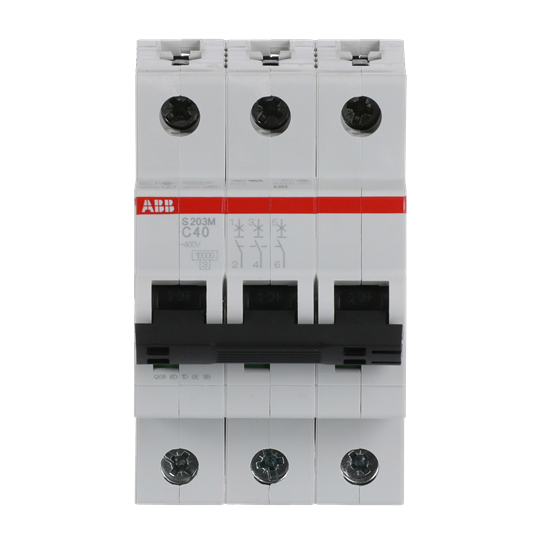

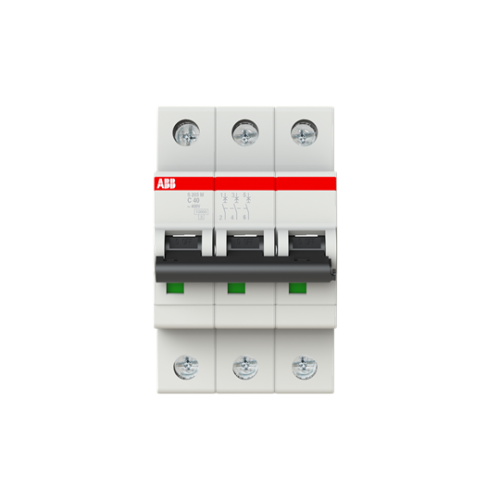

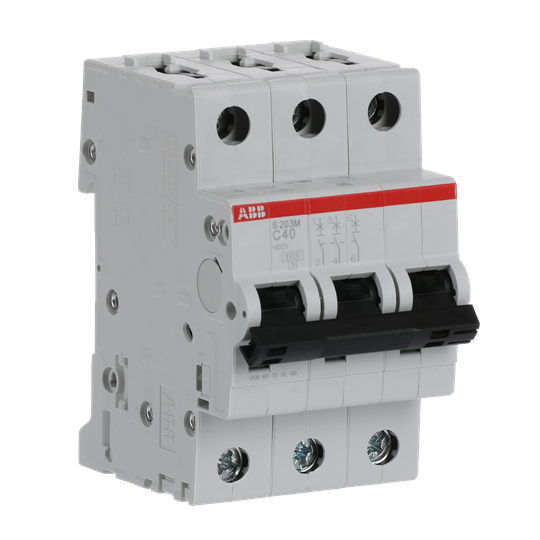

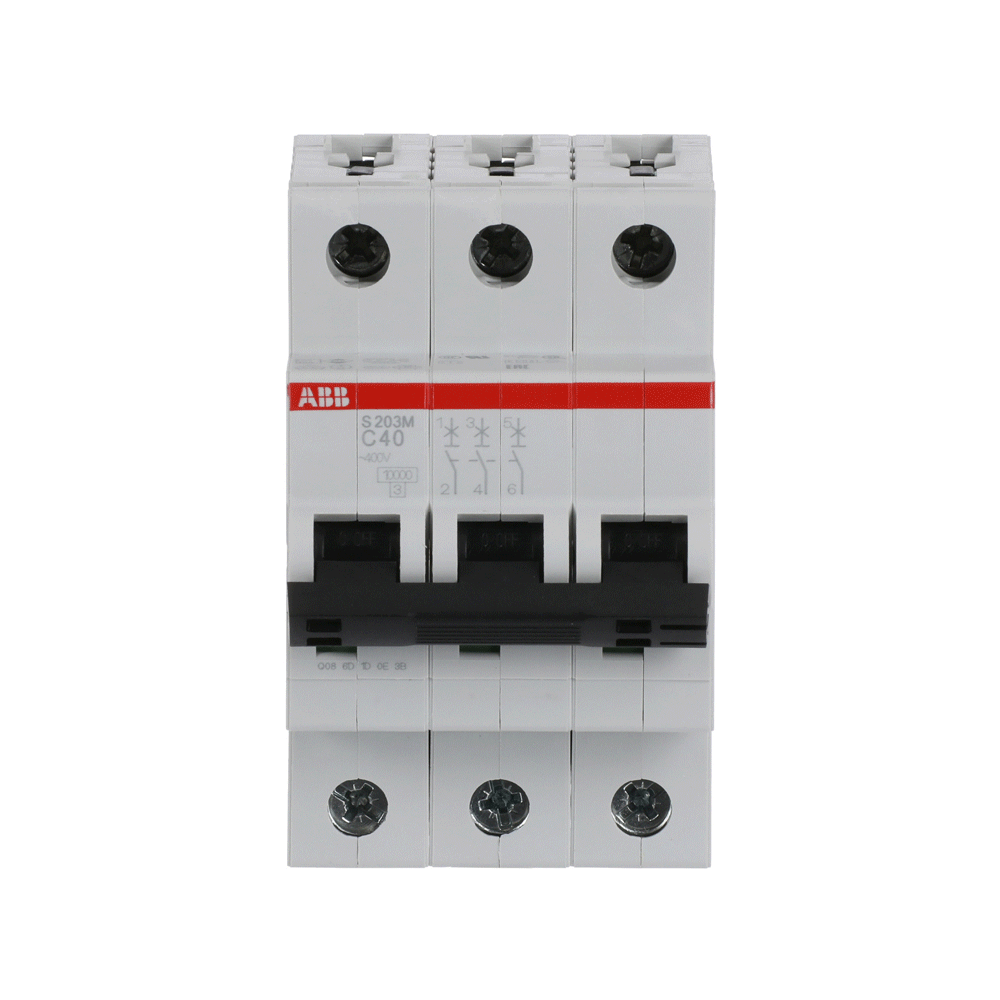

Miniature Circuit Breaker - S200M - 3P - 40 A - C

Manufacturer's No: S203MC40     Manufacturer: ABB

Availability Back Order

£89.78
  • 3-Pole, Type C 10kA, 40A miniature circuit breakers
  • Current limiting with delayed thermal tripping mechanism for overload protection
  • Electromechanic tripping mechanism for short circuit protection
  • Available in characteristics: B, C, D, K, Z
  • Configurations: 1P, 1P+N, 2P, 3P, 3P+N, 4P
  • Breaking capacities up to 10 kA at 230/400 V AC
  • Rated currents up to 63A
  • Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards
  • Suitable for residential, commercial, and industrial applications
  • Bottom-fitting auxiliary contact available to save 50% space


Product

Manufacturer Material ID -
S203MC40
Net Weight -
0.38kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

-
ABB

Mechanical data

Built-in depth -
69 Millimetre

General data

Release characteristic -
C
Degree of protection (IP) -
IP20
Additional equipment possible -
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
3
Number of protected poles -
3
Pollution degree -
3
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
25 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
15 kiloampere
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
C
Width in number of modular spacings -
3

Ambient conditions

Ambient temperature during operating -
-25 Degrees celsius

Electrical data

Current limiting class -
3
Over voltage category -
3
Power loss -
14.4 Watt
Rated current -
40 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated voltage -
400 Volt
Voltage type -
Other
ABB

Availability Back Order

£89.78
