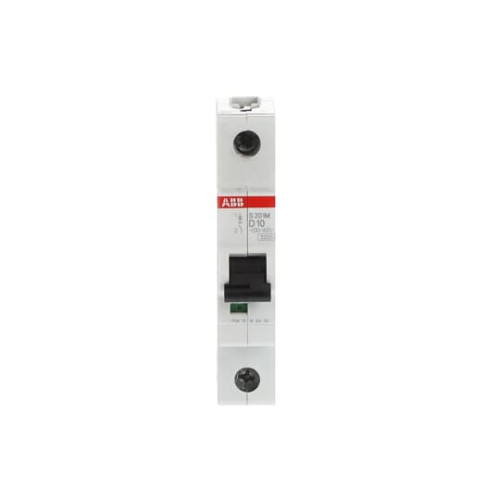

2CDS271001R0101

1-Pole, Type D 10kA, 10A

Manufacturer's No: S201MD10     Manufacturer: ABB
1-Pole, Type D 10kA, 10A

Availability In Stock

£23.41
  • Type: 1-Pole, Type D
  • Breaking Capacity: Up to 10kA at 230/400V AC
  • Rated Current: Up to 63A
  • Tripping Mechanisms: Delayed thermal for overload protection, Electromechanic for short circuit protection
  • Characteristics: B, C, D, K, Z
  • Configurations: 1P, 1P+N, 2P, 3P, 3P+N, 4P
  • Compliance: IEC/EN 60898-1 and IEC/EN 60947-2
  • Suitable for residential, commercial, and industrial applications
  • Space-saving design with bottom-fitting auxiliary contact option


Product

Manufacturer Material ID -
S201MD10
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

-
ABB
Built-in depth -
69 Millimetre
Release characteristic -
D
Degree of protection (IP) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
1
Number of protected poles -
1
Over voltage category -
3
Pollution degree -
3
Power loss -
1.6 Watt
Rated current -
10 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
15 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
15 kiloampere
Rated voltage -
230 Volt
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
D
Voltage type -
Other
Width in number of modular spacings -
1
ABB

Availability In Stock

£23.41
