2CMA100150R1000

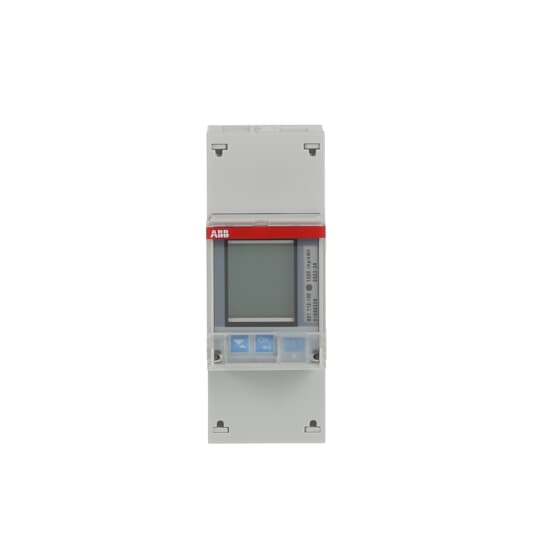

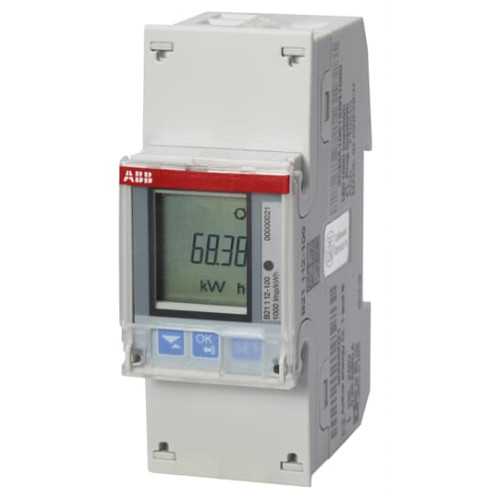

B21 112-100, Energy meter'Steel', Modbus RS485, Single-phase, 5 A

Manufacturer's No: B21 112-100     Manufacturer: ABB
B21 112-100, Energy meter'Steel', Modbus RS485, Single-phase, 5 A

Availability Back Order

£202.40
  • Model: B21 112-100
  • Energy Meter Type: Single-phase
  • Current Rating: 5 A
  • Communication: Modbus RS485
  • Display: Backlit for easy reading
  • Suitable for use in commercial or residential buildings
  • Compatible with 3 or 4 wire systems
  • Features 25 possible alarms and event logs
  • Direct connected for active energy measurement
  • RS-485 communication using Modbus RTU or EQ Bus

Read more

  • Accuracy Class: 1.0 (MID meters: Class B)
  • IEC and MID approved and verified


Product

Manufacturer Material ID -
B21 112-100
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
90283011
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
41113600

Technical Specification

-
ABB

General data

Tariff control -
UN
Degree of protection (NEMA) -
UN
Model -
Direct measurement
Suitable for -
Purchase
Type of indication -
Digital
Frequency -
50 Hertz
Degree of protection (IP) -
IP20
Type of interface -
Modbus
Energy type -
Effective power
Pulse rate -
1 Pulse constant
Accuracy class -
B
Calibrated -
Degree of protection (IP rating) -
IP20
Escapement mechanism -
Interface type -
Other
Number of positions total (counter) -
7
Pole type -
Single phase
Pulse output -
Electrical
Pulse type -
S0
Tariff type -
One-tariff
Type of indicator -
Digital
Type of meter -
Electronic
Width in number of modular spacings -
2

Electrical data

Nominal voltage (Un) L-L -
- Volt
Nominal voltage (Un) N-L -
220 Volt
Max. current (Imax) -
65 Ampere
Nominal current (In) -
65 Ampere
Power consumption -
0.414 Watt

Approval

Approval -
Measuring Instruments Directive

Mechanical data

Depth -
65 Millimetre
Height -
26.5 Millimetre
Mounting method -
DRA (DIN-rail adapter)
Width -
35 Millimetre
ABB

Availability Back Order

£202.40
