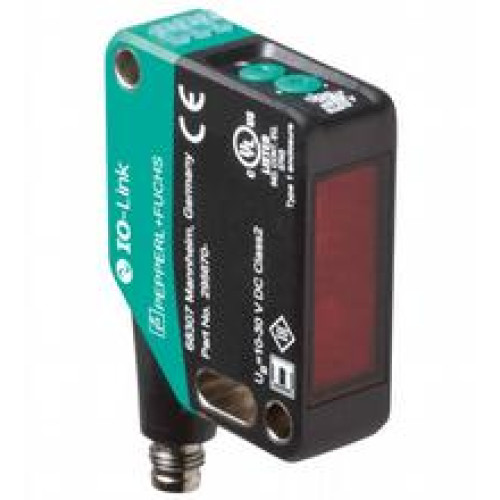

OMT550-R200-2EP-IO-V1

Distance sensor - Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-c

Manufacturer's No: 295670-100133     Manufacturer: Pepperl+Fuchs
Distance sensor - Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected..

Availability Back Order

£281.59
  • Light source: LED
  • Light type: Modulated visible red light
  • Signal output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link (via C/Q = pin 4)
  • Switching type: Default setting - C/Q Pin4: NPN normally open, PNP normally closed; IO-Link Q2 - Pin2: NPN normally open, PNP normally closed
  • Connection: 4-pin, M12 x 1 connector, 90° rotatable
  • Operating voltage: 10-30 V DC
  • Ambient temperature: 10-60 °C (50-140 °F)

Accessories



Product

Manufacturer Material ID -
295670-100133
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
90151000
Country of Origin -
SG
UNSPSC -
41111603
Pepperl+Fuchs

Availability Back Order

£281.59
