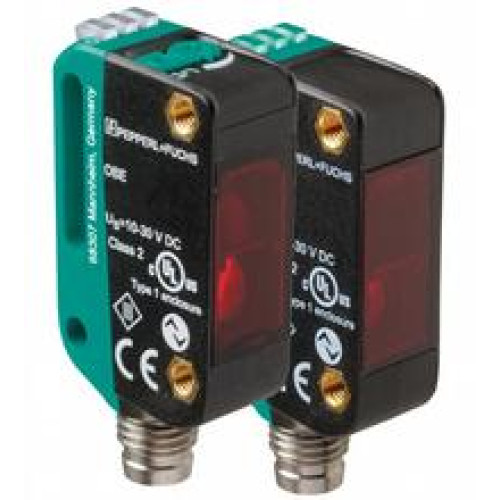

OBE20M-R100-S2EP-IO-V31-L

Thru-beam sensor - Effective detection range: 0 ... 20 m, Light source: laser diode, Light type: modulated visible red light, Sign

Manufacturer's No: 281004     Manufacturer: Pepperl+Fuchs
Thru-beam sensor - Effective detection range: 0 ... 20 m, Light source: laser diode, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, r..

Availability Back Order

£134.91
  • Detection range: 0 to 20 m
  • Light source: Laser diode emitting modulated visible red light
  • Signal output: 2 push-pull (4 in 1) outputs with short-circuit, reverse polarity, and overvoltage protection
  • Interface type: IO-Link via C/Q on pin 4
  • Switching type: Adjustable with default settings for NPN normally open/dark-on and PNP normally closed/light-on
  • Connection: M8 x 1 connector, 4-pin
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F)

Accessories



Product

Manufacturer Material ID -
281004
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

-
Pepperl+Fuchs
Pepperl+Fuchs

Availability Back Order

£134.91
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
