212426

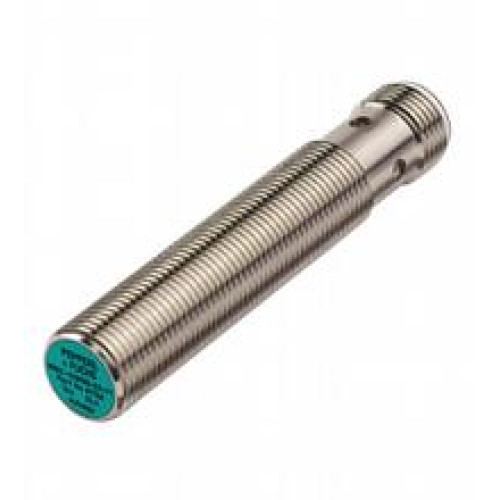

Inductive sensor NBB4-12GM50-E2-V1-3G-3D

Manufacturer's No: NBB4-12GM50-E2-V1-3G-3D     Manufacturer: Pepperl+Fuchs
Inductive sensor NBB4-12GM50-E2-V1-3G-3D

Availability Back Order

£73.30
  • Inductive sensor model: NBB4-12GM50-E2-V1-3G-3D
  • Rated operating distance: 4 mm
  • Installation: flush
  • Switching function: Normally open (NO)
  • Output type: PNP
  • Operating voltage: 10-30 V DC
  • Operating current: 0-150 mA


Product

Manufacturer Material ID -
NBB4-12GM50-E2-V1-3G-3D
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
8536 5019
UNSPSC -
41111926

Technical Specification

Coating housing -
UN
Switching frequency -
- Hertz
Number of semiconductor outputs with signalling function -
-
Number of contact energized outputs with signalling function -
-
Number of protected semiconductor outputs -
-
Number of protected contact energized outputs -
-
Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Max. output current at protected output -
- Milliampere
Supply voltage -
- Volt
Category according to EN 954-1 -
UN
Type of actuation -
UN
Type of interface -
UN
Width sensor -
- Millimetre
Height of sensor -
- Millimetre
Performance level acc. EN ISO 13849-1 -
UN
Interference resistance to magnetic fields -
UN
SIL according to IEC 61508 -
UN
Material housing -
Metal
Voltage type -
DC
Housing material -
Metal
Switching distance -
4 Millimetre
Type of electric connection -
Connector M12
Type of switching output -
PNP
Type of switch function -
Normally open contact
Construction type housing -
Cylinder, screw-thread
Mechanical mounting condition for sensor -
Concise
Diameter sensor -
12 Millimetre
Length of sensor -
49 Millimetre
Pepperl+Fuchs

Availability Back Order

£73.30
