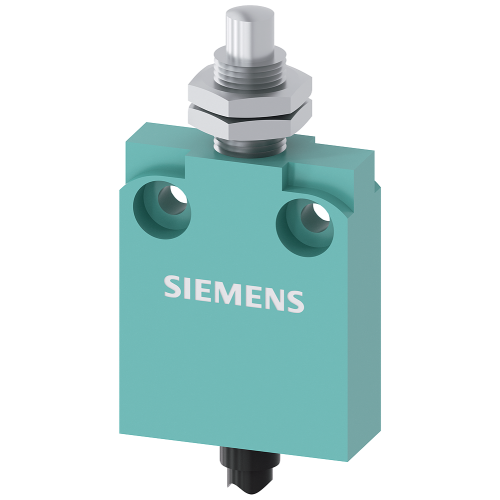

Metal plunger with central fixing (M12), 2m moulded cable (5x0.75mm2), with bottom cable exit - 1NO+1NC snap-action contact, 10A (AC15)

3SE54230CC211EA2

Metal plunger with central fixing (M12), 2m moulded cable (5x0.75mm2), with bottom cable exit - 1NO+1NC snap-action contact, 10A (AC15)

Produced by Siemens

Availability Back Order

Price - £59.33
Position switch in compact design 40 mm wide with connection cable 2 m Snap-action contacts 1 NO+1 NC Rounded plunger with central mounting
No alternatives available for this product.
Product
Manufacturer Material ID -
3SE5423-0CC21-1EA2
Net Weight -
0.32kg
Additional Product Information
Commodity Code -
85365080
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
YES
UNSPSC -
39122216
Technical Specification
Rated operation current Ie at AC-15, 230 V -
3 Ampere
Rated operation current Ie at DC-13, 230 V -
0.27 Ampere
Number of safety auxiliary contacts -
1
Rated operation current Ie at AC-15, 125 V -
6 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Width sensor -
40 Millimetre
Height of sensor -
16 Millimetre
Length of sensor -
60 Millimetre
Ambient temperature during operating -
-25 Degrees celsius
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
