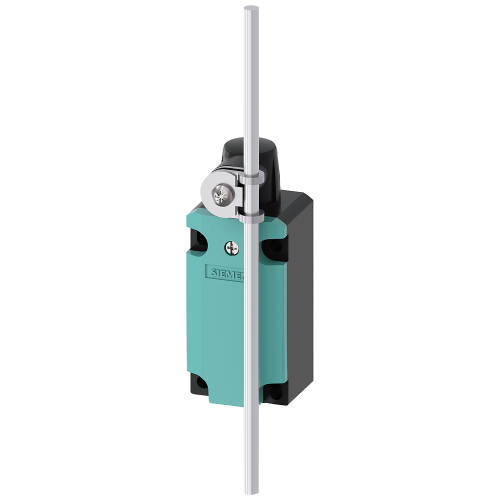

3SE51120CH80

Position switch, metal encl. 40 mm, EN50041, device connection

Manufacturer's No: 3SE5112-0CH80     Manufacturer: Siemens

Availability Back Order

£55.59
  • Position switch with metal enclosure (40 mm) according to EN 50041
  • Device connection: 1x (M20 x 1.5)
  • 1 NO/1 NC quick action contacts
  • Rotary actuator with adjustable right/left rotation
  • Rod lever made of aluminum, 200 mm long

Accessories

Component part

Product video
Product video


Product

Manufacturer Material ID -
3SE5112-0CH80
Net Weight -
0.37kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
YES
UNSPSC -
39122216

Technical Specification

-
Siemens
Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Diameter sensor -
- Millimetre
Material housing -
Metal
Degree of protection (IP) -
IP65
Type of interface -
None
Type of electric connection -
Cable entry metrical
Degree of protection (IP rating) -
IP65
Type of control element -
Actuating rod
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Lacquered
Construction type housing -
Cuboid
Degree of protection (NEMA) -
12
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
49.8 Millimetre
Housing material -
Metal
Interface type -
None
Length of sensor -
281 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
0
Rated operation current Ie at AC-15, 125 V -
6 Ampere
Rated operation current Ie at AC-15, 24 V -
6 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Switching function -
Quick-break switch
Type of interface for safety communication -
None
Width sensor -
40 Millimetre

Availability Back Order

£55.59
