3SE67143CA

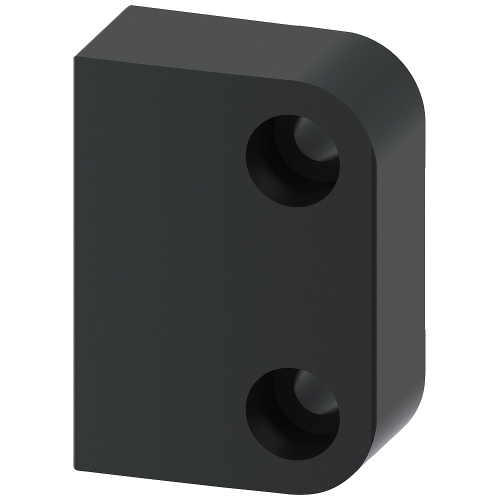

Solenoid, rectangular small 25 x 36 mm for magnetic switch 3SE66..-3CA0.

Manufacturer's No: 3SE6714-3CA     Manufacturer: Siemens
Solenoid, rectangular small 25 x 36 mm for magnetic switch 3SE66..-3CA0.

View 3D

Availability Back Order

£16.03
  • Type: Solenoid
  • Size: 26 x 36 mm
  • Compatibility: Magnetic switch 3SE66..-3CA0
  • Configuration: Solenoid and contact block on the same fixing level

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3SE6714-3CA
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85051990
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
YES
UNSPSC -
32141110

Technical Specification

-
Siemens

Electrical data

Voltage type -
UN
Max. output current at protected output -
- Milliampere
Min. output current -
- Milliampere
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Rated supply voltage at DC -
- Volt

General data

Coating housing -
UN
Number of semiconductor outputs with signalling function -
-
Number of contact energized outputs with signalling function -
-
Number of protected semiconductor outputs -
-
Number of protected contact energized outputs -
-
Type of electric connection -
UN
Type of switching output -
UN
Construction type housing -
UN
Mechanical mounting condition for sensor -
UN
Category according to EN 954-1 -
UN
Type of actuation -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP67
Performance level acc. EN ISO 13849-1 -
None
Alignment of the control element -
Roller cam straight
Degree of protection (IP rating) -
IP67

Mechanical data

Switching distance -
- Millimetre
Protected switch distance OFF -
- Millimetre
Protected switch distance ON -
- Millimetre
Diameter sensor -
- Millimetre
Material housing -
Plastic
Height of sensor -
36 Millimetre
Housing material -
Plastic
Length of sensor -
13 Millimetre
Width sensor -
26 Millimetre

Safety data

Type of interface for safety communication -
UN
Explosion safety category for gas -
None
Explosion safety category for dust -
None
SIL according to IEC 61508 -
None

Ambient conditions

Ambient temperature -
-25 Degrees celsius
Ambient temperature during operating -
-25 Degrees celsius

Availability Back Order

£16.03
