3SE66272CA04

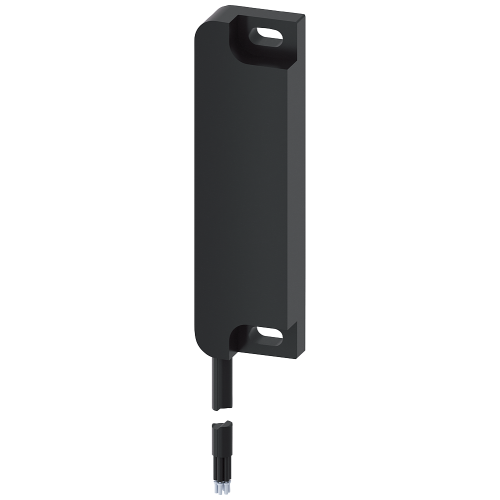

Magnetic switch contact block 25 x 88 mm, for door hinge r safety contacts 2 NC

Manufacturer's No: 3SE6627-2CA04     Manufacturer: Siemens
Magnetic switch contact block 25 x 88 mm, for door hinge r safety contacts 2 NC

View 3D

Availability Back Order

£85.99
  • Switch contact block dimensions: 25 x 88 mm
  • Designed for right-hinged doors
  • Safety contacts: 2 NC
  • Signaling contact: 1 NC
  • 3 m connection cable included
  • Compatible with solenoids: 3SE6714-2CA or 3SE6724-2CA (offset by 90°)

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3SE6627-2CA04
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Coating housing -
UN
Switching distance -
- Millimetre
Type of interface for safety communication -
UN
Type of switching output -
UN
Construction type housing -
UN
Max. output current at protected output -
- Milliampere
Min. output current -
- Milliampere
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Rated supply voltage at DC -
- Volt
Diameter sensor -
- Millimetre
Degree of protection (NEMA) -
UN
Material housing -
Plastic
Degree of protection (IP) -
IP67
Category according to EN 954-1 -
4
Performance level acc. EN ISO 13849-1 -
Level e
Voltage type -
DC
Housing material -
Plastic
Suitable for safety functions -
Ambient temperature -
-25 Degrees celsius
Number of semiconductor outputs with signalling function -
0
Number of contact energized outputs with signalling function -
1
Number of protected semiconductor outputs -
0
Number of protected contact energized outputs -
0
Type of electric connection -
Cable
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Protected switch distance OFF -
17 Millimetre
Protected switch distance ON -
7 Millimetre
Mechanical mounting condition for sensor -
Quasi-flat
Cross-/short circuit identification possible -
Type of actuation -
Magnet
Height of sensor -
25 Millimetre
Performance level acc. to EN ISO 13849-1 -
Level e
SIL according to IEC 61508 -
3
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Degree of protection (IP rating) -
IP67
Length of sensor -
13 Millimetre
Number of contacts as normally closed contact -
3
Number of contacts as normally open contact -
0
Width sensor -
88 Millimetre

Availability Back Order

£85.99
