3SE66173CA01

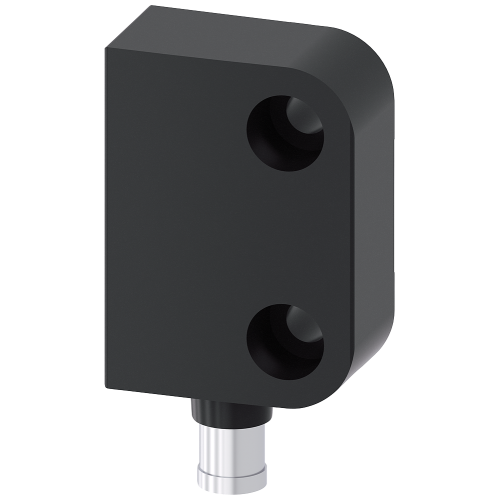

Magnetically operated switch contact block, rectangular small 26 x 36 mm, for door hinge left

Manufacturer's No: 3SE6617-3CA01     Manufacturer: Siemens
Magnetically operated switch contact block, rectangular small 26 x 36 mm, for door hinge left

View 3D

Availability Back Order

£83.53
  • Switch contact block size: 26 x 36 mm, rectangular, designed for left-hinged doors
  • Contacts: 2 normally closed safety contacts, 1 normally closed signaling contact (31-32)
  • Latching connection plug: 8 mm, 6-pole
  • Does not include LED indicator
  • Compatible with solenoids: 3SE6714-3CA or 3SE6724-3CA (offset by 90°)

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3SE6617-3CA01
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
YES
UNSPSC -
39122216

Technical Specification

-
Siemens

General data

Coating housing -
UN
Type of switching output -
UN
Construction type housing -
UN
Category according to EN 954-1 -
UN
Degree of protection (NEMA) -
UN
Number of semiconductor outputs with signalling function -
0
Number of contact energized outputs with signalling function -
1
Number of protected semiconductor outputs -
0
Number of protected contact energized outputs -
0
Type of electric connection -
Other
Mechanical mounting condition for sensor -
Quasi-flat
Cross-/short circuit identification possible -
Degree of protection (IP) -
IP67
Type of actuation -
Magnet
Performance level acc. EN ISO 13849-1 -
Level e
Alignment of the control element -
Roller cam straight
Degree of protection (IP rating) -
IP67
Number of contacts as normally closed contact -
3
Number of contacts as normally open contact -
0

Mechanical data

Switching distance -
- Millimetre
Diameter sensor -
- Millimetre
Material housing -
Plastic
Protected switch distance OFF -
15 Millimetre
Protected switch distance ON -
5 Millimetre
Height of sensor -
36 Millimetre
Length of sensor -
13 Millimetre
Width sensor -
26 Millimetre

Safety data

Type of interface for safety communication -
UN
Suitable for safety functions -
Explosion safety category for gas -
None
Explosion safety category for dust -
None
SIL according to IEC 61508 -
3

Electrical data

Max. output current at protected output -
- Milliampere
Min. output current -
- Milliampere
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Rated supply voltage at DC -
- Volt
Voltage type -
DC

Ambient conditions

Ambient temperature -
-25 Degrees celsius
Ambient temperature during operating -
-25 Degrees celsius
