3SE66144CA01

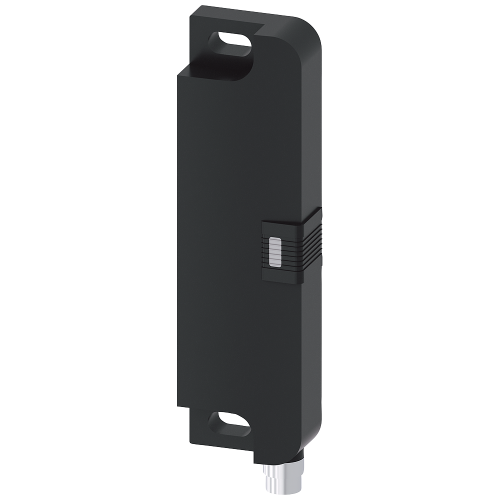

Magnet switch Contact block 25 x 88 mm, for door hinge on the left Contact elements: Safety contacts

Manufacturer's No: 3SE6614-4CA01     Manufacturer: Siemens
Magnet switch Contact block 25 x 88 mm, for door hinge on the left Contact elements: Safety contacts

View 3D

Availability Back Order

£93.36
  • Switch contact block dimensions: 25 x 88 mm
  • Designed for left-hinged doors
  • Safety contacts: 2 NC
  • Equipped with M8 plug
  • 4-pole configuration
  • Features combi connection screw/latching connection
  • Includes LED indicator
  • Compatible with solenoids: 3SE6714-2CA or 3SE6724-2CA (offset by 90°)

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3SE6614-4CA01
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Coating housing -
UN
Switching distance -
- Millimetre
Type of interface for safety communication -
UN
Type of switching output -
UN
Construction type housing -
UN
Max. output current at protected output -
- Milliampere
Min. output current -
- Milliampere
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Rated supply voltage at DC -
- Volt
Diameter sensor -
- Millimetre
Degree of protection (NEMA) -
UN
Material housing -
Plastic
Degree of protection (IP) -
IP67
Category according to EN 954-1 -
4
Performance level acc. EN ISO 13849-1 -
Level e
Voltage type -
DC
Housing material -
Plastic
Suitable for safety functions -
Ambient temperature -
-25 Degrees celsius
Number of semiconductor outputs with signalling function -
0
Number of contact energized outputs with signalling function -
0
Number of protected semiconductor outputs -
0
Number of protected contact energized outputs -
0
Type of electric connection -
Connector M8
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Protected switch distance OFF -
17 Millimetre
Protected switch distance ON -
7 Millimetre
Mechanical mounting condition for sensor -
Quasi-flat
Cross-/short circuit identification possible -
Type of actuation -
Magnet
Height of sensor -
25 Millimetre
Performance level acc. to EN ISO 13849-1 -
Level e
SIL according to IEC 61508 -
3
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Degree of protection (IP rating) -
IP67
Length of sensor -
13 Millimetre
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
0
Width sensor -
88 Millimetre
