3SE66042BA

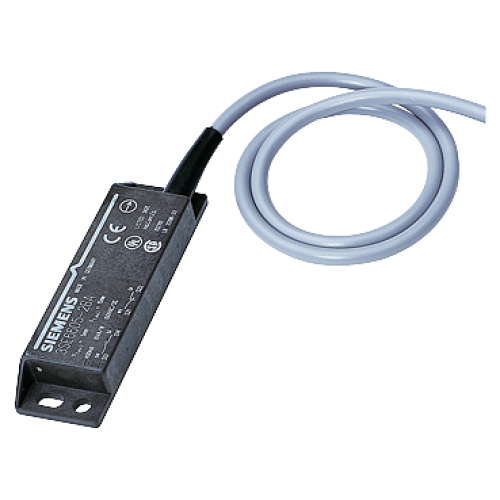

Magnetic switch contact block, 25x88 mm, 2 NC, connection cable 3 m LIYY 4x0.25 mm2

Manufacturer's No: 3SE6604-2BA     Manufacturer: Siemens
Magnetic switch contact block, 25x88 mm, 2 NC, connection cable 3 m LIYY 4x0.25 mm2

View 3D

Availability In Stock

£73.09
  • Switch contact block size: 25 x 88 mm
  • 2 Normally Closed (NC) contacts
  • Connection cable length: 3 meters
  • Cable type: LIYY 4 x 0.25 mm²
  • Compatible with solenoid 3SE6704-2BA
  • Option for increased operating distance with solenoid 3SE6701-2BA

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3SE6604-2BA
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

-
Siemens
Coating housing -
UN
Switching distance -
- Millimetre
Number of semiconductor outputs with signalling function -
-
Number of contact energized outputs with signalling function -
-
Number of protected semiconductor outputs -
-
Number of protected contact energized outputs -
-
Type of interface for safety communication -
UN
Max. output current at protected output -
- Milliampere
Min. output current -
- Milliampere
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Rated supply voltage at DC -
- Volt
Diameter sensor -
- Millimetre
Degree of protection (NEMA) -
UN
Material housing -
Plastic
Degree of protection (IP) -
IP67
Category according to EN 954-1 -
4
Performance level acc. EN ISO 13849-1 -
Level e
Voltage type -
AC/DC
Suitable for safety functions -
Ambient temperature -
-25 Degrees celsius
Type of electric connection -
Cable
Type of switching output -
Dry reed contact
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Protected switch distance OFF -
15 Millimetre
Protected switch distance ON -
5 Millimetre
Mechanical mounting condition for sensor -
Not flat
Type of actuation -
Magnet
Height of sensor -
13 Millimetre
Performance level acc. to EN ISO 13849-1 -
Level e
SIL according to IEC 61508 -
3
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Housing material -
Plastic
Length of sensor -
88 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
0
Width sensor -
25 Millimetre

Availability In Stock

£73.09
