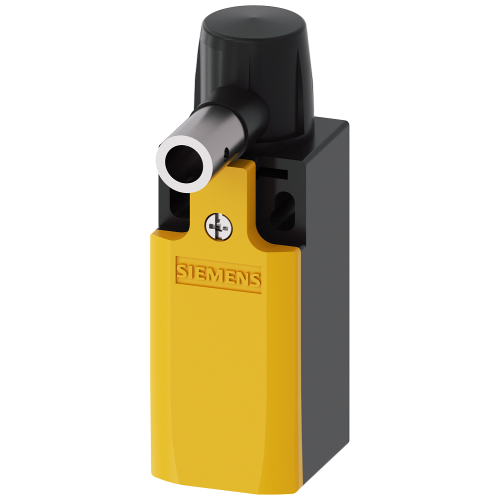

Hinge switch Metal enclosure, 31 mm, EN 50047 Device connection 1 x (M20 x 1.5) Snap-action contacts

3SE52120LU21

Hinge switch Metal enclosure, 31 mm, EN 50047 Device connection 1 x (M20 x 1.5) Snap-action contacts

Produced by Siemens

Availability Back Order

Price - £44.59
Hinge switch Metal enclosure, 31 mm, EN 50047 Device connection 1 x (M20 x 1.5) Snap-action contacts 2 NC/1 NO integrated, with hollow shaft Diameter = 8 mm Actuating angle 10°
Product
Manufacturer Material ID -
3SE5212-0LU21
Net Weight -
0.24kg
Additional Product Information
Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216
Technical Specification
Number of safety auxiliary contacts -
2
Rated operation current Ie at AC-15, 24 V -
6 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Width sensor -
31 Millimetre
Height of sensor -
52.8 Millimetre
Length of sensor -
92 Millimetre
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
1
Degree of protection (NEMA) -
12
