3SE29243AA20

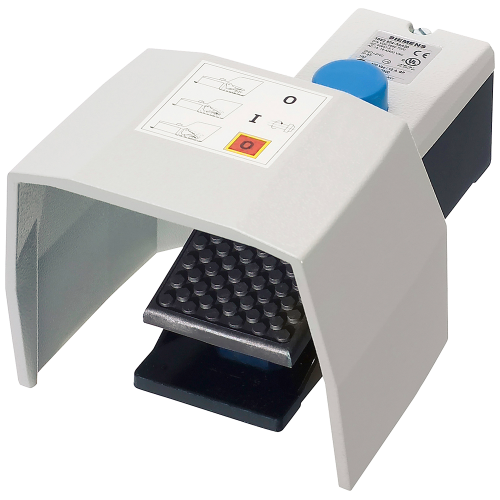

Safety momentary-contact foot switch 1-pedal, 2 NO + 2 NC, unlatched with protective cover, M20x1.5

Manufacturer's No: 3SE2924-3AA20     Manufacturer: Siemens

Availability Back Order

£261.65
  • Safety foot switch with 1 pedal
  • Protective cover for added safety
  • IP65 protection rating for dust and water resistance
  • Interlock function for enhanced safety
  • 2 Normally Open (NO) + 2 Normally Closed (NC) contacts
  • NO contact closes as pushbutton
  • NC contact opens with simultaneous latching for safety function
  • Cable entry size: M20 x 1.5


Product

Manufacturer Material ID -
3SE2924-3AA20
Net Weight -
1.58kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

-
Siemens
Type of command -
UN
Number of contacts as change-over contact -
-
Degree of protection (NEMA) -
UN
Number of switch levels -
2
Degree of protection (IP) -
IP65
Colour -
Grey
Degree of protection (IP rating) -
IP65
Depth -
265 Millimetre
Height -
138 Millimetre
Material -
Metal
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
2
Number of switch positions -
2
Rated operation current Ie at AC-15, 230 V -
16 Ampere
Suitable for safety functions -
Width -
156 Millimetre
With interlocking -
With protection hood -

Availability Back Order

£261.65
