3SK12111BB40

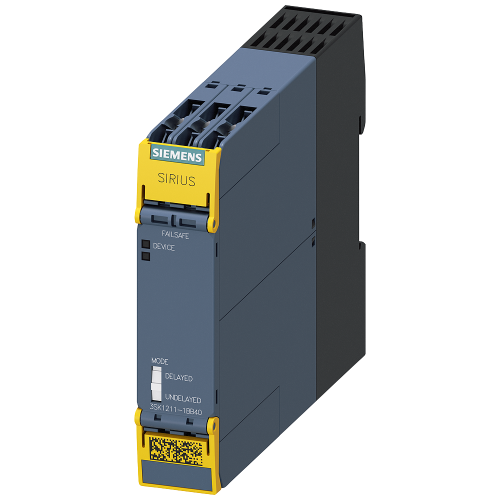

SIRIUS safety relay output expansion 4RO with relay enabling circuits

Manufacturer's No: 3SK1211-1BB40     Manufacturer: Siemens

Availability In Stock

£130.36
  • Safety relay for output expansion
  • 4 Normally Open (NO) relay enabling circuits
  • 1 Normally Closed (NC) relay signaling circuit
  • Operating voltage: 24 V DC
  • Screw terminal connection

Accessories

Product video
Question and Answer (Q&A video)
Product video
Presentation video


Product

Manufacturer Material ID -
3SK1211-1BB40
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85364190
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

-
Siemens
Release-delay -
- Second
Number of outputs, safety related, undelayed, semiconductors -
-
Number of outputs, safety related, delayed, semiconductors -
-
Number of outputs, signalling function, undelayed, semiconductors -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Type of safety acc. IEC 61496-1 -
UN
With approval for T‹V -
Category according to EN 954-1 -
UN
Evaluation inputs -
UN
Rated control supply voltage Us at DC -
24 Volt
Performance level acc. EN ISO 13849-1 -
Level e
Stop category acc. IEC 60204 -
0
Width -
22.5 Millimetre
Model -
Other
Height -
100 Millimetre
Depth -
121.6 Millimetre
With approval according to UL -
Number of outputs, safety related, undelayed, with contact -
0
Number of outputs, safety related, delayed, with contact -
0
Number of outputs, signalling function, undelayed, with contact -
0
Number of outputs, signalling function, delayed, with contact -
0
Number of outputs, signalling function, delayed, semiconductors -
0
Type of electric connection -
Screw connection
Rated control supply voltage at DC -
24 Volt
Performance level acc. to EN ISO 13849-1 -
Level e
Stop category acc. to IEC 60204 -
0
Voltage type for actuating -
DC
SIL according to IEC 61508 -
3
With approval for TÜV -

Availability In Stock

£130.36
