3RK31111AA10

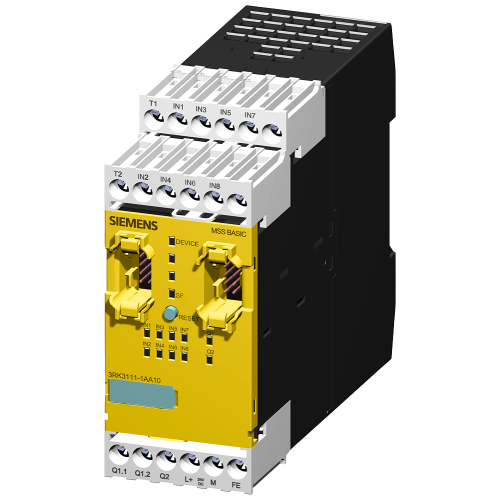

SIRIUS, central unit 3RK3 basic for Modular Safety System 3RK3 4/8 F-DI

Manufacturer's No: 3RK3111-1AA10     Manufacturer: Siemens
SIRIUS, central unit 3RK3 basic for Modular Safety System 3RK3 4/8 F-DI

View 3D

Availability Back Order

£896.34
  • Central unit 3RK3 Basic for modular Safety system
  • Supports 4/8 F-DI, 1 F-RO, 1 F-DO inputs
  • Parameterizable using Safety ES software
  • 24 V DC power supply
  • Compact design with 45 mm width
  • Achieves up to SIL3 (IEC 61508) safety level
  • Meets Performance Level E (ISO 13849-1) requirements
Product video
Product video


Product

Manufacturer Material ID -
3RK3111-1AA10
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Release-delay -
- Second
Number of outputs, safety related, delayed, with contact -
-
Number of outputs, safety related, delayed, semiconductors -
-
Number of outputs, signalling function, undelayed, with contact -
-
Number of outputs, signalling function, delayed, with contact -
-
Number of outputs, signalling function, undelayed, semiconductors -
-
Number of outputs, signalling function, delayed, semiconductors -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Type of safety acc. IEC 61496-1 -
UN
With approval for T‹V -
Evaluation inputs -
UN
Rated control supply voltage Us at DC -
24 Volt
Category according to EN 954-1 -
4
Performance level acc. EN ISO 13849-1 -
Level e
Stop category acc. IEC 60204 -
0 + 1
Model -
Basic device
Rated control supply voltage at DC -
24 Volt
Performance level acc. to EN ISO 13849-1 -
Level e
Voltage type for actuating -
DC
SIL according to IEC 61508 -
3
Depth -
124 Millimetre
Height -
111 Millimetre
Number of outputs, safety related, undelayed, semiconductors -
1
Number of outputs, safety related, undelayed, with contact -
0
Stop category acc. to IEC 60204 -
0 + 1
Suitable for monitoring of emergency-stop circuits -
Suitable for monitoring of optoelectronic protection equipment -
Suitable for monitoring of position switches -
Suitable for monitoring of proximity switches -
Suitable for monitoring of valves -
Type of electric connection -
Screw connection
Width -
45 Millimetre
With approval according to UL -
With approval for TÜV -
With detachable clamps -

Availability Back Order

£896.34
