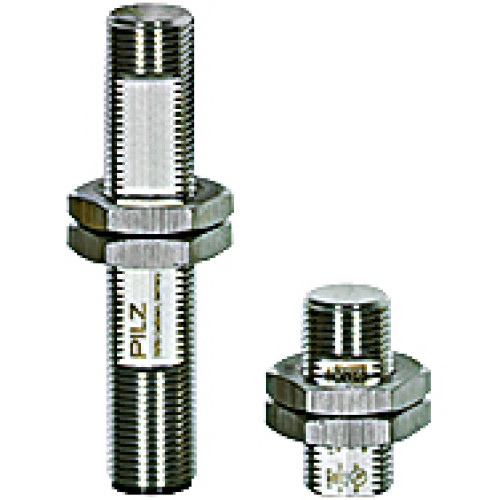

Safety sensor for position monitoring of moveable guards in accordance with EN 60947-5-3 2 n/o

Manufacturer's No: PSEN ma1.3-22M12/8/PSENma1.3-08/IX/VA/1U     Manufacturer: Pilz
Safety sensor for position monitoring of moveable guards in accordance with EN 60947-5-3 2 n/o

Availability Back Order

£84.65
  • Safety sensor for position monitoring of movable guards
  • Compliant with EN 60947-5-3
  • 2 normally open (n/o) contacts, 1 auxiliary n/o contact
  • 8-pin M12 male connector
  • Suitable for applications up to SIL 3/PL e/Cat. 4
  • Cylindrical design with M12 dimensions
  • IP69 rated for dust and water resistance
  • Package includes 1 sensor with M12 actuator
  • Operating distance of 8mm
  • Compatible with PSEN ix1

Read more

  • Stainless steel housing

Mandatory additional product

Accessories



Product

Manufacturer Material ID -
PSEN ma1.3-22M12/8/PSENma1.3-08/IX/VA/1U
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
UNSPSC -
39122200

Technical Specification

-
Pilz
Housing material -
Stainless steel
Suitable for safety functions -
Number of semiconductor outputs with signalling function -
1
Number of protected contact energized outputs -
2
Type of electric connection -
Connector M12
Type of switching output -
Dry reed contact
Construction type housing -
Cylinder, screw-thread
Protected switch distance OFF -
8 Millimetre
Protected switch distance ON -
26 Millimetre
Mechanical mounting condition for sensor -
Not flat
Type of actuation -
Magnet
Diameter sensor -
12 Millimetre
Performance level acc. to EN ISO 13849-1 -
Level e
Ambient temperature -
-25 Degrees celsius
Degree of protection (IP rating) -
IP67
Height of sensor -
12 Millimetre
Length of sensor -
61 Millimetre
Switching distance -
0.5 Millimetre
Voltage type -
DC
Width sensor -
12 Millimetre
