540200

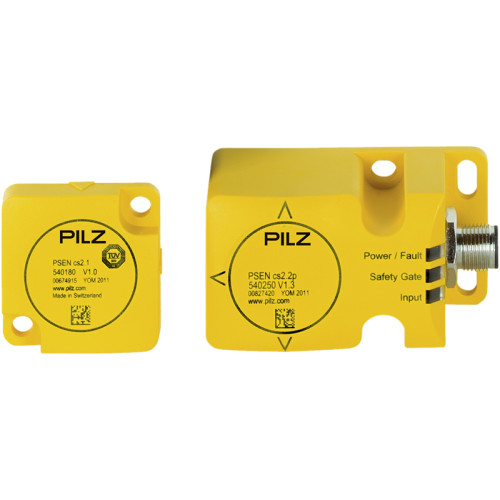

RFiD safety switch 2 safe semiconductor outputs, 8-pin M12 connector, four directions of actuation IP67, operating distance 21 mm,

Manufacturer's No: PSEN cs2.2p / PSEN cs2.1 1 Unit     Manufacturer: Pilz
RFiD safety switch 2 safe semiconductor outputs, 8-pin M12 connector, four directions of actuation IP67, operating distance 21 mm, Sao = 15 mm, Sar = 40 mm, PU = 1 piece unique, fully coded switch wit

Availability Back Order

£184.57
  • RFiD safety switch with 2 safe SC outputs
  • 8-pin M12 male connector
  • 4 actuation directions supported
  • Fully coded switch with actuator
  • IP67 rated for dust and water resistance
  • Switching distance: 21mm
  • Actuation distance (Sao): 15mm
  • Actuation range (Sar): 40mm
  • Package includes 1 piece

Accessories



Product

Manufacturer Material ID -
PSEN cs2.2p / PSEN cs2.1 1 Unit
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

-
Pilz
Suitable for safety functions -
Type of interface for safety communication -
None
Type of electric connection -
Connector M12
Interface type -
None
Ambient temperature during operating -
-25 Degrees celsius
Height of sensor -
75 Millimetre
Length of sensor -
40 Millimetre
Width sensor -
40 Millimetre
Thumbnail of product picture -
Medien_800/Pictures_800/540200_800.jpg
Pilz

Availability Back Order

£184.57
